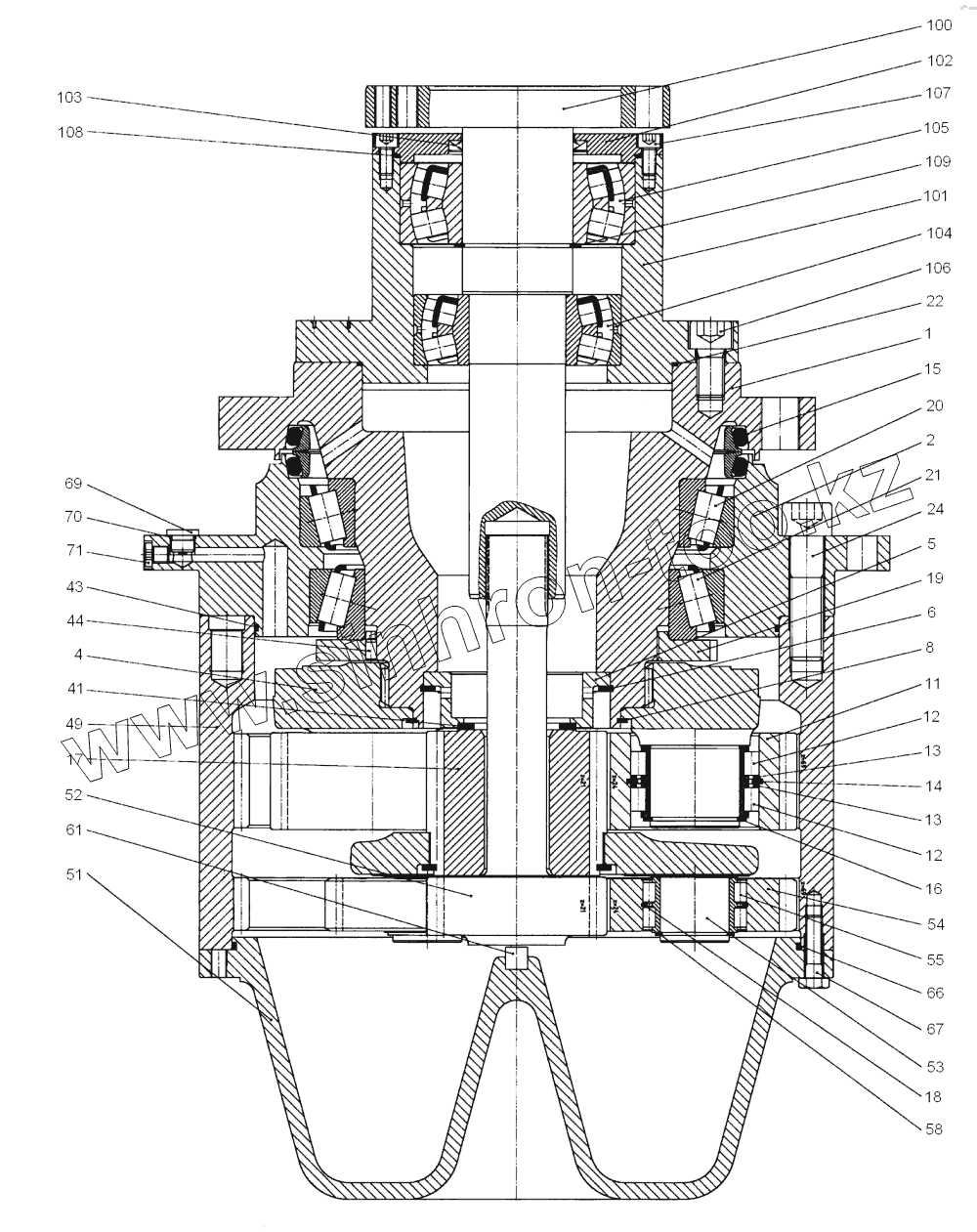

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000S. 951056556 Planetary gear
/13.gif)
1
2
4
5
6
8
11
12
12
13
13
14
15
16
17
18
19
20
21
22
24
41
43
44
49
51
52
53
54
55
58
61
66
67
69
70
71
100
101
102
103
104
105
106
107
108
109
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 951056556 | 951056556 | Planetary gear | |
| 1 | 951078232 | Spindle | |
| 2 | 951075515 | Supporting washer | |
| 4 | 951057221 | Planetary carrier | |
| 5 | 951040741 | Вearing ring | |
| 6 | 951065519 | Circlip | |
| 8 | 931820135 | Circlip | |
| 11 | 951057228 | Planetaryring | |
| 12 | 951095935 | Cylinder roller bearing | |
| 13 | 951002187 | Stop washer | |
| 14 | 49901332 | Circlip | |
| 15 | 951026092 | Sealing glid ring | |
| 16 | 936031179 | Circlip ring | |
| 17 | 951066015 | Sun gear | |
| 18 | 936007772 | Circlip | |
| 19 | 951089113 | Shaft nut | |
| 20 | 951036107 | Taper roller bearing | |
| 21 | 951036108 | Taper roller bearing | |
| 22 | 932211829 | Shaft sealing ring | |
| 24 | 937938496 | Cylinder screw | |
| 41 | 935115911 | Housing disc | |
| 43 | 951053020 | O-ring | |
| 44 | 951098225 | Plain pin | |
| 49 | 951029614 | Hollow wheel | |
| 51 | 951012918 | Cover | |
| 52 | 951066273 | Sun gear shaft | |
| 53 | 951057222 | Planetary carrier | |
| 54 | 951057429 | Planetary wheel | |
| 55 | 951095936 | Cylinder roller bearing | |
| 58 | 936003190 | Circlip ring | |
| 61 | 951095929 | Cylindrical roller | |
| 66 | 951053019 | O-ring | |
| 67 | 500056 | Hex. screw | |
| 69 | 951084722 | Plug screw | |
| 70 | 951053020 | O-ring | |
| 71 | 951084723 | Plug screw | |
| 100 | 951088842 | Shaft | |
| 101 | 951040732 | Вearing cover | |
| 102 | 951012919 | Cover | |
| 103 | 951062517 | Radial seal | |
| 104 | 935235922 | Pendulum roller bearing | |
| 105 | 935235923 | Pendulum roller bearing | |
| 106 | 937932599 | Cylinder screw | |
| 107 | 49900361 | Screw | |
| 108 | 951053023 | Sealing | |
| 109 | 951065520 | Circlip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
