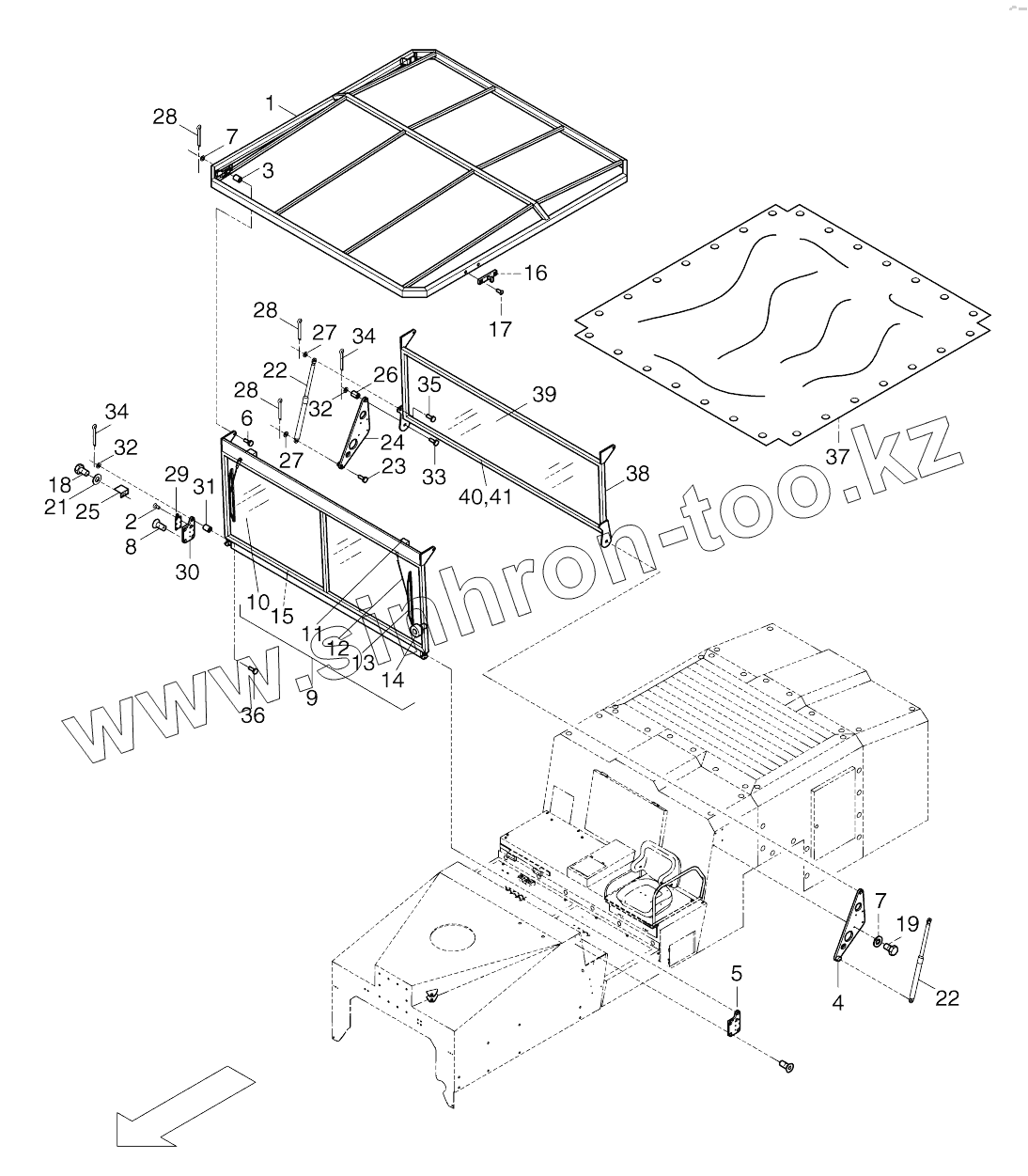

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000S. 500-20110 Canopy
/56.gif)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
22
23
24
25
26
27
27
28
28
28
29
30
31
32
32
33
34
34
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 500200105 | Roof console | |
| 2 | 938366595 | Screw | |
| 3 | 930136728 | Bushing | |
| 4 | 500200118 | Stop, back left | |
| 5 | 500200111 | Stop, front left | |
| 6 | 500200110 | Bolt | |
| 7 | 600008 | Washer | |
| 8 | 939475275 | Screw | |
| 9 | 500200104 | Pane, compl. | |
| 10 | 500200107 | Disc | |
| 11 | 49100692 | Wiper motor | |
| 12 | 49100028 | Wiper arm | |
| 13 | 49302624 | Set wiper blade | |
| 14 | 903645580 | Buffer | |
| 15 | 930280161 | Seal profile | |
| 16 | 49302609 | Twist lock | |
| 17 | 930129508 | Rivet | |
| 18 | 500018 | Screw | |
| 19 | 500048 | Screw | |
| 21 | 600006 | Washer | |
| 22 | 965080265 | Hydraulic cylinder | |
| 22.01 | 932278303 | Sealing kit | |
| 23 | 500200140 | Bolt | |
| 24 | 500200135 | Stop, back right | |
| 25 | 500200143 | Stop angle | |
| 26 | 930229362 | Friction bearing with collar | |
| 27 | 600011 | Washer | |
| 28 | 936790490 | Split pin | |
| 29 | 960406051 | Locking bar | |
| 30 | 500200138 | Stop, front right | |
| 31 | 930136733 | Bushing | |
| 32 | 600014 | Washer | |
| 33 | 500200114 | Bolt | |
| 34 | 936790545 | Split pin | |
| 35 | 500200141 | Bolt | |
| 36 | 500200142 | Bolt | |
| 37 | 500100300 | Canopy | |
| 38 | 500200153 | Roof support, rear compl. | |
| 39 | 500200148 | Rear pan | |
| 40 | 49300105 | Clamping profile | |
| 41 | 49300106 | Seal profile |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
