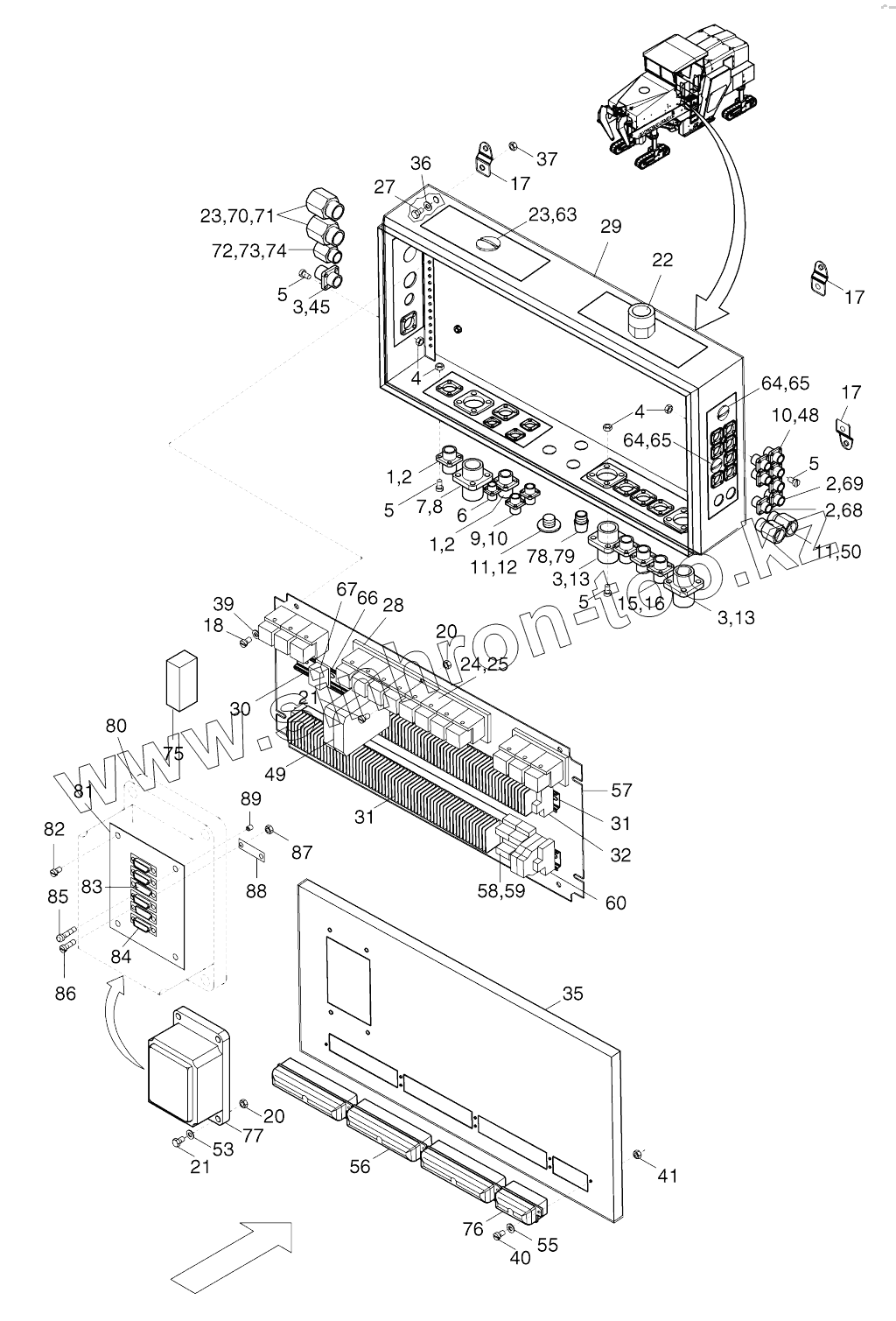

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000S. 500-08150 Clamp box, compl.
/41.gif)
1
1
2
2
2
2
3
3
3
4
4
5
5
5
5
6
7
8
9
10
10
11
11
12
13
13
15
16
17
17
17
18
20
20
21
21
22
23
23
24
25
27
28
29
30
31
31
32
35
36
37
39
40
41
45
48
49
50
53
55
56
57
58
59
60
63
64
64
65
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 977479708 | CA02-COM | |
| 2 | 977416564 | Sealing | |
| 3 | 977416567 | Sealing | |
| 4 | 938191010 | Nut | |
| 5 | 533002 | Screw | |
| 6 | 977479709 | Plug | |
| 7 | 977479710 | Вuilt-in socket | |
| 8 | 977416570 | Sealing | |
| 9 | 977479704 | CA02-COM | |
| 10 | 977416562 | Sealing | |
| 11 | 977416516 | Nut | |
| 12 | 977416096 | Vent cap | |
| 13 | 977479712 | CA02-COM | |
| 15 | 977419713 | CA02-COM | |
| 16 | 977416565 | Sealing | |
| 17 | 977451049 | Holder | |
| 18 | 533025 | Screw | |
| 19 | 570003 | Nut | |
| 20 | 570004 | Hex. nut | |
| 21 | 936730591 | Cylinder screw | |
| 22 | 977415464 | Hose screwing | |
| 23 | 977416529 | Counter nut | |
| 24 | 977730406 | Relay | |
| 25 | 977729010 | Relay socket | |
| 27 | 500018 | Screw | |
| 28 | 500080206 | Relay holder | |
| 29 | 500080204 | Clamp box, compl. | |
| 30 | 977455534 | Terminal rail | |
| 31 | 977425026 | Serial terminal | |
| 32 | 977425012 | End bracket | |
| 35 | 977425025 | Sealing cover | |
| 36 | 977416603 | Lower washer | |
| 37 | 570005 | Nut | |
| 39 | 939570509 | Washer | |
| 40 | 533008 | Screw | |
| 41 | 938191012 | Nut | |
| 45 | 977479705 | CA02-COM | |
| 48 | 977479711 | CA02-COM | |
| 49 | 978016201 | Electronic module | |
| 50 | 977417116 | Cable screwing | |
| 53 | 977416601 | Lower washer | |
| 54 | 936730271 | Cylinder screw | |
| 55 | 977416602 | Lower washer | |
| 56 | 977455747 | Fuse box | |
| 57 | 500080205 | Mounting plate | |
| 58 | 49100560 | Relay | |
| 59 | 49100561 | Relay holder | |
| 60 | 977425035 | Terminal | |
| 62 | 500080330 | Gateway | |
| 63 | 977416059 | Вlind plug | |
| 64 | 977416041 | Вlind plug | |
| 65 | 977416511 | Counter nut | |
| 66 | 977425034 | Mounting plate | |
| 67 | 978067009 | Transformator | |
| 68 | 977479743 | CA02-COM | |
| 69 | 977479742 | CA02-COM | |
| 70 | 977415429 | SEM-quick connection | |
| 71 | 977416449 | Sealing washer | |
| 72 | 977415421 | SEM-quick connection | |
| 73 | 977416441 | Sealing washer | |
| 74 | 977416511 | Counter nut | |
| 75 | 977704661 | Flasher unit | |
| 76 | 977455747 | Fuse box | |
| 77 | 500080290 | PCD interface | |
| 78 | 977477089 | Metal hood | |
| 79 | 977385109 | Protection covering | |
| 80 | 500080309 | Mounting housing | |
| 81 | 500080289 | 1nterface plate | |
| 82 | 936750109 | Flat head cap screw | |
| 83 | 500080291 | PCD interface | |
| 84 | 500080292 | PCD interface | |
| 85 | 977478240 | Stop screw | |
| 86 | 936750113 | Screw | |
| 87 | 938191010 | Nut | |
| 88 | 500080293 | Cover plate | |
| 89 | 977478243 | Distance piece |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
