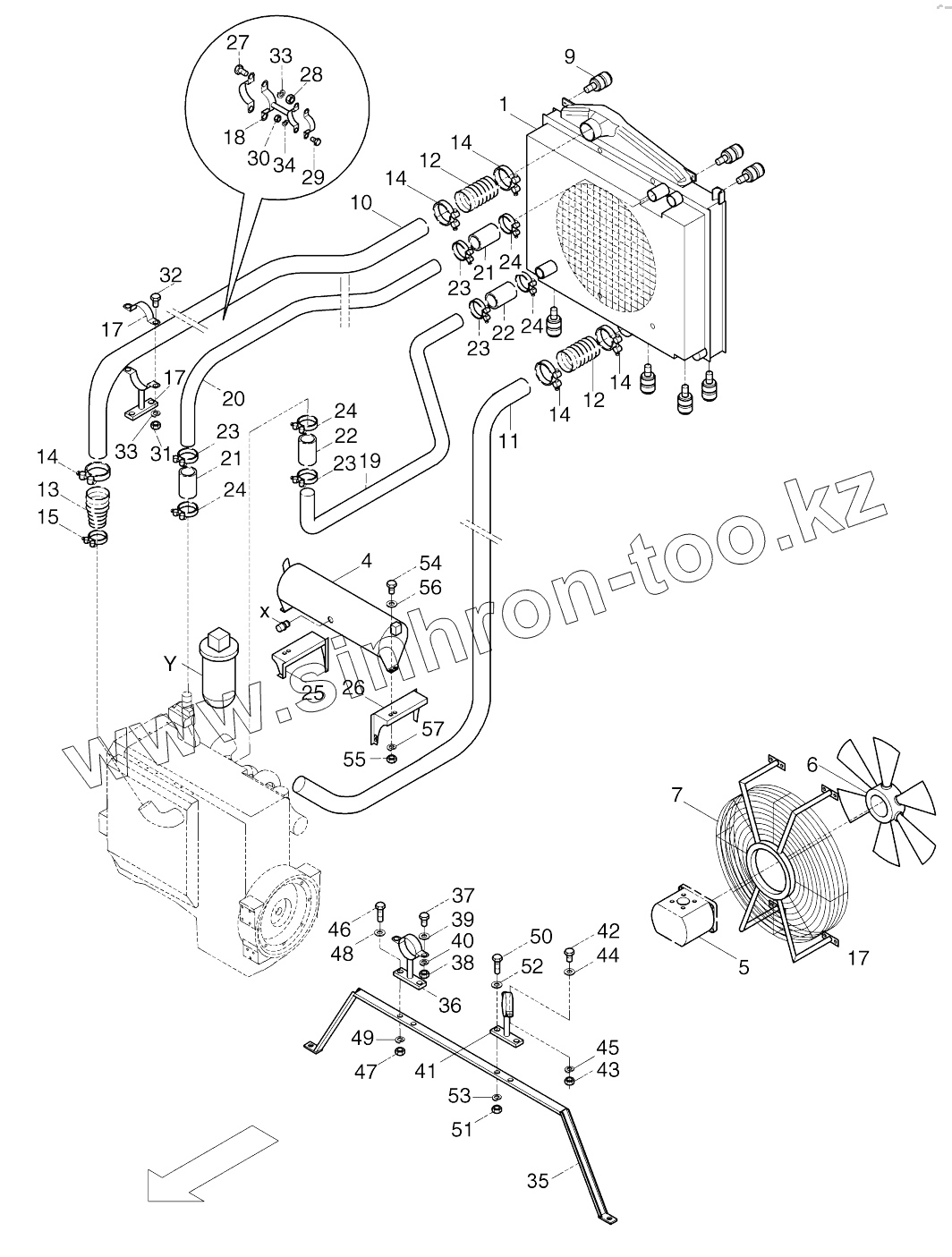

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000S. 500-06120C Cooler
/26.gif)
1
4
5
6
7
9
10
11
12
12
13
14
14
14
14
14
15
17
17
17
18
19
20
21
21
22
22
23
23
23
23
24
24
24
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
X
Y
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 950585301 | 3-circuit cooler | |
| 4 | 950599341 | Expansion tank | |
| 5 | 950594123 | Hydraulic motor | |
| 5.01 | 966534207 | Sealing kit | |
| 6 | 950594119 | Fan | |
| 7 | 950594124 | Protective grating | |
| 9 | 950594126 | Rubber buffer | |
| 10 | 500160114 | Air inlet pipe Engine | |
| 11 | 500160112 | Air inlet pipe cooler | |
| 12 | 930429151 | Silicon sleeve | |
| 13 | 930429154 | Silicon reducer sleeve | |
| 14 | 930349093 | Clip | |
| 15 | 930349094 | Clip | |
| 16 | 500160142 | Holder | |
| 17 | 500060147 | Holder for air inlet pipe engine | |
| 18 | 500160125 | Holder between water- and air- pipe | |
| 19 | 500160113 | Water feed pipe engine | |
| 20 | 500160111 | Water feed pipe cooler | |
| 21 | 930429152 | Silicon reducer sleeve | |
| 22 | 930429153 | Silicon reducer sleeve | |
| 23 | 930349095 | Clip | |
| 24 | 930349097 | Clip | |
| 25 | 500160132 | Support, right | |
| 26 | 500160131 | Support, left | |
| 27 | 500028 | Screw | |
| 28 | 570006 | Nut | |
| 29 | 500053 | Screw | |
| 30 | 570005 | Nut | |
| 31 | 570006 | Nut | |
| 32 | 500028 | Screw | |
| 33 | 704130 | Spring washer | |
| 34 | 49900161 | Screw retention | |
| 35 | 500010162 | Support | |
| 36 | 500060145 | Tube holder | |
| 37 | 500028 | Screw | |
| 38 | 570006 | Nut | |
| 39 | 704130 | Spring washer | |
| 40 | 600008 | Washer | |
| 41 | 500160127 | Holder waterpipe | |
| 42 | 500053 | Screw | |
| 43 | 570005 | Nut | |
| 44 | 600006 | Washer | |
| 45 | 49900161 | Screw retention | |
| 46 | 500029 | Screw | |
| 47 | 570006 | Nut | |
| 48 | 600008 | Washer | |
| 49 | 704130 | Spring washer | |
| 50 | 500029 | Screw | |
| 51 | 570006 | Nut | |
| 52 | 600008 | Washer | |
| 53 | 704130 | Spring washer | |
| 54 | 500021 | Screw | |
| 55 | 570005 | Nut | |
| 56 | 600006 | Washer | |
| 57 | 49900161 | Screw retention | |
| X | 930540715 | Sensor | |
| Y | 964152662 | Water filter |
