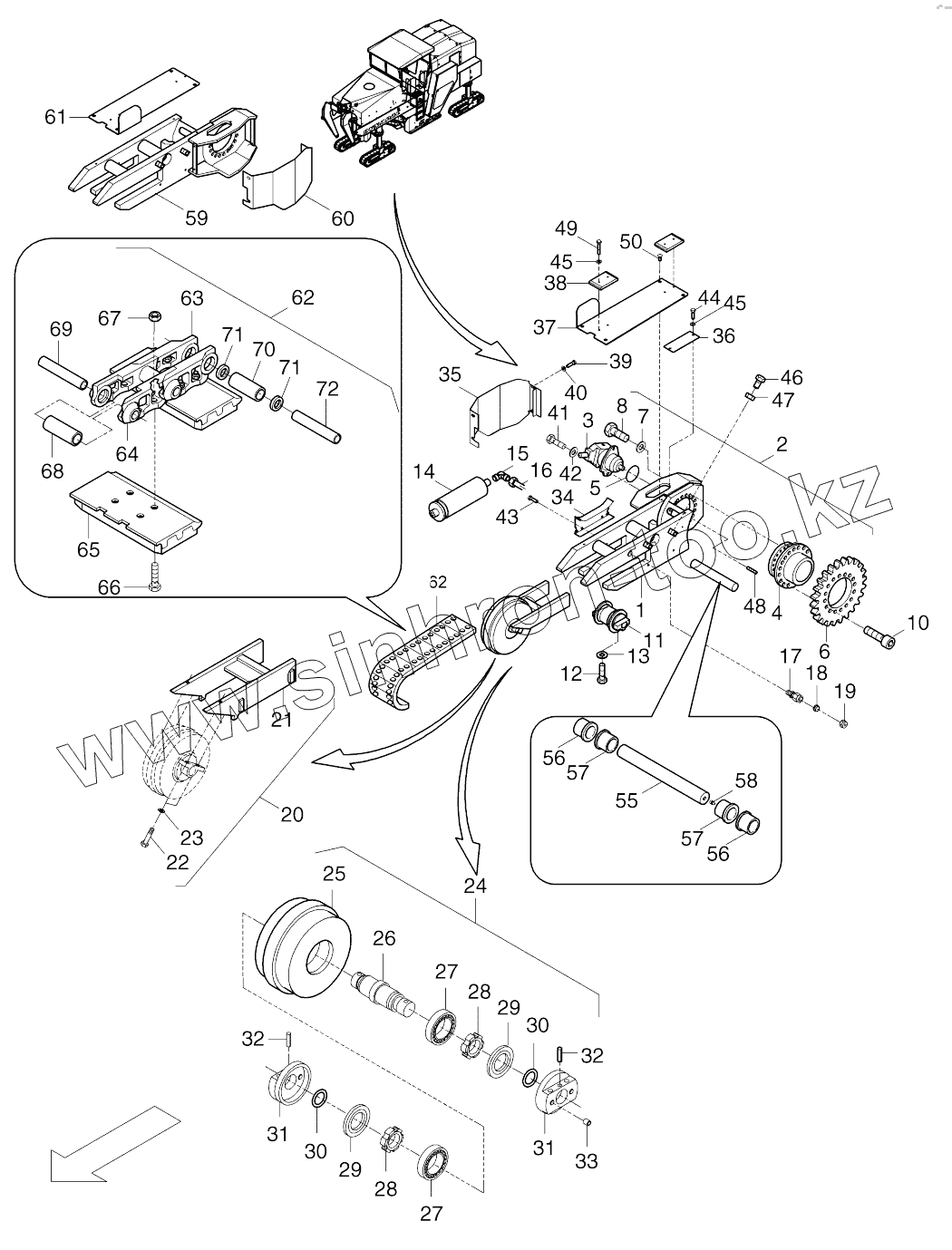

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000S. 500-05210 Track group
/23.gif)
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
29
30
30
31
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
55
56
56
57
57
58
59
60
61
62
62
63
64
65
66
67
68
69
70
71
71
72
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 500053200 | Track frame, left | |
| 2 | 500050300 | Track drive, compl. | |
| 3 | 966025362 | Adjust. motor | |
| 4 | 951020924 | Drive gear box | |
| 5 | 951053015 | O-ring | |
| 6 | 500050301 | Sprocket wheel | |
| 7 | 939515040 | Locking element | |
| 8 | 947706 | Hex. screw | |
| 10 | 937934496 | Screw | |
| 11 | 952701595 | Roller | |
| 12 | 938111727 | Hex. screw | |
| 13 | 936905026 | Spring washer | |
| 14 | 952643626 | Tensioner | |
| 15 | 961136208 | Swivel nut elbow | |
| 16 | 755172506 | Lubrication line | |
| 17 | 961131154 | Straight screwing | |
| 18 | 932702328 | Sealing | |
| 19 | 881171447 | Grease nipple | |
| 20 | 500150133 | Idler guide | |
| 21 | 500050701 | Guide | |
| 22 | 500196 | Screw | |
| 23 | 936905020 | Spring washer | |
| 24 | 500150132 | Idler, compl. | |
| 25 | 500150101 | Idler | |
| 26 | 755172607 | Axle | |
| 27 | 935021490 | Taper roller bearing | |
| 28 | 939759913 | Slotted round nut | |
| 29 | 932786410 | Sealing | |
| 30 | 932211617 | O-ring | |
| 31 | 755172609 | Cap | |
| 32 | 931501330 | Clamping sleeve, heavy | |
| 33 | 937860060 | Plug screw | |
| 34 | 500050800 | Hose guide | |
| 35 | 500150123 | Cover, left | |
| 36 | 500051100 | Cover plate | |
| 37 | 500150129 | Slide guide, left | |
| 38 | 500050102 | Glide plate | |
| 39 | 500051 | Hex. screw | |
| 40 | 939130014 | Washer | |
| 41 | 500123 | Hex. screw | |
| 42 | 600011 | Washer | |
| 43 | 938150772 | Hex. screw | |
| 44 | 500048 | Screw | |
| 45 | 600008 | Washer | |
| 46 | 938166084 | Hex. screw | |
| 47 | 570016 | Hex. nut | |
| 48 | 937976810 | Threaded pin | |
| 49 | 500029 | Screw | |
| 50 | 939470272 | Screw | |
| 55 | 500056001 | Axle | |
| 56 | 500140102 | Clamping bushing | |
| 57 | 930136843 | Collar bushing | |
| 58 | 935511210 | Grease nipple | |
| 59 | 500150106 | Track frame, right | |
| 60 | 500150121 | Hex. nut | |
| 61 | 500150128 | Slide guide, right | |
| 62 | 952665991 | Track chain, compl. | |
| 63 | 952691527 | Chain link, right | |
| 64 | 952691528 | Chain link, left | |
| 65 | 952613031 | Bottom plate | |
| 66 | 952761138 | Hex. screw | |
| 67 | 952813121 | Hex. nut | |
| 68 | 952691419 | Chain bushing | |
| 69 | 952691418 | Chain bolt | |
| 70 | 952644881 | End bushing | |
| 71 | 952774361 | End disc | |
| 72 | 952633000 | End bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
