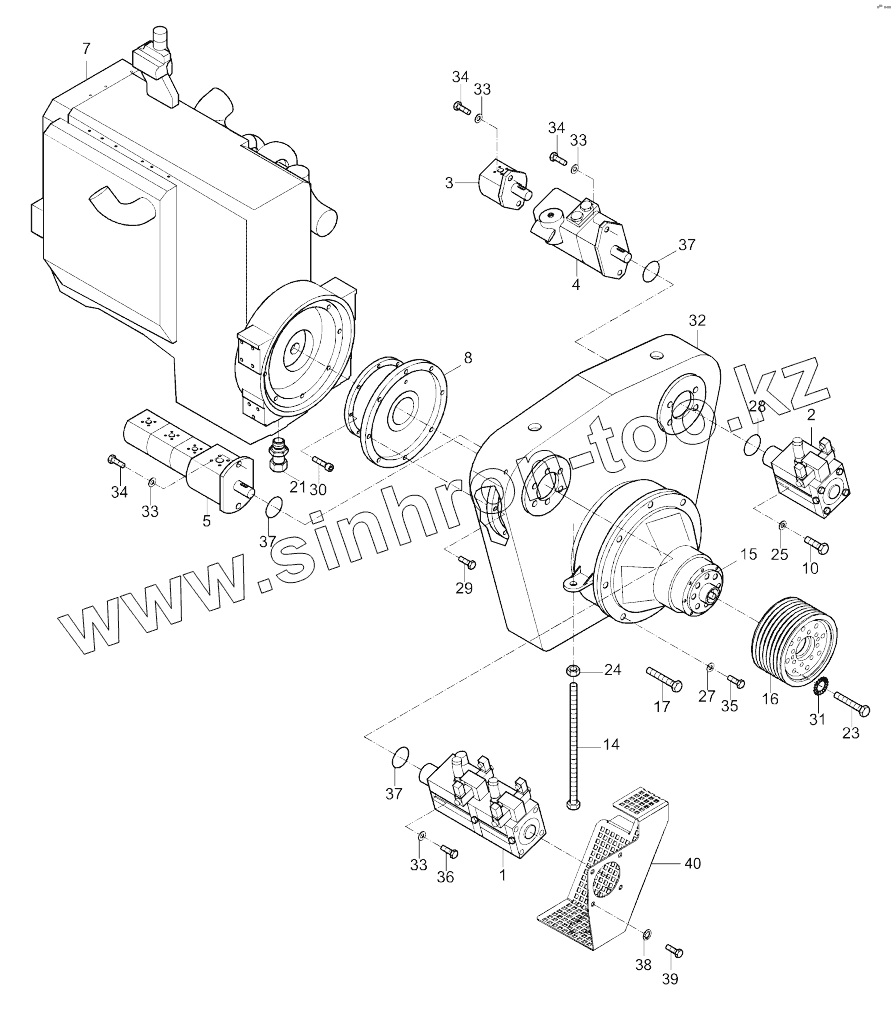

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-06120B Drive unit
/37.gif)
1
2
3
4
5
7
8
10
14
15
16
17
21
23
24
25
27
28
29
30
31
32
33
33
33
33
34
34
34
35
36
37
37
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 504160101 | 504160101 | Drive unit | |
| 967536861 | 967536861 | Seal kit | |
| 967536842 | 967536842 | Seal kit | |
| 1 | 967045551 | Axial pump | |
| 2 | 967008102 | Axial pump | |
| 3 | 967089008 | Gear pump | |
| 4 | 967005516 | Adjustable pump | |
| 5 | 967190160 | Hydraulic pump | |
| 7 | 966390005 | Engine | |
| 8 | 950838210 | Switching clutch | |
| 10 | 938150976 | Hex. screw | |
| 14 | 500160137 | Supporting | |
| 15 | 933538303 | Clutch | |
| 16 | 504020172 | Pulley | |
| 17 | 938970447 | Cylinder screw | |
| 21 | 961353022 | Straight double-ended union | |
| 23 | 938170769 | Hex. screw | |
| 24 | 570016 | Hex. nut | |
| 25 | 939010413 | Disc | |
| 27 | 600008 | Washer | |
| 28 | 932211778 | O-ring | |
| 29 | 939780420 | Hex. screw | |
| 30 | 939780419 | Cylinder screw | |
| 31 | 49901809 | Screw retention | |
| 32 | 951058552 | Split gear boх | |
| 33 | 939515032 | Lock disc | |
| 34 | 500193 | Screw | |
| 35 | 500234 | Screw | |
| 36 | 500037 | Hex. screw | |
| 37 | 932218258 | O-ring | |
| 38 | 939515029 | Lock disc | |
| 39 | 500043 | Hex. screw | |
| 40 | 500210700 | Protection plate |
