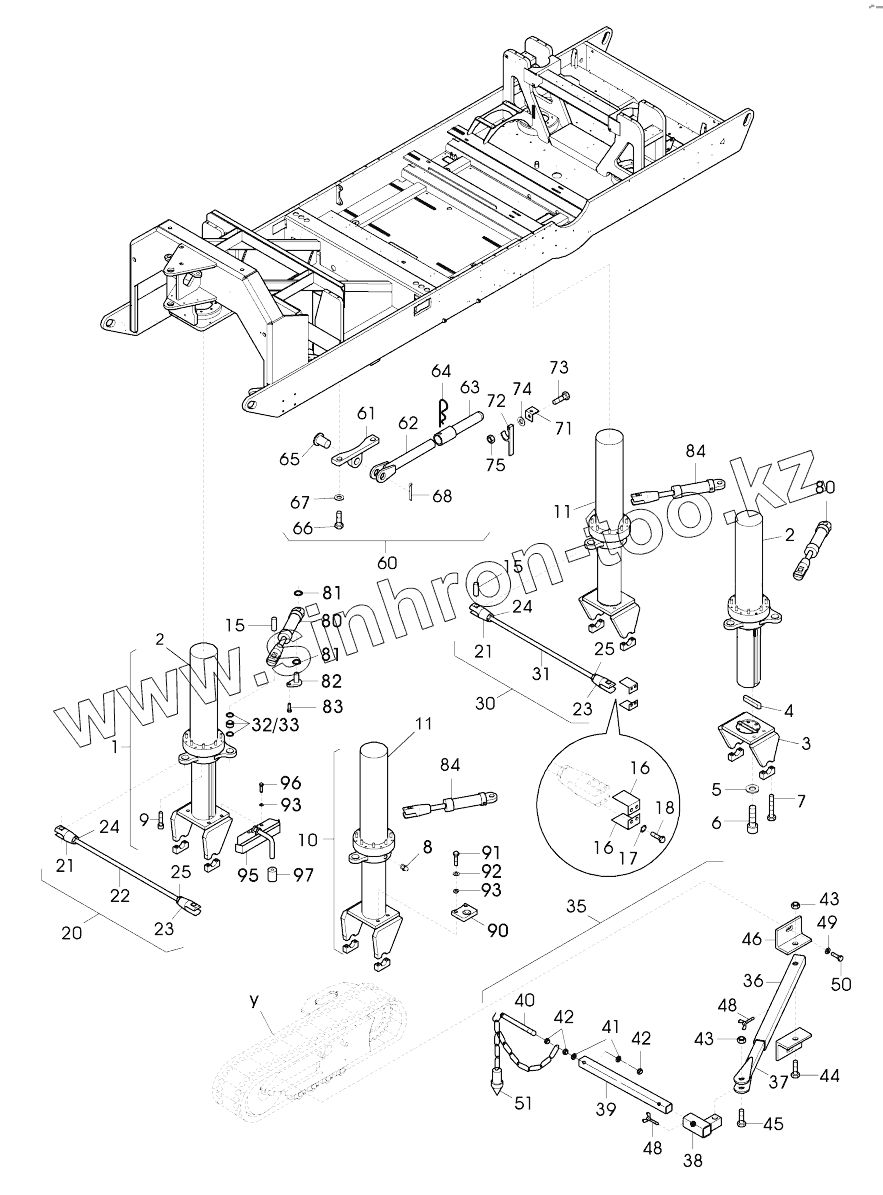

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-04110A Steering, compl.
/33.gif)
1
2
2
3
4
5
6
7
8
9
10
11
11
15
15
16
16
17
18
20
21
21
22
23
23
24
24
25
25
30
31
32
33
35
36
37
38
39
40
41
42
42
43
43
44
45
46
48
48
49
50
51
60
61
62
63
64
65
66
67
68
71
72
73
74
75
80
80
81
81
82
83
84
84
90
91
92
93
93
95
96
97
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 504040000 | 504040000 | Steering | |
| 500-05110 | 500-05110 | Track group | |
| 977415578 | 977415578 | Cable screwing | |
| 977415577 | 977415577 | Cable screwing | |
| 977365414 | 977365414 | Cable | |
| 977478202 | 977478202 | Pin contact | |
| 977478244 | 977478244 | Single wire sealing | |
| 977418052 | 977418052 | Rubber sleeve | |
| 977477050 | 977477050 | Tab connector | |
| 965531563 | 965531563 | Seal kit | |
| 965172938 | 965172938 | Cylinder with sensor | |
| 932785697 | 932785697 | Sealing kit | |
| 1 | 504040122 | Chassis leg, compl. right | |
| 2 | 965172920 | Chassis leg | |
| 3 | 504040124 | Chassis leg support | |
| 4 | 504040107 | Feather key | |
| 5 | 49901830 | Locking washer | |
| 6 | 937939494 | Screw | |
| 7 | 938111943 | Hex. screw | |
| 8 | 935512155 | Grease nipple | |
| 9 | 937932604 | Screw | |
| 10 | 504040121 | Chassis leg, compl. left | |
| 11 | 965172921 | Chassis leg | |
| 15 | 500140116 | Bolt | |
| 16 | 500140117 | Safety plate | |
| 17 | 49900161 | Screw retention | |
| 18 | 500053 | Screw | |
| 20 | 500140112 | Crosstie, compl. | |
| 21 | 500140114 | Fork head LH-threaded | |
| 22 | 500040116 | Rod, front | |
| 23 | 500140115 | Fork head RH-threaded | |
| 24 | 937182239 | Hex. nut left threaded | |
| 25 | 937181239 | Hex. nut | |
| 30 | 500140113 | Crosstie, compl. | |
| 31 | 500040119 | Rod, rear | |
| 32 | 935112540 | Hinge bearing | |
| 33 | 931810060 | Circlip | |
| 35 | 500040133 | Direction indicator, compl. | |
| 36 | 500040127 | Telescopic tube outside | |
| 37 | 500040128 | Teleskopic tube, innerside | |
| 38 | 500040129 | Guide | |
| 39 | 500040130 | Support lever | |
| 40 | 500040131 | Chain holder | |
| 41 | 939130012 | Washer | |
| 42 | 570006 | Nut | |
| 43 | 938481012 | Safety nut | |
| 44 | 938111728 | Hex. screw | |
| 45 | 500082 | Screw M16x70 | |
| 46 | 500040126 | Angle | |
| 48 | 528040 | Wing screw | |
| 49 | 939130014 | Washer | |
| 50 | 500193 | Screw | |
| 51 | 500040147 | 1ndicator | |
| 60 | 504040129 | Safety support, compl. | |
| 61 | 504040113 | Supporting block | |
| 62 | 504040130 | Support rod | |
| 63 | 504040131 | Sopport rod extension | |
| 64 | 930205012 | Spring pin | |
| 65 | 990020218 | Bolt | |
| 66 | 500194 | Screw | |
| 67 | 939130014 | Washer | |
| 68 | 630019 | Split pin | |
| 71 | 500040146 | Angle | |
| 72 | 504040134 | Support holder | |
| 73 | 500197 | Hex. screw | |
| 74 | 939130014 | Washer | |
| 75 | 938780018 | Hex. nut | |
| 80 | 965172903 | Cylinder | |
| 81 | 938590030 | Disc | |
| 82 | 500040125 | Bolt for steering | |
| 83 | 500028 | Screw | |
| 84 | 504080402 | Steering cylinder | |
| 90 | 500040140 | Support plate | |
| 91 | 500037 | Hex. screw | |
| 92 | 600009 | Washer | |
| 93 | 49900032 | Screw retention | |
| 95 | 500040156 | Guide plate | |
| 96 | 938111494 | Hex. screw | |
| 97 | 392400054 | Hose |
