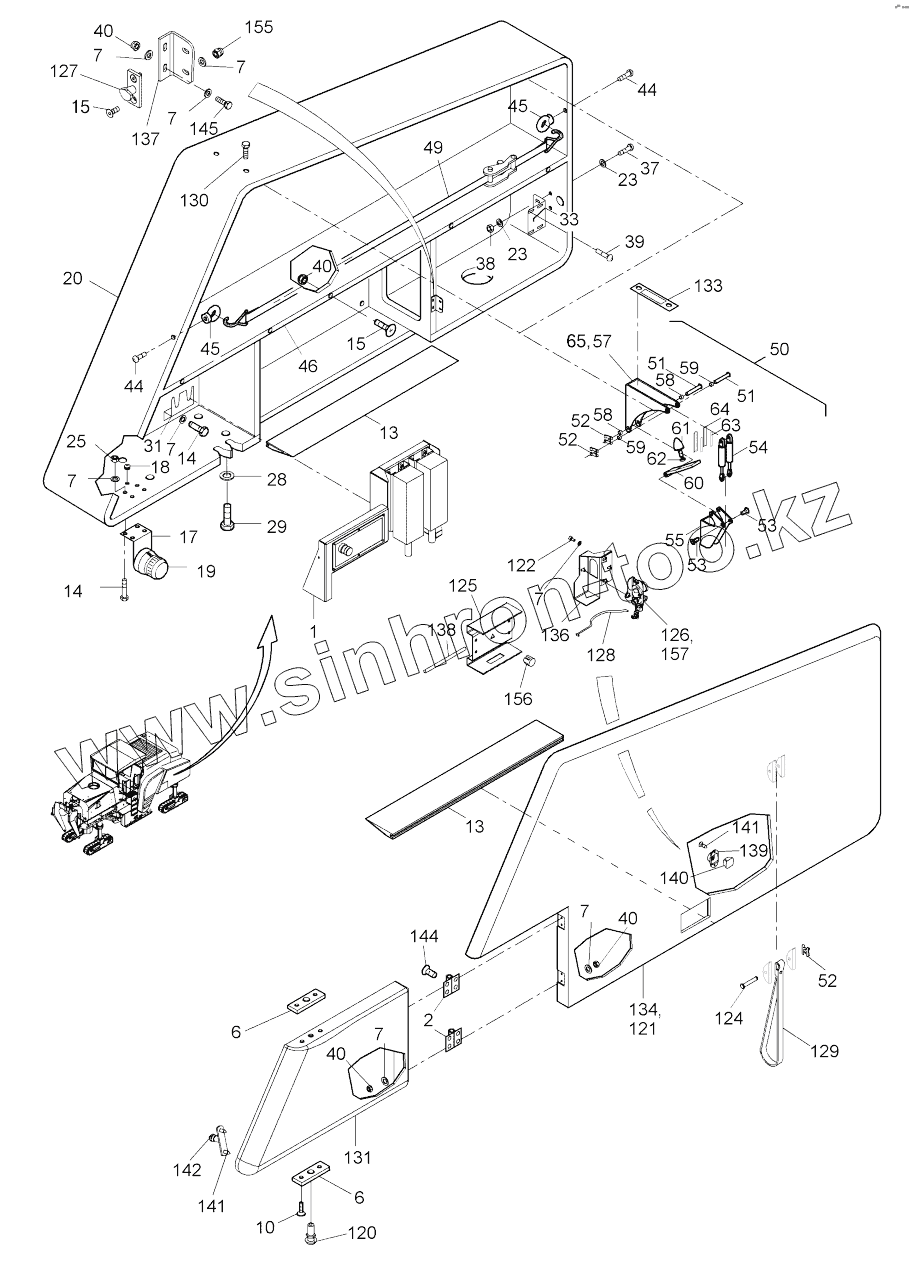

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-01125A Accessories boх

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
6
6
7
7
7
7
7
7
7
7
10
13
13
14
14
15
15
17
18
19
20
23
23
25
28
29
31
33
37
38
39
40
40
40
40
44
44
45
45
46
49
50
51
51
52
52
52
53
53
54
55
57
58
58
59
59
60
61
62
63
64
65
120
121
122
124
125
126
127
128
129
130
131
133
134
136
137
138
139
140
141
141
142
144
145
155
156
157
Позиция на иллюстрации Заводской номер детали Название детали
504010601 504010601 Accessories box
1 504010407 Console, compl.
2 930440067 Hinge
6 500210342 Bracket plate
7 600004 Washer
10 938362648 Countersunk screw
13 930280161 Seal profile
14 938155543 Hex. screw
15 939475166 Screw
17 977900232 Lamp bracket
18 977417119 Cable guide
19 977900231 Flash-light
20 504010394 Accessories box
23 600006 Washer
25 570004 Hex. nut
28 600008 Washer
29 500043 Hex. screw
31 504080215 Holder
33 504010522 Angle
37 939143411 Screw
38 938481008 Nut
39 939141711 Round head screw
40 938481006 Nut
44 939142409 Round head screw
45 937590008 Ring nut
46 504010664 Plate
49 930578482 Fixing belt
50 504010600 Hinge
51 930135150 Bolt
52 930429017 SL-safety
53 939476110 Countersunk screw
54 930220792 Pneumatic spring
55 504010596 Lever arm
57 504010592 Holder arm
58 935245606 Sliding bearing
59 935245607 Sliding bearing
60 504010660 Hinge profile
61 930235261 Rubber buffer
62 953325022 Hex. nut
63 930290210 Adhedsive strip
64 504010659 Profile
65 504010602 Strap
120 930404673 Stop bolt
121 930280165 Seal profile
122 508001 Cylinder screw
124 930135153 Bolt
125 504010616 Clasp
126 930176820 Twist lock
127 930450718 Wear part
128 504010621 Relock system
129 504010624 Loop
130 500048 Screw
131 504010560 Flap for operate
133 504010602 Strap
134 504010558 Accessories box flap
136 504010614 Holder
137 504010619 Angle
138 930290390 Plug - pipe
139 930225515 Fastener
140 930290429 Clamping piece
141 49900168 Tapping screw
142 504010625 Journal
144 939475168 Countersunk screw
145 500040 Screw
155 938761005 Cap nut
156 930460430 Cylinder
157 930450860 Key
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
