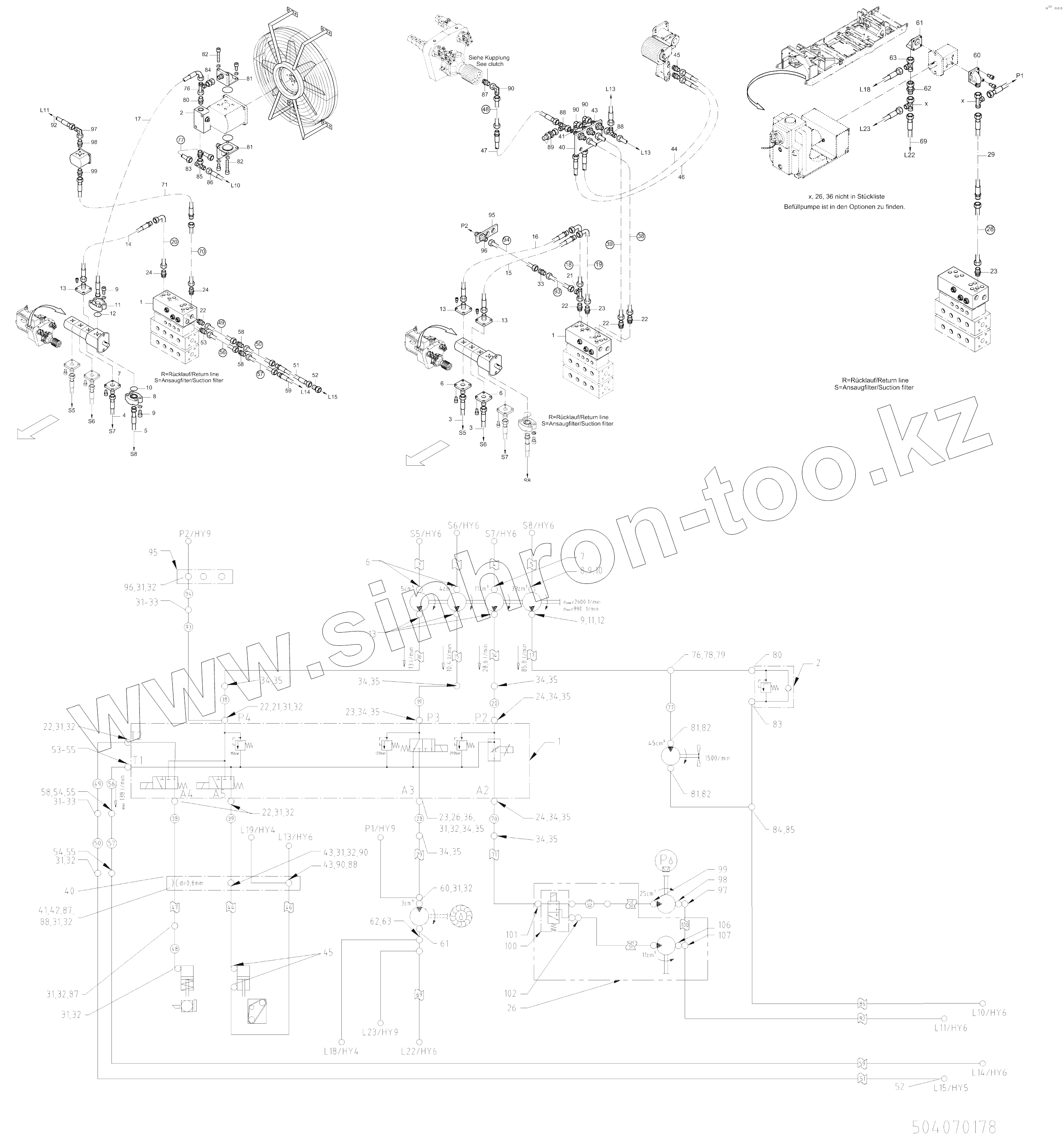

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-07165 Steering 3

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
2
3
3
3
3
4
4
5
5
6
6
6
7
7
8
8
9
9
9
9
10
10
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
23
23
24
24
24
24
26
26
28
29
31
31
31
31
31
31
31
31
31
31
31
31
32
32
32
32
32
32
32
32
32
32
33
33
33
34
34
34
34
34
34
34
34
34
35
35
35
35
35
35
35
35
35
38
38
38
39
39
40
40
41
41
42
43
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
55
56
56
57
57
58
58
58
59
59
60
60
61
61
62
62
63
63
69
69
70
71
76
76
77
77
78
79
80
80
81
81
81
81
82
82
82
82
83
83
84
84
85
85
86
86
87
87
87
88
88
88
88
89
90
90
90
90
90
92
92
93
93
94
94
95
95
96
96
97
97
98
98
99
99
Позиция на иллюстрации Заводской номер детали Название детали
504070178 504070178 Steering 3
1 963176330 Hydr. block
2 963171003 Hydr. block
3 960861523 Hose
4 960881701 Hose
5 960881702 Hose
6 961371068 Flange screwing
7 961371065 Flange screwing
8 930211340 Flange half
9 508053 Screw
10 932323729 O-ring
11 930211255 Flange half
12 932323698 O-ring
13 961371065 Flange screwing
14 960840901 Hose
15 960840954 Hose
16 960831065 Hose
17 960862810 Hose
18 504070514 Pipeline
19 504070511 Pipeline
20 504070509 Pipeline
21 961918006 Swivel nut run tee
22 961935103 Straight double-ended union
23 961935108 Straight double-ended union
24 961951084 Straight double-ended union
26 504070148 High pressure cleaner
28 504070520 Pipeline
29 960845632 Hose
31 961102056 Cutting ring
32 961102006 Union nut
33 961903006 Stud
34 961102058 Cutting ring
35 961102008 Union nut
38 504070515 Pipeline
39 504070510 Pipeline
40 500070549 Sheet
41 990092908 Orifice
42 500070224 Screwing
43 961906006 Bulk head union
44 960821006 Hose
45 961935106 Stud
46 960820955 Hose
47 960820506 Hose
48 504070684 Pipeline
49 504070513 Pipeline
50 504070648 Pipeline
51 960821951 Hose
52 961983608 Reduction union
53 961935112 Straight double-ended union
54 961102062 Cutting ring
55 961102012 Nut
56 504070502 Pipeline
57 504070649 Pipeline
58 961903012 Straight coupling
59 960882500 Hose
60 961371071 Angle flange screwing
61 961371073 Screwing
62 961121009 Straight coupling
63 961982612 T-Reducer screwing
69 960845666 Hose
70 504070518 Pipeline
71 960843500 Hose
72 961371065 Flange screwing
73 961371067 Flange screwing
76 961918021 Swivel nut run tee
77 504070651 Pipeline
78 961102071 Cutting ring
79 961102021 Nut
80 961935121 Straight double-ended union
81 961358002 Flange screwing
82 937930285 Screw
83 961935111 Straight double-ended union
84 961352010 Double nut
85 961919011 Swivel nut run tee
86 960871078 Hose
87 961180605 Straight screwing
88 961919006 Stud
89 961772635 Test connector
90 961917006 Union elbow both ports
92 960854455 Hose
93 504070652 Pipeline
94 504070653 Pipeline
95 504070114 Holder plate
96 961906006 Bulk head union
97 961917009 Stud
98 961953097 Straight coupling
99 961953087 Straight coupling
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
