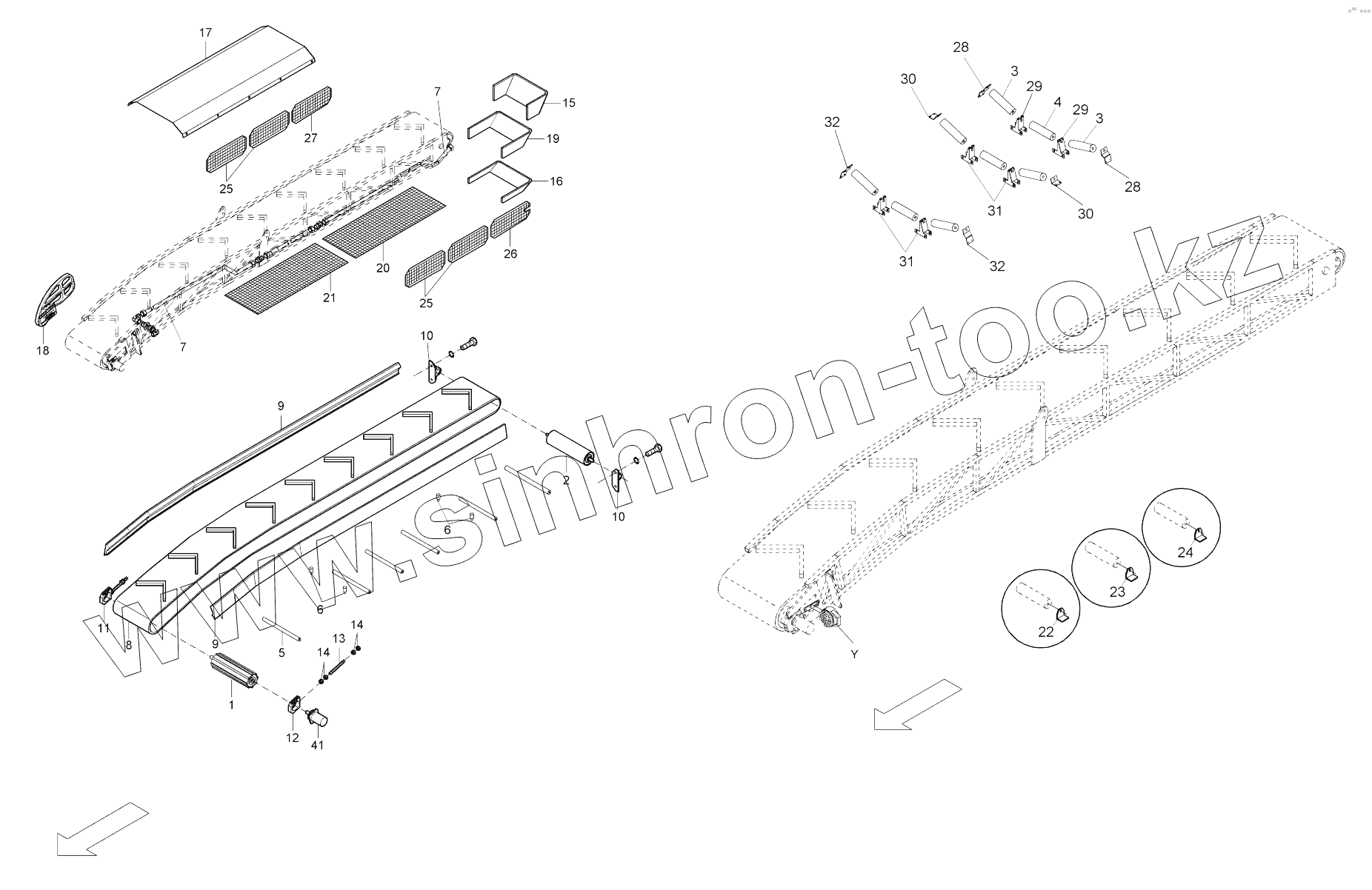

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-03160 Conveyor, rigid
/24.gif)
1
2
3
3
4
5
6
6
7
7
8
9
9
10
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
28
29
29
30
30
31
31
32
32
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 930211453 | 930211453 | Conveyor, rigid | |
| 932785874 | 932785874 | Seal kit for hydr. motor | |
| 1 | 930211411 | Roller head | |
| 2 | 930211413 | Reversing roller | |
| 3 | 930211416 | Upper belt pulley | |
| 4 | 930211418 | Upper belt pulley | |
| 5 | 930211421 | Lower belt pulley | |
| 6 | 930211422 | Side guide roller | |
| 7 | 960861254 | Hose | |
| 8 | 930211426 | Converyor belt | |
| 9 | 930211428 | Side sealing rubber | |
| 10 | 930211429 | Bearing | |
| 11 | 930211430 | Tension bearing plate | |
| 12 | 930211433 | Tension bearing plate motor side | |
| 13 | 930226030 | Screw rod | |
| 14 | 938140026 | Hex. nut | |
| 15 | 930211438 | Rubber guide, behind top | |
| 16 | 930211439 | Rubber guide, behind down | |
| 17 | 504-03190 | Covering | |
| 18 | 930211441 | Protecting cage | |
| 19 | 930211442 | Protection casing | |
| 20 | 930211444 | Protective grating | |
| 21 | 930211445 | Protective grating | |
| 22 | 930416080 | Pulley holder | |
| 23 | 930416081 | Pulley holder | |
| 24 | 930416082 | Pulley holder | |
| 25 | 930416083 | Pulley holder | |
| 26 | 930455913 | Protective grating | |
| 27 | 930455914 | Protective grating | |
| 28 | 930416087 | Pulley holder | |
| 29 | 930240611 | Pulley holder | |
| 30 | 930416086 | Pulley holder | |
| 31 | 930240612 | Holder | |
| 32 | 930416085 | Pulley holder | |
| 41 | 966057300 | Hydraulic motor |
