Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-02620 Milling housing
/16.gif)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
20
21
22
22
22
22
23
24
24
25
26
31
32
33
34
34
35
36
37
38
39
40
41
41
43
44
45
46
47
47
48
49
50
51
53
54
55
61
62
63
64
65
66
67
68
68
69
70
71
72
73
74
75
75
76
77
78
79
80
81
82
83
84
85
85
86
87
88
89
90
91

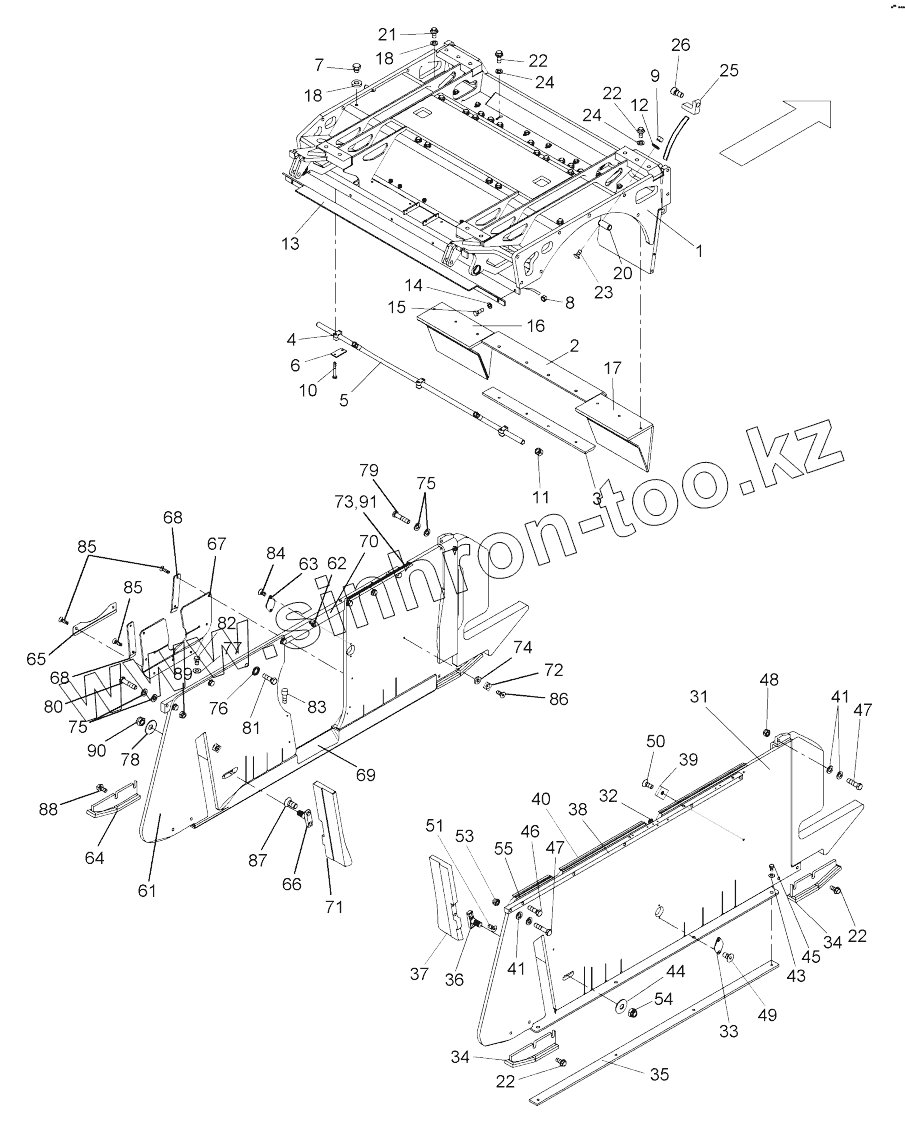

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 504120102 | 504120102 | Milling housing, compl. | |
| 1 | 504120103 | Milling housing | |
| 2 | 504120134 | Protection cover | |
| 3 | 504120140 | Sheet | |
| 4 | 934363202 | Clamping pieces | |
| 5 | 500300280 | Pipeline | |
| 6 | 934312117 | Cover plate | |
| 7 | 939040183 | Hexagon flange bolt | |
| 8 | 570007 | Nut | |
| 9 | 930506060 | Union nut | |
| 10 | 500186 | Screw | |
| 11 | 930177523 | Jet | |
| 12 | 939776117 | Locking washer | |
| 13 | 504020202 | Sealing strip | |
| 14 | 600009 | Washer | |
| 15 | 500037 | Hex. screw | |
| 16 | 500120212 | Side baffle plate, right | |
| 17 | 500120213 | Side baffle plate, left | |
| 18 | 939776124 | Locking washer | |
| 20 | 931507830 | Clamping pin | |
| 21 | 939040181 | Hex. screw | |
| 22 | 938150969 | Hex. screw | |
| 23 | 937626483 | Coach bolt | |
| 24 | 939130020 | Lower washer | |
| 25 | 504030148 | Stop | |
| 26 | 937934921 | Cylinder screw | |
| 31 | Screw | Screw | |
| 32 | 500020271 | Clamp screw, compl. | |
| 33 | 500020282 | Seal plate | |
| 34 | 500100275 | Support rail | |
| 35 | 500100302 | 1ntermedia ski | |
| 36 | 500120156 | Flange screw | |
| 37 | 504020126 | Sealing strip, right | |
| 38 | 504020189 | Holder | |
| 39 | 725180957 | Support plate | |
| 40 | 930176943 | Brush | |
| 41 | 600009 | Washer | |
| 42 | 939130014 | Washer | |
| 43 | 930435674 | Lock disc | |
| 44 | 932801010 | Cup spring | |
| 45 | 500035 | Hex. screw | |
| 46 | 500194 | Screw | |
| 47 | 500056 | Hex. screw | |
| 48 | 500111 | Screw | |
| 49 | 665821 | Countersunk screw | |
| 50 | 939475275 | Screw | |
| 51 | 939470436 | Countersunk screw | |
| 52 | 939786935 | Screw | |
| 53 | 938500009 | Safety nut | |
| 54 | 938500015 | Nut | |
| 55 | 930129459 | Rivet | |
| 61 | 504120154 | Side shield, left | |
| 62 | 500020271 | Clamp screw, compl. | |
| 63 | 500020282 | Seal plate | |
| 64 | 500100275 | Support rail | |
| 65 | 500100302 | 1ntermedia ski | |
| 66 | 500120156 | Flange screw | |
| 67 | 500220171 | Sealing | |
| 68 | 500220182 | Strap | |
| 69 | 500220183 | Clamping rail | |
| 70 | 500220184 | Holder | |
| 71 | 504020102 | Sealing strip, left | |
| 72 | 725180957 | Support plate | |
| 73 | 930176943 | Brush | |
| 74 | 939130014 | Washer | |
| 75 | 600009 | Washer | |
| 76 | 600011 | Washer | |
| 77 | 930435674 | Lock disc | |
| 78 | 932801010 | Cup spring | |
| 79 | 500056 | Hex. screw | |
| 80 | 500111 | Screw | |
| 81 | 500123 | Hex. screw | |
| 82 | 508084 | Screw | |
| 83 | 937932398 | Screw | |
| 84 | 665821 | Countersunk screw | |
| 85 | 939470223 | Countersunk screw | |
| 86 | 939475275 | Screw | |
| 87 | 939470436 | Countersunk screw | |
| 88 | 939786935 | Screw | |
| 89 | 938500009 | Safety nut | |
| 90 | 938500015 | Nut | |
| 91 | 930129459 | Rivet |
