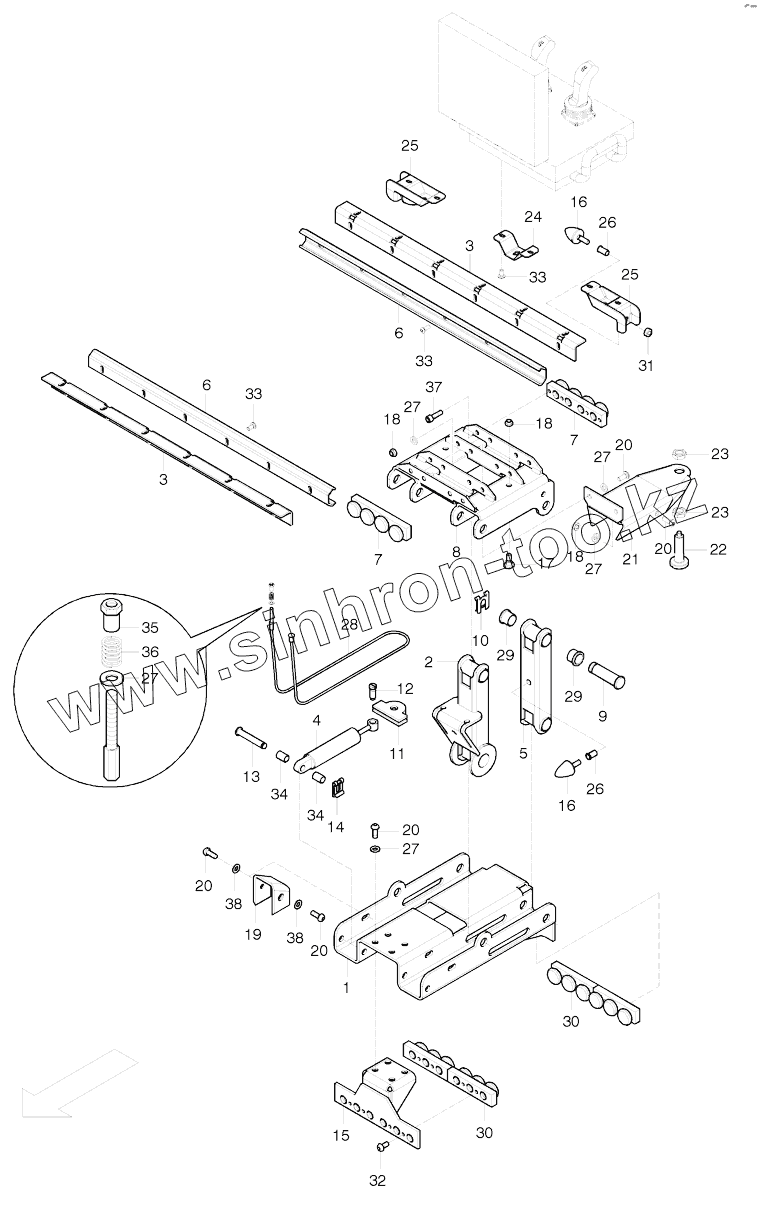

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-01145 Operating panel carrier
/9.gif)
1
2
3
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
16
17
18
18
18
19
20
20
20
20
20
21
22
23
23
24
25
25
26
26
27
27
27
27
27
28
29
29
30
30
31
32
33
33
33
34
34
35
36
37
38
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 504010626 | 504010626 | Operating panel carrier | |
| 1 | 504010627 | Console | |
| 2 | 504010630 | Lever | |
| 3 | 504010643 | Angle | |
| 4 | 930220849 | Pneumatic spring | |
| 5 | 504010631 | Lever | |
| 6 | 930440151 | Rail | |
| 7 | 930303131 | Rotor | |
| 8 | 504010638 | Carrier | |
| 9 | 930135147 | Bolt | |
| 10 | 930429013 | SL-safety | |
| 11 | 504010646 | Head plate | |
| 12 | 938020217 | Flat head cap screw | |
| 13 | 930135154 | Bolt | |
| 14 | 930429017 | SL-safety | |
| 15 | 504010648 | Angle support | |
| 16 | 930235261 | Rubber buffer | |
| 17 | 938620999 | Bolt | |
| 18 | 938481006 | Nut | |
| 19 | 504010651 | Wedge | |
| 20 | 939142309 | Screw | |
| 21 | 504010657 | Holder for stop bolt | |
| 22 | 930404672 | Stop bolt | |
| 23 | 937180619 | Hex. nut | |
| 24 | 504010622 | Stop plate | |
| 25 | 504010654 | Stop plate | |
| 26 | 930128757 | Blind rivet-nut | |
| 27 | 600004 | Washer | |
| 28 | 930425839 | Stainless steel cable | |
| 29 | 930136736 | Friction bearing with collar | |
| 30 | 930300130 | Rotor | |
| 31 | 953325022 | Hex. nut | |
| 32 | 939142307 | Round head screw | |
| 33 | 939142256 | Round head screw | |
| 34 | 935245607 | Sliding bearing | |
| 35 | 504010663 | Threaded bolt | |
| 36 | 930177002 | Pressure spring | |
| 37 | 937924218 | Cylinder screw | |
| 38 | 939776111 | Locking washer |
