Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-01140 Operator stand
/8.gif)
1
2
3
4
5
5
5
5
5
6
7
8
8
9
9
9
10
11
11
12
12
13
14
15
16
17
17
17
18
19
20
21
22
23
24
26
27
28
28
29
30
31
31
31
31
32
33
34

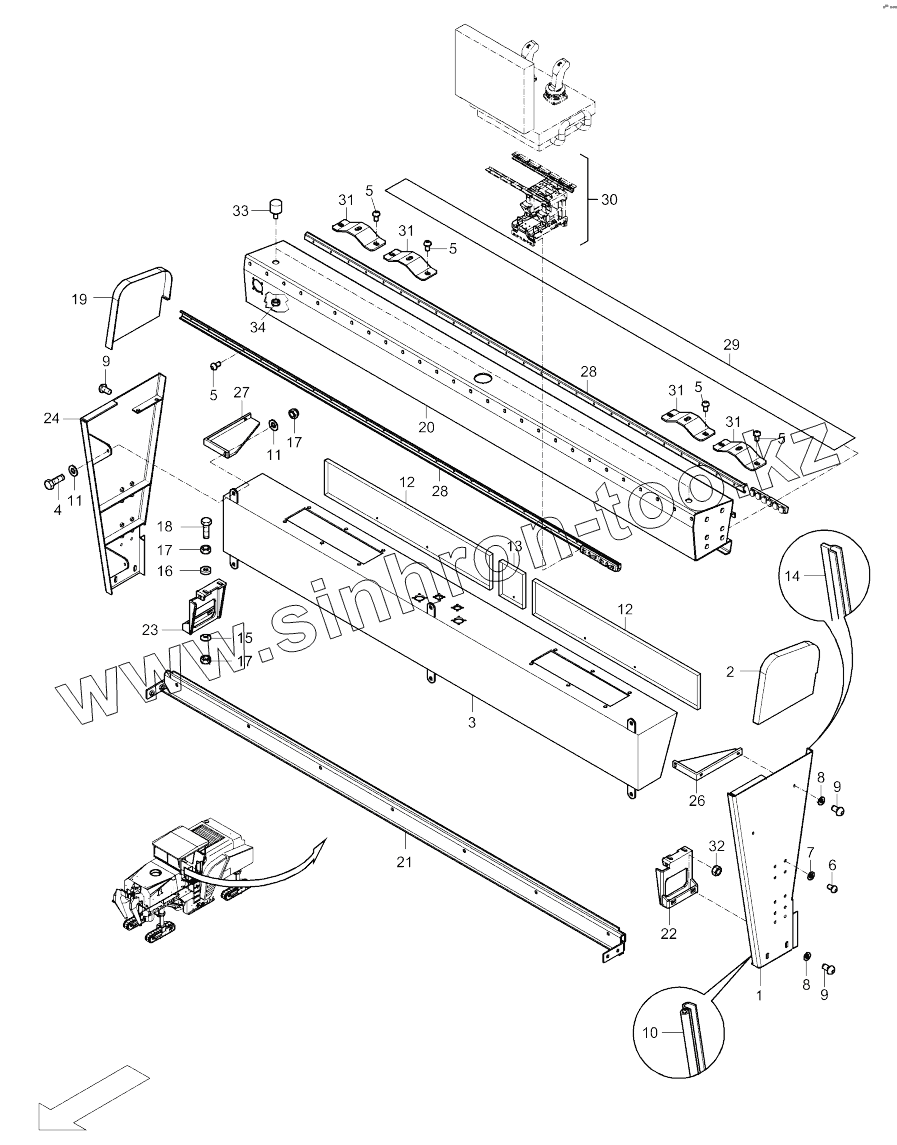

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 504010562 | 504010562 | Operator stand | |
| 1 | 504010571 | Side plate, left | |
| 2 | 504010563 | Side plate, top | |
| 3 | 500180162 | Clamp box | |
| 4 | 500027 | Hex. screw | |
| 5 | 939142257 | Round head screw | |
| 6 | 939142309 | Screw | |
| 7 | 939570511 | Washer | |
| 8 | 600006 | Washer | |
| 9 | 939142409 | Round head screw | |
| 10 | 930235491 | Seal profile | |
| 11 | 600008 | Washer | |
| 12 | 500180158 | Door | |
| 13 | 500180157 | Door | |
| 14 | 930280161 | Seal profile | |
| 15 | 930298310 | Spherical washer | |
| 16 | 930284412 | Spherical disc | |
| 17 | 938191917 | Nut | |
| 18 | 938150714 | Hex. screw | |
| 19 | 504010564 | Side plate, top | |
| 20 | 504010566 | Accessories box | |
| 21 | 504010567 | Foot room connection | |
| 22 | 504010568 | Foot retainer | |
| 23 | 504010569 | Foot retainer | |
| 24 | 504010570 | Side plate, right | |
| 26 | 504010605 | Junction plate, left | |
| 27 | 504010606 | Junction plate, right | |
| 28 | 930440150 | Rail | |
| 29 | 504010703 | Rubber plate | |
| 30 | 504-01145 | Operating panel carrier | |
| 31 | 504010288 | Stop plate | |
| 32 | 570005 | Nut | |
| 33 | 930235249 | Rubber buffer | |
| 34 | 570004 | Hex. nut |
