  4. Dynapac PL2000LS
  5. 504-01135 Fuel tank, seats

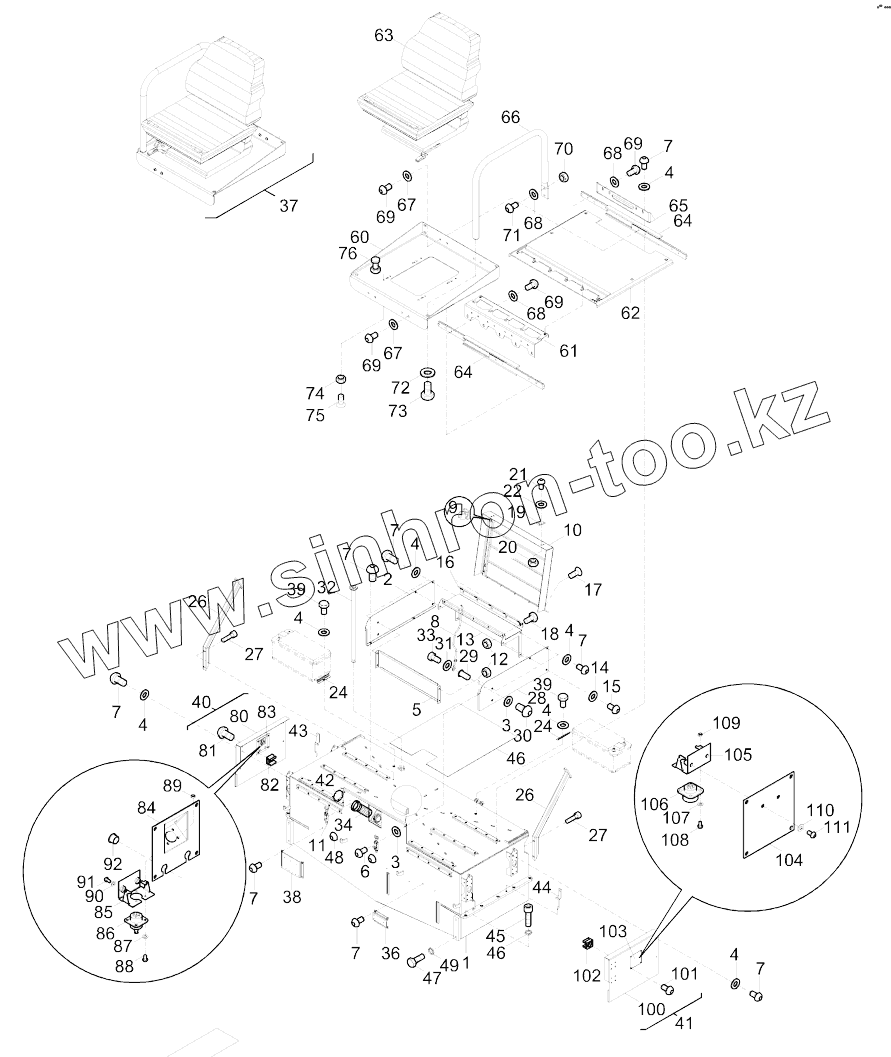

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-01135 Fuel tank, seats

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
4
4
4
4
4
4
5
6
7
7
7
7
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
24
26
26
27
27
28
29
30
31
32
33
34
36
37
38
40
41
42
43
44
45
46
46
47
48
49
60
61
62
63
64
64
65
66
67
67
68
68
68
69
69
69
69
70
71
72
73
74
75
76
80
81
82
83
84
85
86
87
88
89
90
91
92
100
101
102
103
104
105
106
107
108
109
110
111
Позиция на иллюстрации Заводской номер детали Название детали
1 504010339 Fuel tank
2 504010384 Plate
3 600004 Washer
4 600006 Washer
5 504010387 1ntermedia plate
6 939141711 Round head screw
7 939142409 Round head screw
8 504010410 Lock rod
9 953509710 Clamp
10 504010376 Enter support cover
11 930435604 Tension lock
12 938500005 Nut
13 504010406 Rearwall
14 939570514 Washer
15 939143411 Screw
16 504010415 Hinge
17 939475166 Screw
18 500012 Screw
19 930450719 Hook
20 938500054 Safety nut
21 939142259 Round head screw
22 600003 Disc
23 930280165 Seal profile
24 49100397 Batterie support
26 504010416 Arm
27 508005 Screw
28 504010381 Plate
29 930338019 Connecting sleeve
30 939142309 Screw
31 939570511 Washer
32 977044005 Tank indicator
33 939725504 Flat head cap screw
34 930429075 Sieve
36 504010497 Module holder
37 504010294 Drivers seats, compl.
38 504010499 Module holder
40 504010509 Side covering, right
41 504010508 Side covering, left
42 930480075 Tank locking
43 504010122 Hose holder
44 504010123 Hose holder
45 49901853 Locking washer
46 937932608 Cylinder screw
47 938150978 Hex. screw
48 930368911 Oil level glas
49 939776129 Locking washer
60 504010327 Seat console
61 504010579 Profile
62 504010335 Seat plate
63 953420323 Seat
64 930484401 Telescopic carrier
65 504010337 Seat support, rear
66 504010290 Bow
67 600006 Washer
68 939570514 Washer
69 939142409 Round head screw
70 570005 Nut
71 939143411 Screw
72 600011 Washer
73 500154 Screw
74 938500007 Nut
75 939475221 Screw
76 930404706 Stop bolt
80 504010404 Side covering, right
81 939142307 Round head screw
82 939756135 Nut
83 504010515 Plug-in socket, outer
84 504080211 Plug console
85 504010516 Flange plug in
86 977479713 Socket
87 936882005 Disc
88 936730271 Cylinder screw
89 938191010 Nut
90 600004 Washer
91 939142307 Round head screw
92 977417118 Cable guide
100 504010392 Side covering, left
101 939142307 Round head screw
102 939756135 Nut
103 504010511 Flange plug in
104 Plug Plug connector see engine Gr. 9
105 504080211 Plug console
106 977479713 Socket
107 936882005 Disc
108 936730271 Cylinder screw
109 938191010 Nut
110 600004 Washer
111 939142307 Round head screw
