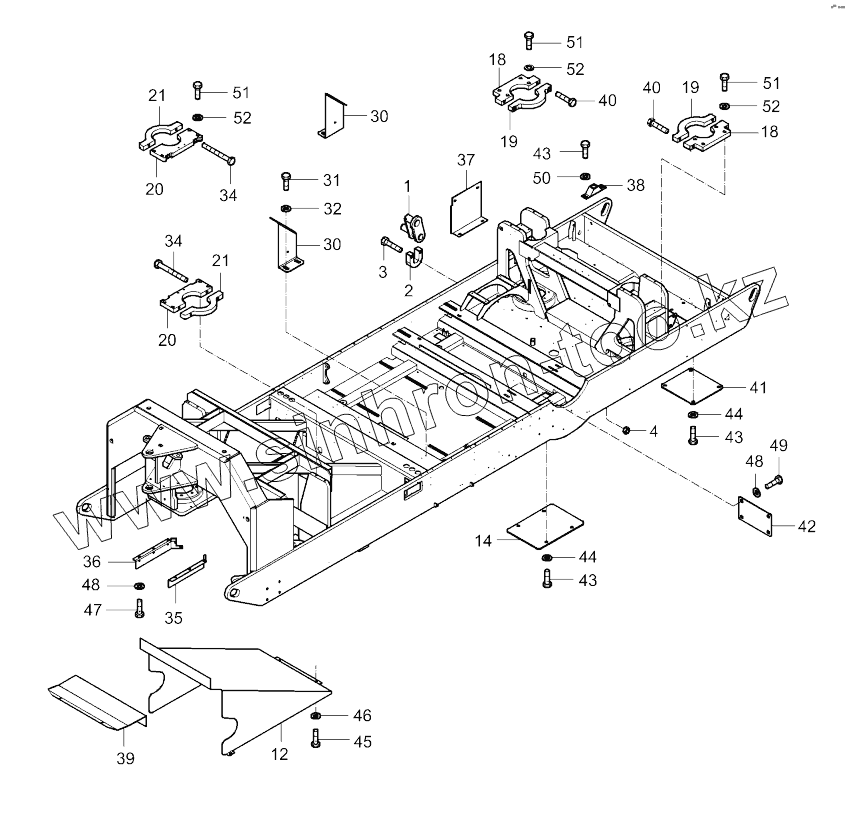

Каталог запасных частей к технике: DYNAPAC Dynapac PL2000LS. 504-01110 Mounting parts main frame
/3.gif)
1
2
3
4
12
14
18
18
19
19
20
20
21
21
30
30
31
32
34
34
35
36
37
38
39
40
40
41
42
43
43
43
44
44
45
46
47
48
48
49
50
51
51
51
52
52
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 504010220 | Scraper safety-catch | |
| 2 | 504010212 | Bearing | |
| 3 | 500094 | Screw | |
| 4 | 570008 | Hex. nut | |
| 12 | 504010711 | Tank protection | |
| 14 | 504010667 | Sheet | |
| 18 | 504010668 | Clip | |
| 19 | 504010141 | Clip | |
| 20 | 504010145 | Clip | |
| 21 | 504010147 | Clip | |
| 30 | 504010313 | Mounting plate | |
| 31 | 500027 | Hex. screw | |
| 32 | 904230 | Washer 10,5x22x2 | |
| 34 | 938117193 | Hex. screw | |
| 35 | 504010583 | Support, left | |
| 36 | 504010585 | Support, right | |
| 37 | 504010612 | Glide plate | |
| 38 | 500210695 | Hood bearing | |
| 39 | 504010707 | Tank covering | |
| 40 | 938122175 | Hex. screw | |
| 41 | 504010716 | Plate | |
| 42 | 504010715 | Cover plate | |
| 43 | 500012 | Screw | |
| 44 | 49900080 | Screw retention | |
| 45 | 500051 | Hex. screw | |
| 46 | 939570518 | Washer | |
| 47 | 500048 | Screw | |
| 48 | 49900025 | Screw retention | |
| 49 | 500028 | Screw | |
| 50 | 939570511 | Washer | |
| 51 | 938116943 | Hex. screw | |
| 52 | 930440090 | Disc |
