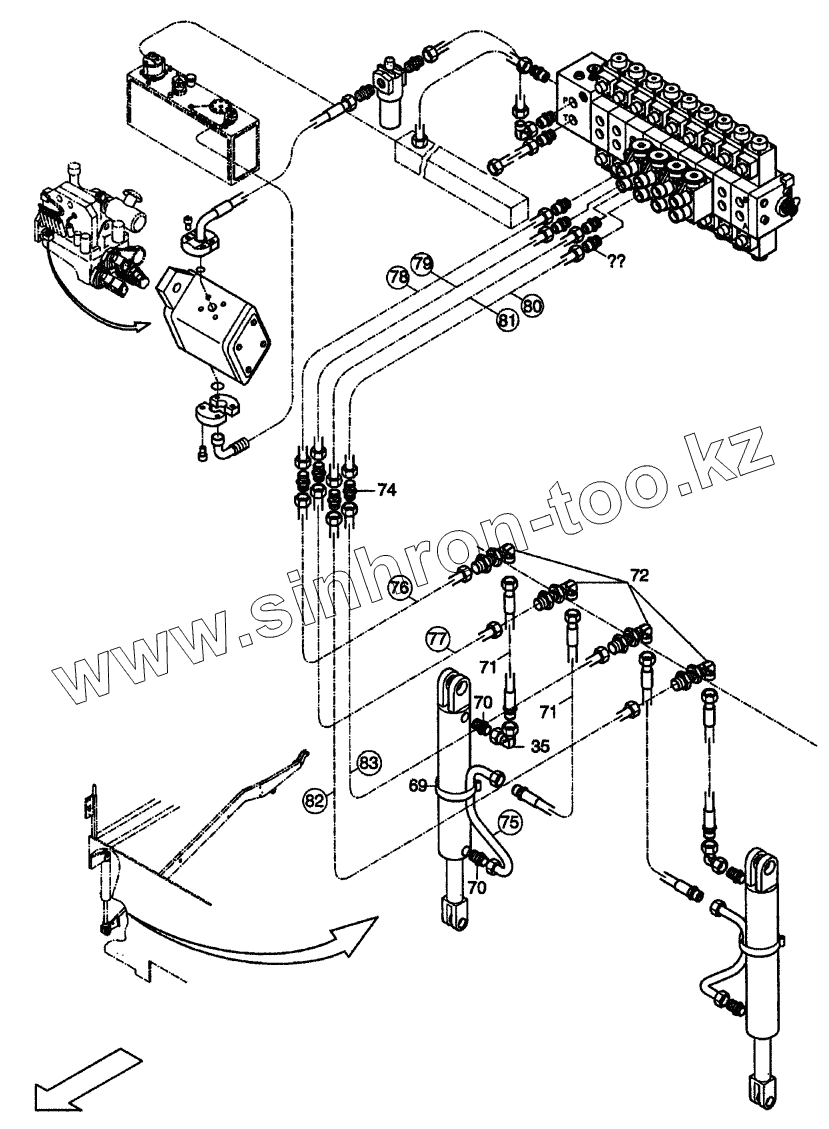

Каталог запасных частей к технике: DYNAPAC Dynapac F181C. Work hydraulic
69
70
70
71
71
72
74
75
76
77
78
79
80
81
82
83
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 657-08130 | 657-08130 | Work hydraulic | |
| 657091000 | 657091000 | Work hydraulic | |
| 967536842 | 967536842 | Seal kit | |
| 964006000 | 964006000 | Form filter | |
| 964350862 | 964350862 | Filter cartridge | |
| 964812000 | 964812000 | Maintenance indicator | |
| 932786550 | 932786550 | Seal kit | |
| 930176945 | 930176945 | Seal kit | |
| 1 | 967105452 | Hydr. pump | |
| 2 | 930211255 | Flange half | |
| 3 | 932323203 | O-ring | |
| 4 | 937930228 | Screw | |
| 6 | 930211340 | Flange half | |
| 7 | 932323235 | O-ring | |
| 8 | 960892650 | Hose | |
| 9 | 960855460 | Hose | |
| 13 | 500013 | Hex. screw | |
| 14 | 49900080 | Screw retention | |
| 15 | 963176000 | Steering block | |
| 16 | 864291070 | Pipeline | |
| 17 | 655091017 | Pipeline | |
| 18 | 655091018 | Pipeline | |
| 19 | 655091019 | Pipeline | |
| 20 | 657091020 | Pipeline | |
| 21 | 655091021 | Pipeline | |
| 22 | 655091022 | Pipeline | |
| 23 | 655091023 | Pipeline | |
| 24 | 655091024 | Pipeline | |
| 25 | 960893102 | Hose | |
| 26 | 990093018 | Orifice | |
| 30 | 990196400 | Hydraulic cylinder | |
| 31 | 934400140 | Clip | |
| 32 | 961936218 | Screwing | |
| 33 | 961154218 | Threaded socket | |
| 34 | 961917008 | Adjustable elbow | |
| 36 | 960840450 | Hose | |
| 37 | 961905009 | Equal-tee | |
| 38 | 961904009 | Swivel nut elbow | |
| 39 | 961935135 | Straight double-ended union | |
| 40 | 961903009 | Straight double-ended union | |
| 41 | 961903008 | Straight coupling | |
| 42 | 961935228 | Straight double-ended union | |
| 43 | 961175206 | Plug screw | |
| 44 | 654091044 | Pipeline | |
| 45 | 655091045 | Pipeline | |
| 46 | 655091046 | Pipeline | |
| 47 | 757291058 | Pipeline | |
| 48 | 757291059 | Pipeline | |
| 49 | 757291060 | Pipeline | |
| 50 | 757291061 | Pipeline | |
| 51 | 757291072 | Pipeline | |
| 52 | 864902417 | Tube | |
| 53 | 757291059 | Pipeline | |
| 54 | 757291075 | Pipeline | |
| 55 | 757291076 | Pipeline | |
| 56 | 657091056 | Pipeline | |
| 60 | 655091060 | Pipeline | |
| 61 | 655091061 | Pipeline | |
| 62 | 963155275 | Screed stop valve | |
| 63 | 961935106 | Stud | |
| 64 | 961935108 | Straight double-ended union | |
| 65 | 655091065 | Pipeline | |
| 66 | 655091066 | Pipeline | |
| 67 | 655091067 | Pipeline | |
| 68 | 655091068 | Pipeline | |
| 69 | 990195600 | Hydraulic cylinder | |
| 70 | 990093608 | Male connector for swivel nut | |
| 71 | 960820450 | Hose | |
| 72 | 961907006 | Bulkhead union | |
| 73 | 930296612 | Ball valve | |
| 74 | 961903006 | Stud | |
| 75 | 754291042 | Pipeline | |
| 76 | 655091076 | Pipeline | |
| 77 | 655091077 | Pipeline | |
| 78 | 655091078 | Pipeline | |
| 79 | 655091079 | Pipeline | |
| 80 | 655091080 | Pipeline | |
| 81 | 655091081 | Pipeline | |
| 82 | 655091082 | Pipeline | |
| 83 | 655091083 | Pipeline | |
| 84 | 655091084 | Pipeline | |
| 85 | 655091085 | Pipeline | |
| 86 | 655091086 | Pipeline | |
| 87 | 655091087 | Pipeline | |
| 88 | 961932096 | Straight screwing | |
| 89 | 961917009 | Stud | |
| 90 | 990195500 | Hydraulic cylinder | |
| 91 | 961134209 | Screwing | |
| 92 | 961917006 | Union elbow both ports | |
| 93 | 961907008 | Bulkhead union elbow | |
| 94 | 961183610 | Reduction union | |
| 95 | 961102008 | Union nut | |
| 96 | 961102058 | Cutting ring | |
| 97 | 961102006 | Union nut | |
| 98 | 961102056 | Cutting ring | |
| 99 | 961102009 | Nut | |
| 100 | 961102059 | Cutting ring | |
| 101 | 961905008 | Union tee | |
| 102 | 956201111 | Vacuum gauge | |
| 103 | 961722625 | Manometer connection | |
| 104 | 961773694 | Hose | |
| 105 | 969772668 | Test connection | |
| 106 | 969772669 | Test connection | |
| 107 | 961320820 | Screwing |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
