Каталог запасных частей к технике: DYNAPAC Dynapac F181C. Slope control

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Main frame Side screed arms lock and screed guide Caterpillar, compl. Crawler frame, compl. Drive gear box Truck chain Seats extensionable Operator Desk extensionable Side screed arms, compl. 3m Screed Conveyor compl. Conveyor Conveyor plates Conveyor plate kit Conveyor gear with Dipstick Drive for conveyor gear Grease pipeline conveyor Limit switch conveyor Sonic sensor conveyor Hopper, compl. Holder for tank Fuel tank Water oil cooler Exhaust system Air filter, engine parts Maintenance Kits used for Motor no.: 966362406, 966362407, 966362415, 966362418, without drawing Air guide Hydr. circle: Tamper Hydraulik oil tank, compl. Filter Manifold Work hydraulic Work hydraulic Work hydraulic Work hydraulic Work hydraulic Work hydraulic Hydraulic cylinder 990196400 Hydraulic cylinder 990195500 Compactor Pump Hydr. circle: Auger left and right Hydr. circle vibration Hydr. circle: Conveyor Drive control unit Operator panel, standard Terminal holder Drive system Levelling Hopper, common actuating Hopper, single actuating Tamper Vibration Screed function Conveyor, auger Set value box Option Engine Limit switch auger Limit switch conveyor Sonic sensor auger Sonic sensor conveyor Electric plant, Auger vertical adjustable Conveyor, auger Cover plates Guide rail and step, hight indicator f. auger Engine hood, compl. Hood Auger 380 mm Extension mounts Auger drive Grease pipelines Material guide from 7 m Auger support Material guide from 8 m Limit Switch Potentiometer Tools and accessories Weather protection roof Bow Hydraulic cylinder Hydr. adjustable auger Diesel spray equipment Remote control Add. lights Maintenance kit, Comm.6BT5.9 Inspection kit machine Insection kit engine Wear part kit rubber bottom plates Wear part kit Conveyor drive Wear part kit roof profile Wear part kit roof profile Support for grade control Grade control Dipstick, compl. Slope control Grade control, MOBA

1

2

3

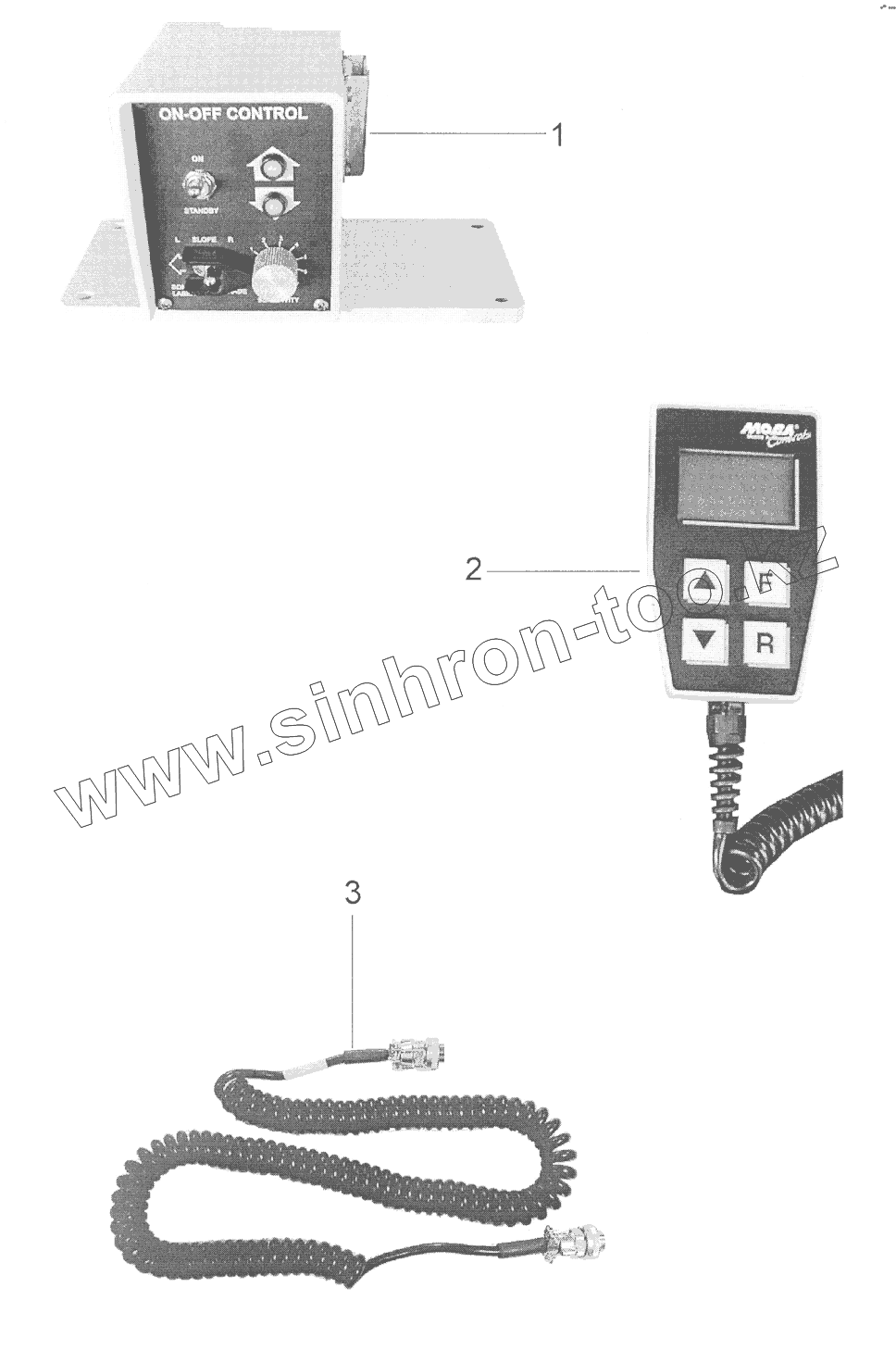

Позиция на иллюстрации	Заводской номер детали		Название детали
830-15754	830-15754		Slope control
900624754	900624754		Slope control, compl.
1	900624755		Slope control cpl
2	900624710		Handset for slope control
3	900625070		Connection cable assy.

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
