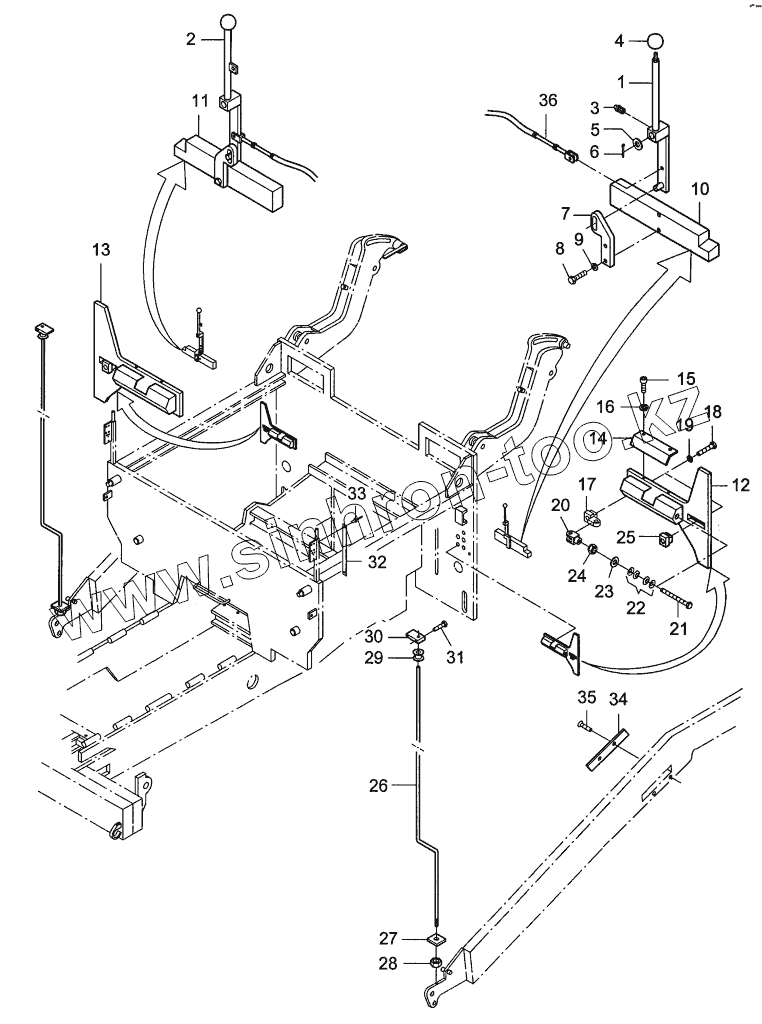

Каталог запасных частей к технике: DYNAPAC Dynapac F181C. Side screed arms lock and screed guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 657-01113 | 657-01113 | Side screed arms lock and screed guide | |
| 1 | 772012010 | Lever, left | |
| 2 | 772012025 | Lever, right | |
| 3 | 935511110 | Grease nipple | |
| 4 | 930298020 | Spherical button | |
| 5 | 600021 | Washer | |
| 6 | 630015 | Split pin | |
| 7 | 772012046 | Gate | |
| 8 | 500029 | Screw | |
| 9 | 49900025 | Screw retention | |
| 10 | 772012055 | Block side arm, left | |
| 11 | 772012056 | Block side arm, right | |
| 12 | 756011001 | Sliding piece, left | |
| 13 | 756011010 | Sliding piece, right | |
| 14 | 756011018 | Lock plate | |
| 15 | 508005 | Screw | |
| 16 | 49900025 | Screw retention | |
| 17 | 756011019 | Block | |
| 18 | 938166031 | Hex. screw | |
| 19 | 936900031 | Spring washer | |
| 20 | 934803732 | Fork head | |
| 21 | 756011026 | Screw | |
| 22 | 932800937 | Cup spring | |
| 23 | 939130018 | Washer | |
| 24 | 938500011 | Nut | |
| 25 | 939755824 | Grooving nut | |
| 26 | 754013001 | Rod | |
| 27 | 754013003 | Guide plate | |
| 28 | 928847 | Hex. nut | |
| 29 | 977418111 | Cable sleeve | |
| 30 | 570130620 | Indicator | |
| 31 | 500012 | Screw | |
| 32 | 990000901 | Scale | |
| 33 | 930129459 | Rivet | |
| 34 | 750250019 | Sliding plate | |
| 35 | 939475274 | Countersunk screw | |
| 36 | 954522510 | Actuation for side screed arms lock |
