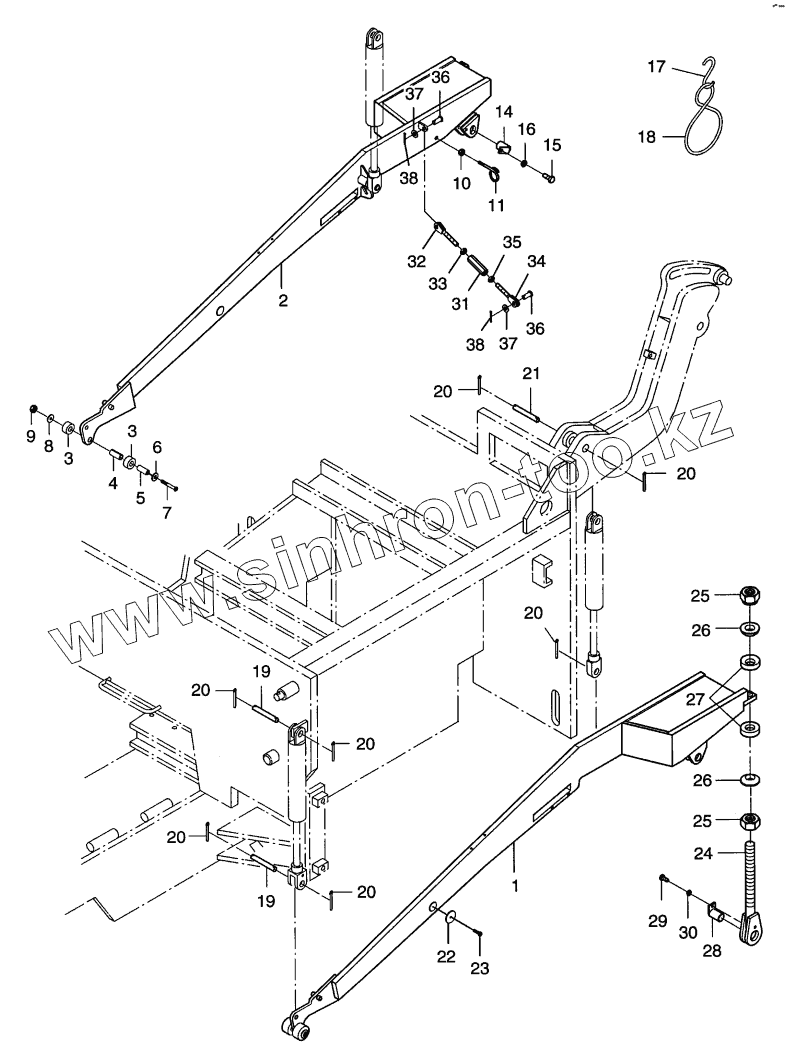

Каталог запасных частей к технике: DYNAPAC Dynapac F181C. Side screed arms, compl. 3m Screed
1
2
3
3
4
5
6
7
8
9
10
11
14
15
16
17
18
19
19
20
20
20
20
20
20
20
21
22
23
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
36
37
37
38
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 756-04100 | 756-04100 | Side screed arms, compl. | |
| 1 | 756042901 | Side screed arm, left | |
| 2 | 756043001 | Side screed arm, right | |
| 3 | 661364 | Roller head | |
| 4 | 931503333 | Clamping pin | |
| 5 | 661365 | Distance pipe | |
| 6 | 600014 | Washer | |
| 7 | 939475341 | Countersunk screw | |
| 8 | 939570518 | Washer | |
| 9 | 938480510 | Nut | |
| 10 | 929233 | Nut | |
| 11 | 866045932 | Hose holder | |
| 14 | 654042505 | Bolt | |
| 15 | 500048 | Screw | |
| 16 | 49900025 | Screw retention | |
| 17 | 864041005 | Hook | |
| 18 | 930381004 | Elastic string | |
| 19 | 750450046 | Bolt | |
| 20 | 936790657 | Split pin | |
| 21 | 990020297 | Bolt | |
| 22 | 977860101 | Reflector, yellow | |
| 23 | 936753326 | Flat head screw | |
| 24 | 886045941 | Spindle | |
| 25 | 938190026 | Hex. nut | |
| 26 | 930298331 | Spherical washer | |
| 27 | 930284435 | Connical ring | |
| 28 | 886045946 | Bolt | |
| 29 | 500053 | Screw | |
| 30 | 49900161 | Screw retention | |
| 31 | 756044102 | Nut | |
| 32 | 756044103 | Fork head, right | |
| 33 | 938250513 | Hex. nut | |
| 34 | 756044107 | Fork head, left | |
| 35 | 938250595 | Hex. nut left threaded | |
| 36 | 990020218 | Bolt | |
| 37 | 600025 | Washer | |
| 38 | 630019 | Split pin |
