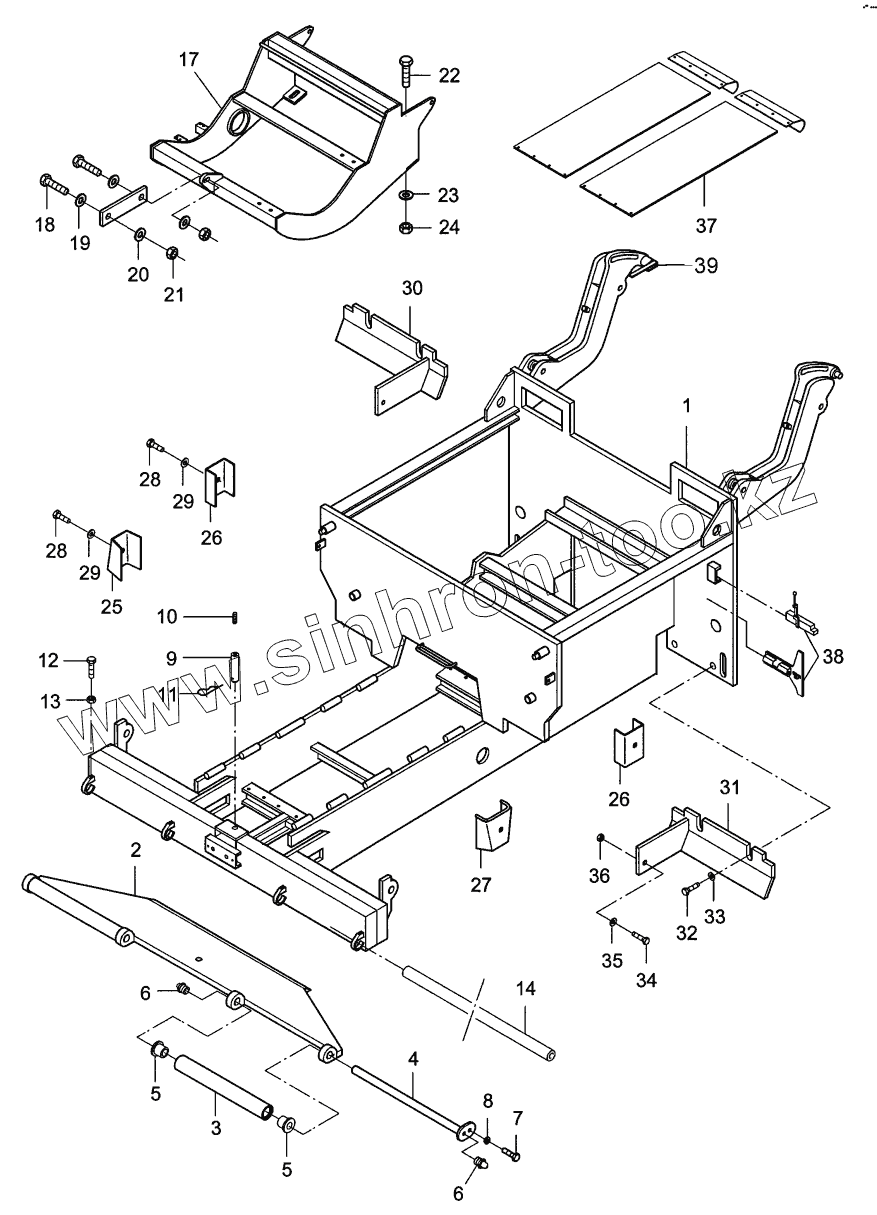

Каталог запасных частей к технике: DYNAPAC Dynapac F181C. Main frame
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
17
18
19
20
21
22
23
24
25
26
26
27
28
28
29
29
30
31
32
33
34
35
36
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 657-01100A | 657-01100A | Main frame | |
| 1 | 657013900 | Main frame | |
| 2 | 774010101 | Push roller beam | |
| 3 | 880010105 | Push roller | |
| 4 | 880010109 | Axle | |
| 5 | 570010113 | Bushing | |
| 6 | 935511210 | Grease nipple | |
| 7 | 500021 | Screw | |
| 8 | 49900161 | Screw retention | |
| 9 | 774011210 | Socket pin | |
| 10 | 937976704 | Threaded pin | |
| 11 | 930205010 | Spring pin | |
| 12 | 938165766 | Screw | |
| 13 | 928849 | Nut | |
| 14 | 880010062 | Extension | |
| 17 | 654011401 | Engine frame | |
| 18 | 938165874 | Hex. screw | |
| 19 | 939130018 | Washer | |
| 20 | 600011 | Washer | |
| 21 | 938481012 | Safety nut | |
| 22 | 500156 | Hex. screw | |
| 23 | 600014 | Washer | |
| 24 | 938481014 | Nut | |
| 25 | 757011201 | Hose protection, right | |
| 26 | 757011205 | Hose protection | |
| 27 | 757011212 | Hose protection, left | |
| 28 | 500048 | Screw | |
| 29 | 939570516 | Washer | |
| 30 | 757011805 | Deflector, right | |
| 31 | 757011815 | Deflector, left | |
| 32 | 500051 | Hex. screw | |
| 33 | 939570518 | Washer | |
| 34 | 500076 | Hex. screw | |
| 35 | 939130018 | Washer | |
| 36 | 938480512 | Hex. nut | |
| 39 | 49302734 | Twist Lock |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
