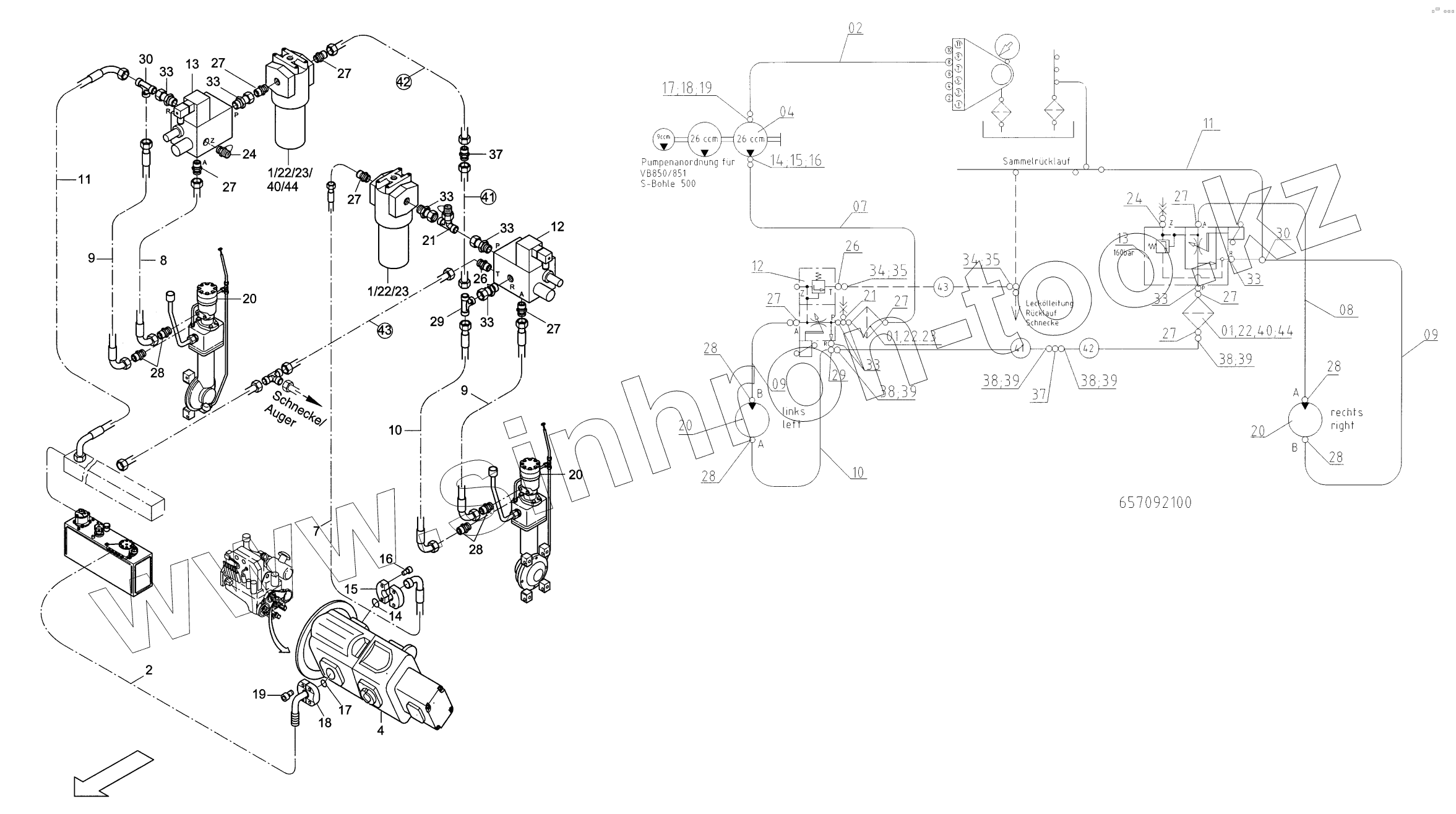

Каталог запасных частей к технике: DYNAPAC Dynapac F181C. Hydr. circle: Conveyor

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
1
2
2
4
4
7
7
8
8
9
9
9
9
10
10
11
11
12
12
14
14
15
15
16
16
17
17
18
18
19
19
20
20
20
20
21
21
22
22
22
22
23
23
23
24
24
26
26
27
27
27
27
27
27
27
27
27
27
28
28
28
28
28
28
29
29
30
30
33
33
33
33
33
33
33
33
34
34
35
35
37
37
38
38
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
Позиция на иллюстрации Заводской номер детали Название детали
657092100 657092100 Hydr. circle: Conveyor
963612121 963612121 Current flow magnet
963084060 963084060 Flow regulation valve
963612121 963612121 Current flow magnet
1 964006106 Filter
1 964350862 Filter cartridge
2 960892550 Hose
4 Pump Pump see split gear box Gr. 7
7 960875301 Hose
8 960870750 Hose
9 960871210 Hose
10 961871403 Hose
11 960885630 Hose
12 963084065 Flow regulation valve
14 932323235 O-ring
15 930211340 Flange half
16 508029 Screw
17 932213250 O-ring
18 930211345 Flange half
19 508029 Screw
20 MotorConveyor Motor see conveyor Gr. 5
21 961772650 Test connector
22 49900080 Screw retention
23 500040 Screw
24 961772617 Test connector
26 961935106 Stud
27 961935111 Straight double-ended union
28 990093221 Straight double-ended union
29 961905011 Equal-tee
30 961982658 T-Reducer screwing
33 961154111 Male connector for swivel nut
34 961102006 Union nut
35 961102056 Cutting ring
37 961903011 Straight coupling
38 961102011 Union nut
39 961102061 Cutting ring
40 655092140 Square steel
41 757095141 Pipeline
42 757095142 Pipeline
43 655092143 Pipeline
44 938165552 Screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
