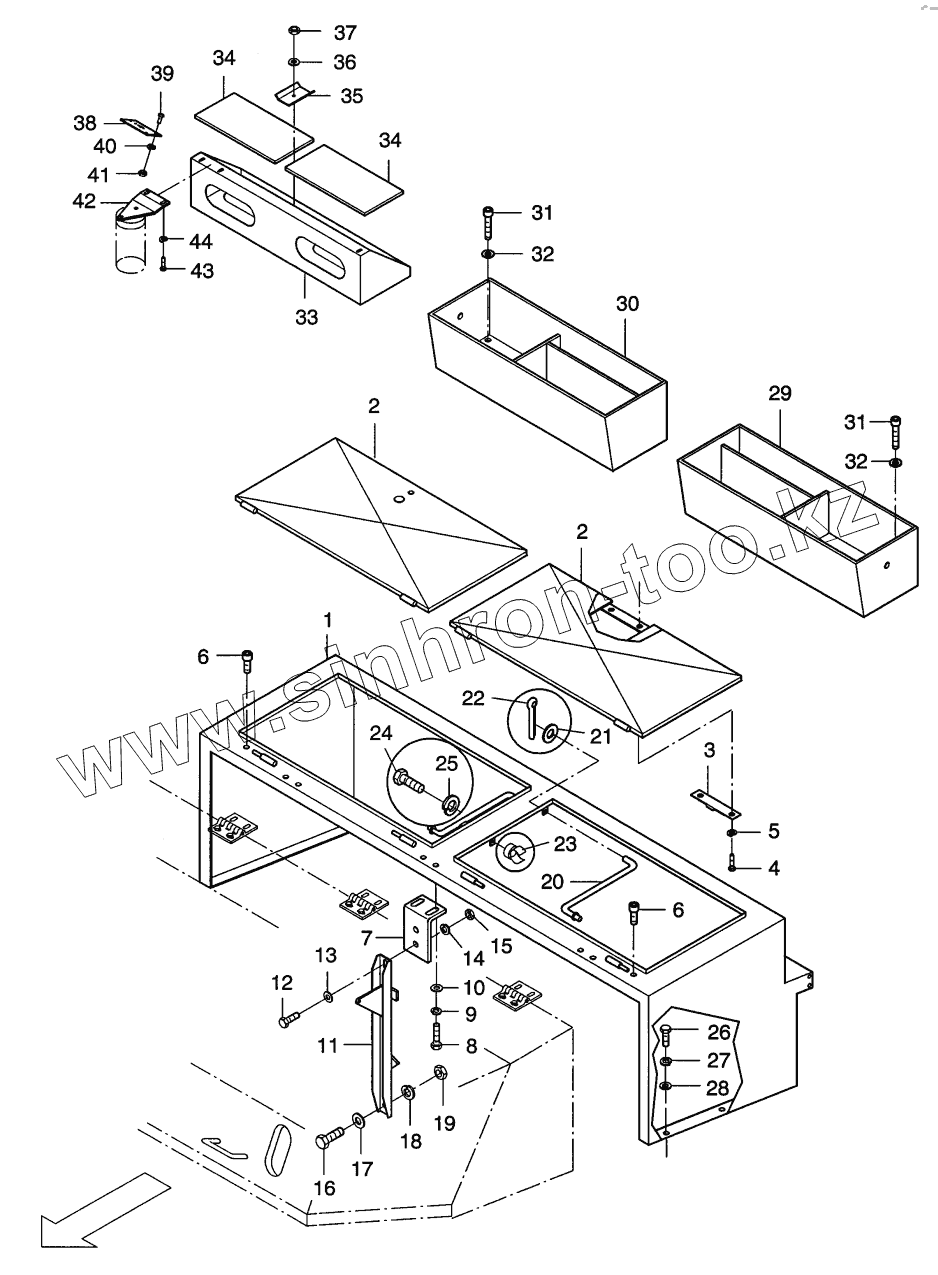

Каталог запасных частей к технике: DYNAPAC Dynapac F181C. Hood
1
2
2
3
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
33
34
34
35
36
37
38
39
40
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 657-10140 | 657-10140 | Hood | |
| 1 | 657114201 | Hood | |
| 2 | 656114244 | Cover | |
| 3 | 930579800 | Lock | |
| 3 | 956114040 | Punch key | |
| 4 | 500004 | Hex. screw | |
| 5 | 936905009 | Spring washer | |
| 6 | 508001 | Cylinder screw | |
| 7 | 722114258 | L-profile | |
| 8 | 500029 | Screw | |
| 9 | 49900025 | Screw retention | |
| 10 | 600009 | Washer | |
| 11 | 713114260 | Support | |
| 12 | 500193 | Screw | |
| 13 | 600009 | Washer | |
| 14 | 49900032 | Screw retention | |
| 15 | 570008 | Hex. nut | |
| 16 | 500093 | Screw | |
| 17 | 600011 | Washer | |
| 18 | 49900008 | Screw retention | |
| 19 | 570008 | Hex. nut | |
| 20 | 866110665 | Safety rod for hood | |
| 21 | 600009 | Washer | |
| 22 | 936790490 | Split pin | |
| 23 | 953509712 | Clip | |
| 24 | 500013 | Hex. screw | |
| 25 | 49900080 | Screw retention | |
| 26 | 500029 | Screw | |
| 27 | 49900025 | Screw retention | |
| 28 | 600008 | Washer | |
| 29 | 866110631 | Tool box left | |
| 30 | 866110630 | Tool box right | |
| 31 | 508029 | Screw | |
| 32 | 49900025 | Screw retention | |
| 33 | 654111701 | Batterie support | |
| 34 | 930121159 | Wooden plate | |
| 35 | 654111715 | Clamping plate | |
| 36 | 600006 | Washer | |
| 37 | 938481008 | Nut | |
| 38 | 712111733 | Holder | |
| 39 | 500021 | Screw | |
| 40 | 49900161 | Screw retention | |
| 41 | 929233 | Nut | |
| 42 | 712111728 | Holder for oil filter | |
| 43 | 500021 | Screw | |
| 44 | 49900161 | Screw retention |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
