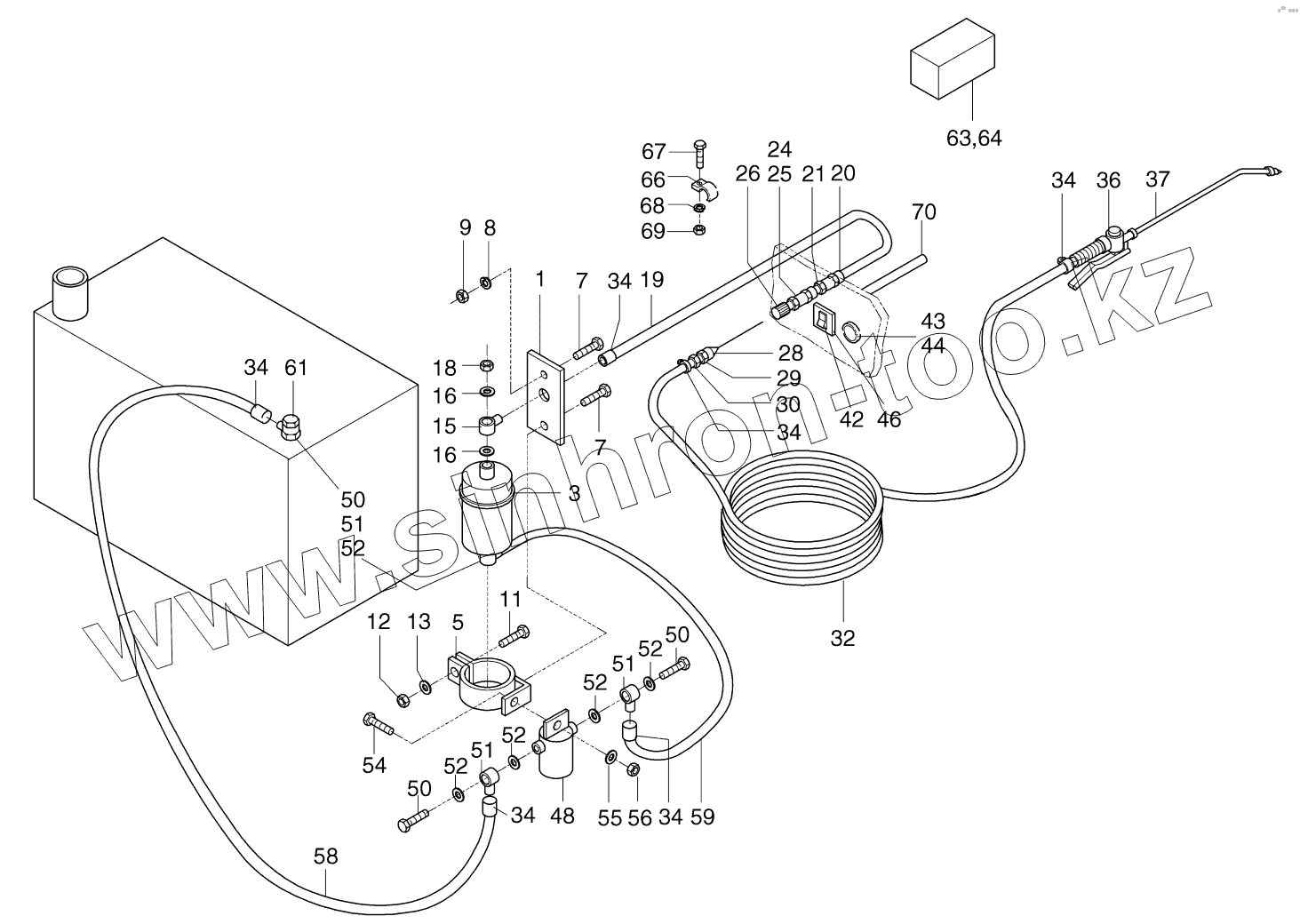

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 754901300 | 754901300 | Diesel spray equipment | |
| 754901340 | 754901340 | Circuit diagram | |
| 754-13110 | 754-13110 | Diesel spray equipment | |
| 1 | 754901301 | Flat steel | |
| 3 | 967312011 | Diesel pump | |
| 5 | 675901245 | Pump holder | |
| 7 | 500021 | Screw | |
| 8 | 49900161 | Screw retention | |
| 9 | 929233 | Nut | |
| 11 | 500138 | Hex. screw | |
| 12 | 929233 | Nut | |
| 13 | 49900161 | Screw retention | |
| 15 | 930409015 | Ring parts | |
| 16 | 932702321 | Cu-seal ring | |
| 18 | 939739091 | Cap nut | |
| 19 | 930667500 | Hose | |
| 20 | 665404 | Smash connection | |
| 21 | 961183606 | Reduction screwing | |
| 24 | 961106008 | Bulkhead union | |
| 25 | 932206067 | O-ring | |
| 26 | 933538630 | Coupling sleeve | |
| 28 | 933539226 | Coupling plug | |
| 29 | 932206067 | O-ring | |
| 30 | 935555248 | Threaded socket | |
| 32 | 930667500 | Hose | |
| 34 | 953502699 | Hose cap | |
| 36 | 956168654 | Quick actuating valve | |
| 37 | 956166675 | Spraying pipe | |
| 37 | 956192420 | Nozzle | |
| 42 | 977532018 | Toggle switch | |
| 43 | 977800203 | Indicator lamp, yellow | |
| 44 | 977335752 | Bulb | |
| 46 | 990000932 | Label | |
| 48 | 900505841 | Fuel filter | |
| 48 | 900505514 | Filter element | |
| 48 | 900505733 | Sealing washer | |
| 50 | 939210008 | Hollow screw | |
| 51 | 665683 | Ring stud | |
| 52 | 932702323 | Sealing | |
| 54 | 500014 | Hex. screw | |
| 55 | 49900080 | Screw retention | |
| 56 | 938190514 | Nut | |
| 58 | 930667500 | Hose | |
| 59 | 930667500 | Hose | |
| 61 | 866901390 | Suction stud | |
| 63 | 977455711 | Fuse box | |
| 64 | 977454250 | Fuse | |
| 66 | 934362095 | Clip | |
| 67 | 500013 | Hex. screw | |
| 68 | 49900080 | Screw retention | |
| 69 | 938190514 | Nut | |
| 70 | 754901370 | Cable harness |
