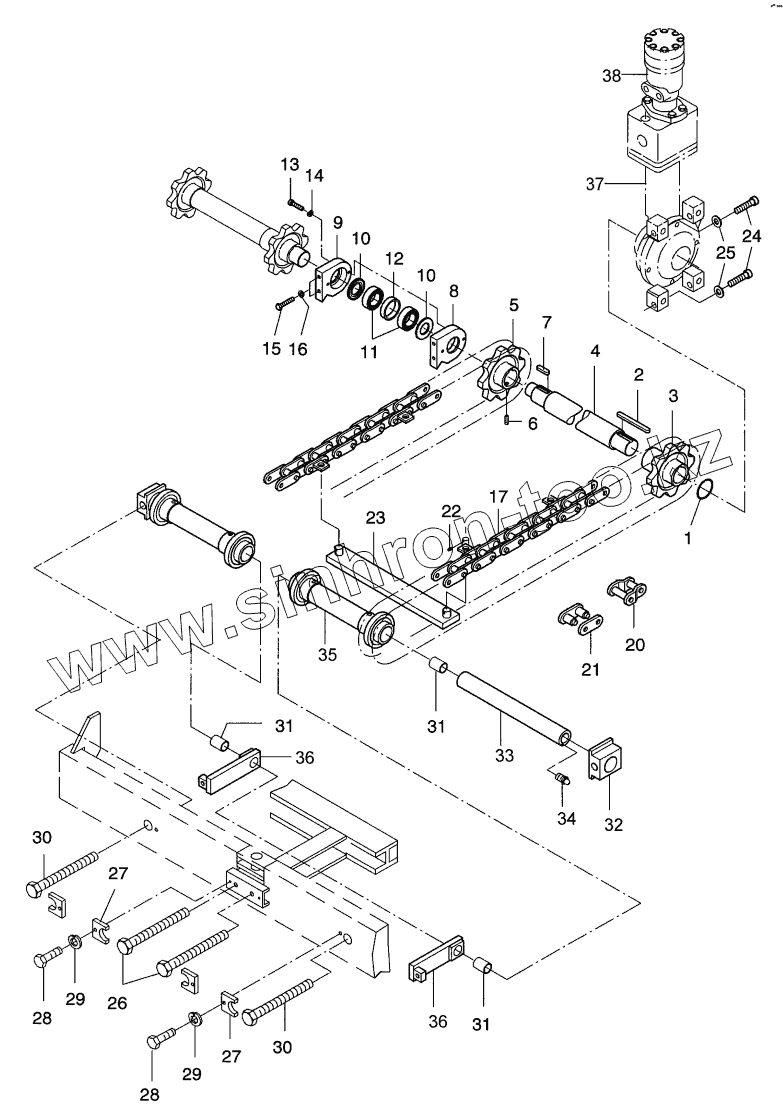

Каталог запасных частей к технике: DYNAPAC Dynapac F181C. Conveyor
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
20
21
22
23
24
25
26
27
27
28
28
29
29
30
30
31
31
31
32
33
34
35
36
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 756-05102 | 756-05102 | Conveyor | |
| 1 | 932820083 | Circlip | |
| 2 | 931701638 | Feather key | |
| 3 | 770060110 | Chain wheel | |
| 4 | 774060725 | Drive shaft | |
| 5 | 774060727 | Chain wheel | |
| 6 | 516029 | Threaded pin | |
| 7 | 931701634 | Feather key | |
| 8 | 882060130 | Bearing ring, left | |
| 9 | 882060131 | Bearing ring, right | |
| 10 | 932580716 | Nilos ring | |
| 11 | 935011763 | Roller bearing | |
| 12 | 872060135 | Spacer | |
| 13 | 508080 | Cylinder screw | |
| 14 | 947887 | Spring washer | |
| 15 | 500121 | Screw | |
| 16 | 49900032 | Screw retention | |
| 17 | 933023075 | Conveyor chain | |
| 20 | 933058080 | Coupler link | |
| 21 | 933083010 | Chain lock | |
| 22 | 931500924 | Clamping sleeve | |
| 23 | 750132506 | Conveyor bar | |
| 24 | 937930500 | Screw | |
| 25 | 939010410 | Washer | |
| 26 | 774061010 | Tension screw | |
| 27 | 750130070 | Safety plate | |
| 28 | 500048 | Screw | |
| 29 | 49900025 | Screw retention | |
| 30 | 774061022 | Tension screw | |
| 31 | 750130009 | Sleeve | |
| 32 | 774061020 | Guide sleeve | |
| 33 | 774061027 | Axle | |
| 34 | 935511210 | Grease nipple | |
| 35 | 750130600 | Reversing roller | |
| 36 | 774061032 | Guide plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
