Каталог запасных частей к технике: DYNAPAC Dynapac F1800C. 4812236026 Support plate

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Wear part and Inspection kits 4812017339 Wear part kit auger wing 4812018543 Wear part kit hopper rubber, standard 4812201806 Wear part kit rubber plates, hydr. Front flap 4812017331 Wear part kit conveyor plate 4812017330 Wear part kit conveyor guide plate 4812017328 Wear part kit chain guide 4812017327 Wear part kit conveyor turn 4812017324 Wear part kit conveyor drive 4812227023 Conveyor chain 4812017338 Wear part kit rubber baseplate 4812009772 Service kit 500 h 4812017346 Service kit 500 h plus 4812017353 Service kit 1000 h 4812018810 Service kit 1000 h plus 4812023917 Filter kit 1000h Lubricants and operating substances 4812235534 Main frame 4812011697 Maintenance lid 4812011991 Splash guard 4812018329 Steering guide 4812235535 Levelling arm 4812235706 Side bar guiding, l.h. 4812235840 Side bar guiding, r.h. 4812235705 Levelling arm, l.h. 4720000097 Side arm guiding 4812232214 Side arm guiding 4812235849 Levelling arm, r.h. 4812235779 Eccentric lever, l.h. 4812235782 Eccentric lever, r.h. 4812235704 Adjusting screw 4812013077 Locking 4812013078 Side bar guiding back 4812010594 Push roller 4812227893 Push roller 4812236677 Push roller 4812201592 Hydr. push roller 4812235011 Hopper with bulk meterial flap 4812232424 Front hopper, middle 4812234998 Hopper, r.h. 4812234609 Covering flap, r.h. 4812234999 Hopper, l.h. 4812234627 Covering flap, l.h. 4812235962 Kit hopper 4812232761 Hopper with bulk meterial flap 4812232769 Hopper, r.h. 4812232770 Hopper, l.h. 4812235012 Hopper with hydrl. front flap 4812235604 Flap 4812235000 Hopper, r.h. 4812235001 Hopper, l.h. 4812235513 Front hopper, r.h. 4812235527 Front hopper, l.h. 4812201596 Hydr. hopper with front flap 4812023661 Control block 4812016335 Control block 4812235477 Covering 4812235422 Door plate, l.h. 4812235409 Door plate, r.h. 4812230593 Intermediate section 4812230591 Hood, r.h. 4812034713 Locking 4812235519 Hood, l.h. 4812215155 Support plate, l.h. 4812215156 Support plate, r.h. 4812234006 Cover plate 4812236026 Support plate 4812235987 Lock plate 4812236027 Mounting bracket 4812235497 Cover plate, l.h. 4812235499 Side cover, r.h. 4812234017 Cover plate, r.h. 4812235490 Side cover, l.h. 4812235922 Wheel cover, r.h. 4812015040 Scale 4812228512A Ascent, gas screed 4812228663 Ascent, middle 4812229210 Ascent 4812228660A Ascent, l.h. 4812228661A Ascent, r.h. 4812228638A Hand rail 4812228664 Holder for remote control 4812231015 Holder, electrical Box 4812017858 Socket holder 4812228513A Ascent, elec. screed 4812228662A Ascent, r.h. 4812228712 Cover 4812228662B Ascent, r.h. 4812201975 Cover 4812230940A Ascent, l.h. 4812236074 Platform, without weather roof 4812230653 Cover 4812230695 Bottom plate 4812236084 Console body 4812236087 Operator board 4812230890 Clamping lever 4812233983 Telescopic pipe set 4812230735 Console 4812026356 Steering unit 4812014593 Steering unit 4812018505 Seat mount, l.h. 4812228684 Mounting bracket 4812230555 Cover plate footwell 4812018504 Seat mount, r.h. 4812230911 Stop plate 4812015194 Clamping plate 4812236075 Platform, weather roof (T) 4812229561 Hyd. roof lifting cpl. Kit 4812227560 Hyd. roof adjustment 4812236094 Roof frame 4812230556 Joint rod 4812018842 Holder, l.h. 4812018839 Holder, r.h. 4812215225 Side roof, l.h. 4812215226 Side roof, r.h. 4812236553 Holder 4812236815 Socket pin 4812235768 Drive 54kw Tier 3 4812007909 Motor 4812235914 Fuel tank 4812236036 Battery support 4812235770 Cooler 4812235771 Cooler 4812236238 Combined cooler 4812236040 Side cover 4812236233 Plate 4812236021 Disc frame 4812236010 Mounting frame 4812235932 Fuel system 4812018242 Hose packet 4812235871 Air filter system 4812235916 Exhaust system 4812230755 Mounting parts 4812009705 Service parts TD 2.9 L04 TIER3 4812236061 Pump distributor gear 4812235856 Engine suspension 4812016114 Pump distributor gear 4812233870 Gearbox 4812010703 Variable displacement pump 4812024264 Hydraulic pump 4812024816 Pump distributor gear 4812235769 Drive 54kw Tier4 Motor TD2.9L4 4812235688 Exhaust system Service parts TD 2.9 L04 TIER4 4812225888 Track group 4812225889 Track group, l.h. 4812010424 Idler 4812010635 Drive gear box 4812233976 Track chain 4812007389 Chain with rubber plates 4812225890 Track group, r.h. 4812008730 Conveyor, Conv. 4812011565 Conveyor drive 4812010042 Conveyor drive 4812010005 Conveyor bearing 4812016235 Conveyor guide 4812228001 Guide plate, cpl. 4812227999 Guide plate 4812228005 Conveyor motor 4812228003 Conveyor motor 4812228014 Conveyor limit switch 4812228008 Conveyor limit switch, conv. cpl 4812014391 Conveyor limit switch, r.h. 4812236100 Conveyor limit switch, r.h. 4812014381 Conveyor limit switch, l.h. 4812236099 Conveyor limit switch, l.h. 4812228016 Chain guide, cpl. 4812228015 Chain guide 4812235764 Auger O320mm, 1.71m 4812235473 Auger 4812013689 Outer support, l.h. 4812013740 Outer support, r.h. 4812235738 Material chute 4812235472 Auger O320mm, 2.20m 4812235474 Mounting parts 4812235475 Material chute 4812019816 Worm extension, r.h. 4812235380 Worm extension, l.h. 4812235733 Auger O320mm, 3.15m 4812235736 Mounting parts 4812013814 Extension, l.h. 4812013813 Extension, r.h. 4812024413 Hydraulic 4812024419 Hydraulic, drive system 4812015999 Brakevalve 4812024410 Brakevalve 4812044338 Filter 4812024436A Hydraulic, work hydraulic 1 4812018005 Control block 4812012789 Valve support 4812024438 Hydraulic, work hydraulic 2 4812012725 Valve support 4812019111 Control block 4812024441 Hydraulic, fan 4812024443 Hydraulic, tank collector 4812226957 Hydraulic tank 4812010357 Return/succion filter 4812227613 Without hydrl. tamper 4812227559 Hydr. Tamper 4812017863A Electric 4812011421 Electric 4812019155A Operating panel, cpl. 4812024200 Operating panel 4812024192 Cable W21 4812016676 Cable W73 4812016655 Operating panel 4812024230 Retrofit kit display motometer 4812012314 Cable W21 4812011450 Junction box 4812011488 Mainboard 4812201239 Junction box 4812228999 Junction box 4812228999A Junction box 4812012323 Cable W30 4812011460 Wiring 4812012299 Cable W1 4812012301 Cable W3 4812012303 Cable W4 4812012304 Cable W 4812012305 Cable W6 4812047525 Cable W 4812012311 Cable W14 4812012312 Cable W15 4812012313 Cable W16 4812012318 Cable W25 4812012319 Cable W26 4812012320 Cable W27 4812023290 Cable W29 4812233644 Cable W22 4812013450 Cable W40 4812014502 Strapping plug 4812016723 Cable W36 D977436121 Ground strap 4812017201 Plug 4812201558 Wiring 4812201557 Cable W25 4812201461 Cable W45 4812012549 Remote control, con. 4812018031 Housing 4812012550 Electric Remote control 4812019165 Vandalism protection 4812019971 Data storage device 4812232767 Without fume absorbing system 4812227605 Without fume control 4812015766 Drivers seat, standard 4812009466 Drivers seat, cpl. 4812201248 Vertical adjustment 4812042023 Ratchet 4812201247 Vertical adjustment, hyr. 4812227562 High adjustable auger 4812015767 Drivers seat, comfort D953420382 Luxery seat (Grammer) 4812030001 Seat heater 4812015763 Sonic sensor 4812015282 Electric sonic sensor 4812013163 Harness W6 4812014661 Hydrl.partial flow filter 4812012640 Hydrl.partial flow filter 4812010982 Track cleaner, cpl. 4812012373 Track cleaner 4812043349 Locking laver 4812013303 LED Spotlight for auger 4812013302 Spotlight for auger 4812013288 LED Spot light, 2 front / rear with roof 4812013290 LED Spot light, 2 front / rear without roof 4812013291A Rotaflare light, with roof 4812012455 Electrik rotaflare light 4812012450 Slip-on pipe 4812011482 Holder for rotaflare light 4812013292 Rotaflare light, without roof 4812014300 Central lubrication 4812024907 Kit central lubrication f. auger 4812036507 Extension f. fuel filling system 4812014357 Kit, pump 4812228764 Fire extinguisher 4812228696 Emulsion spray system 4812216031 Spray arm 4812227321 Tank with pump 4812012683 Hose 4812010335 El. option 4812034869 Gloria spraying device 4812012823 Back-up alarm 4812012884 Socket 230V/50HZ 4812228765 First-aid kit 4812227611 Hydr. profile adjustment 4812236324 Option England with truck assist 4812013436 Option England 4812012824 El. option england 4812236306 Option England without truck assist 4812230936A Anti-fall device 4812230939A Side window 4812215224 Shining balloon 4812012899 Electric lighting 4812012833 12V installation 4812012325 Cable W34 4812024853 Cover 4812235845 Generator drive 12,5KVA 4812023340 Cable W1 4812215784 Coupler 4812024541 Turnbuckle 4812009244 Tools and accessories 4812017030 GPS installation 4812013038 GPS module 4812004013 Moba gradline 2+1 D900624870 Tool box 4812004014 Moba gradline 1+1 4812004015 MOBA MATIC 2+1 4812004016A MOBA MATIC 1+1 D900624831 Altitude control 4812015156 Decals 4812202904 Sticker 481220901 Symbol 4812202976 Symbol 4812231606 Tools and accessories 4812230789 Tool box 4812009821 Tools and accessories Ultrasonic thickness guage Tension tester Frequency tension tester Infrared thermometer Test adapter Welding protection Color Dynapac Service tool bodas Magnet tester Digital pressure gauge kit Frequency and amplitude meter Spare key

1

2

3

3

4

5

6

7

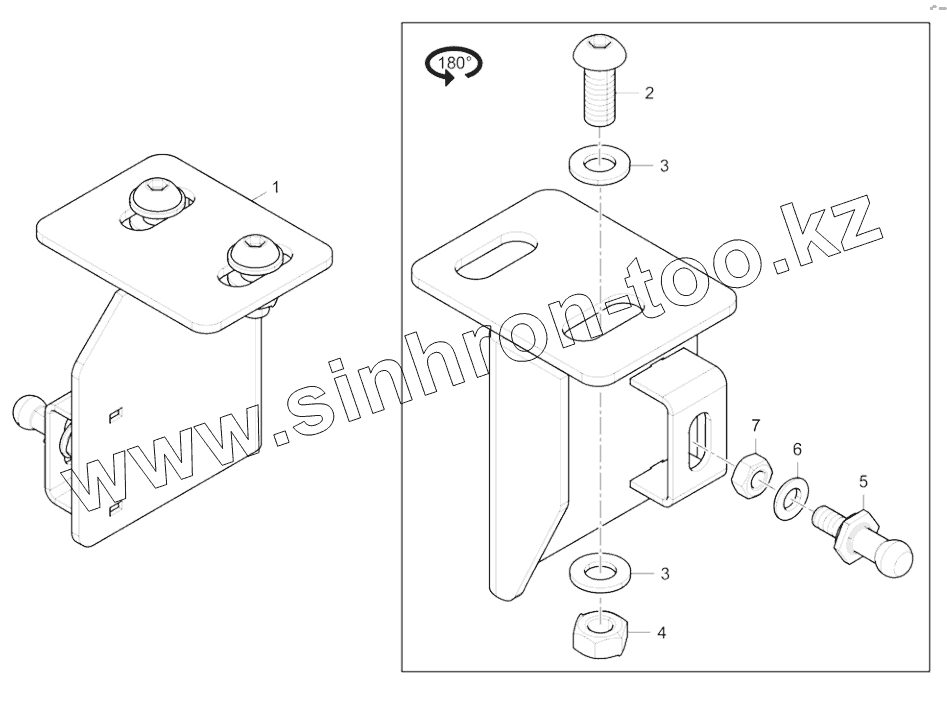

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812236025		Retainer
2	0215001064		Hexagon socket button head screw
3	0301233500		Plain washer
4	0266211000		Hexagon nut
5	4812015291		Bolt
6	0301232100		Plain washer
7	5730015118		Hexagon nut

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
