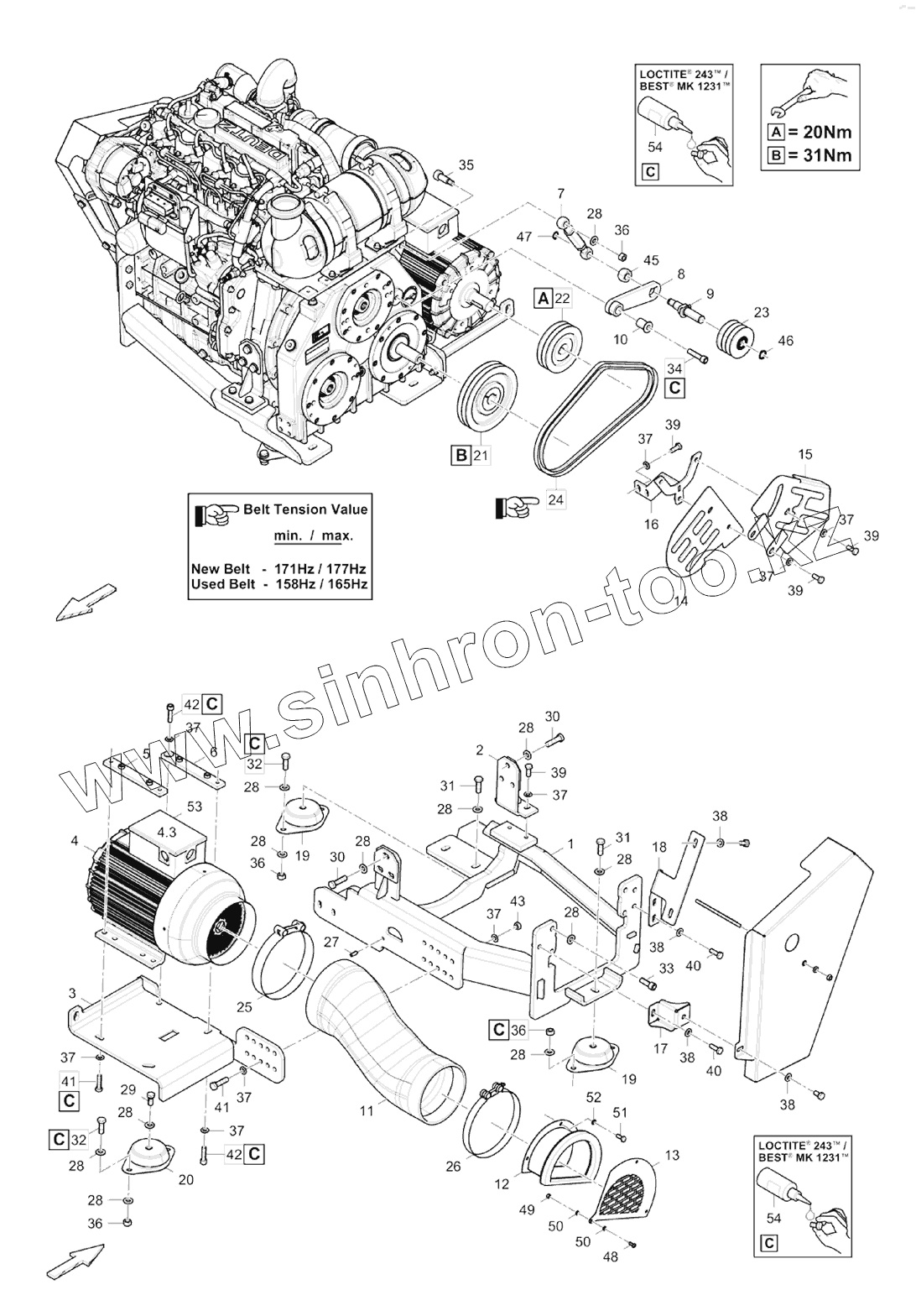

Каталог запасных частей к технике: DYNAPAC Dynapac F1200CS/CS. 4812237477 Option Generator
1
2
3
4
4.3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
28
28
28
28
28
28
28
28
28
28
28
29
30
30
31
31
32
32
33
34
35
36
36
36
36
37
37
37
37
37
37
37
37
37
38
38
38
38
39
39
39
39
40
40
41
41
42
42
43
45
46
47
48
49
50
50
51
52
53
54
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812229996 | Engine frame | |
| 2 | 4812229999 | Engine mount | |
| 3 | 4812236202 | Console | |
| 4 | 4812202455 | Generator | |
| 4.1 | D977050932 | Generator | |
| 4.2 | 4812006176 | Electr. governor | |
| 4.2.1 | D977365414 | Cable x m | |
| 4.2.2 | 4812035685 | Plug | |
| 4.2.3 | 4812035509 | Female contact | |
| 4.3 | 4812202288 | Generator cable | |
| 5 | 4812023817 | Rail, r.h. | |
| 6 | 4812024503 | Rail, l.h. | |
| 7 | 4812024541 | Turnbuckle | |
| 8 | 4812024497 | Tension arm | |
| 9 | 4812024468 | Bolt | |
| 10 | 4812024501 | Sleeve | |
| 11 | 4812232642 | Air guide hose | |
| 12 | 4812008720 | Air intake | |
| 13 | 4812230107 | Cover plate | |
| 14 | 4812202654 | Guard plate, l.h. | |
| 15 | 4812236255 | Guard plate, r.h. | |
| 16 | 4812232660 | Holder plate | |
| 17 | 4812017271 | Support plate | |
| 18 | 4812232697 | Support plate | |
| 19 | 4812008605 | Vibration damper | |
| 20 | 4812008606 | Vibration damper | |
| 21 | 4812045869 | V-belt pulley | |
| 21.1 | 4812017319 | V-belt pulley | |
| 21.2 | 4812017297 | Taperlock sleeve | |
| 22 | 4812045868 | V-belt pulley | |
| 22.1 | 4812017318 | V-belt pulley | |
| 22.2 | 4812017290 | Taperlock sleeve | |
| 23 | 4812202826 | V-belt pulley | |
| 23.1 | 4812202820 | V-belt pulley | |
| 23.2 | 4812202810 | Roller bearing | |
| 23.3 | 4812202806 | Circlip | |
| 24 | 4812202694 | V-belt | |
| 24.1 | 4812202686 | V-belt | |
| 25 | 4812245235 | Clamp | |
| 26 | D934367019 | Clamp | |
| 27 | 0108135300 | Dowel pin | |
| 28 | 0333310052 | Flat washer | |
| 29 | 0147140003 | Hex head screw | |
| 30 | 5530999900 | Hexagon head screw | |
| 31 | 0147140203 | Hex. head screw | |
| 32 | 0147140103 | Screw | |
| 33 | 0211140203 | Hex socket screw | |
| 34 | 5540111000 | Hexagon socket head cap screw | |
| 35 | 0223400067 | Fitting screw | |
| 36 | 0266211200 | Hexagon nut | |
| 37 | 0333310051 | Lock washer | |
| 38 | D939776115 | Washer | |
| 39 | 0147136203 | Hex. head screw | |
| 40 | 0147136303 | Screw | |
| 41 | 0147196264 | Bolt | |
| 42 | 0211136503 | Screw | |
| 43 | 0266211100 | Nut hexagon | |
| 45 | 5730007674 | Hexagon nut | |
| 46 | 4700150008 | Circlip | |
| 47 | 4749900941 | Circlip | |
| 48 | 0215000620 | Hexagon socket button head screw | |
| 49 | 5730015118 | Hexagon nut | |
| 50 | 0333310045 | Schnorr-lock washer | |
| 51 | 0147132303 | Hexagon bolt | |
| 52 | 0333310036 | Schnorr-lock washer | |
| 53 | 4812202404 | Electric / heating | |
| 54 | 4747400034 | Thread locking |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
