Dynapac F1200CS/CS
4812045937 Basic operation width
Каталог запасных частей к технике: DYNAPAC Dynapac F1200CS/CS. 4812045937 Basic operation width
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
Wear part and Inspection kits
4812013128 Rubber KIT, hopper with frontflap
4812013164 Rubber KIT, standard hopper
4812009770 Wear part kit conveyor chain
D299000828 Wear part kit reversing roller
D299000827 Wear part kit conveyor drive
4812009766 Wear part kit supporting surface
4812009758 Wear part kit conveyor plates
4812215802 Wear part kit conveyor plates
4812009764 Wear part kit roof profile
4812009691 Wear part kit rubber plates
4812009772 Service kit 500 h
4812017346 Service kit 500 h plus
4812009686 Service kit 1000 h
4812018819 Service kit 1000 h plus
4812023896 Filter kit 1000h
L180000010 Lubricants and operating substances
4812010134 Gr.01 Main frame
4812229106 Main frame
4812045586A Main frame
4812009351 Mounting parts
Dip stick
4812045322 Gr.03 Push roller
4812045325A Gr.05 Hopper
4812229665 Hopper, l.h.
4812229659 Hopper, r.h.
4812005821A Gr.05 Hopper, front hopper flap
4812045482 Hydraulic, front flap
Control block
4812045323 Gr.06 Side Screed arms, mech. locked
4812001196A Level
4720005467B Leveling
D455143900A Fuse
4812045326 Gr.12 Covering
4812005326 Vandalism protection
4812005326A Vandalism protection
4812046738 Engine hood
4812004093 Battery bracket
4812005468 Engine hood
4812046504 Door, l.h.
Support rod
4812046508 Door, r. h.
4812046738A Engine hood
4812005468A Engine hood
4812228353 Door, r.h.
4812228459 Cover
4812046738B Engine hood
4812045329A Gr.12 Ascension
4812046034A Foot step extension
4812231868 Ascent
4812045330 Gr.07 Drive Tier4f
Motor TD2.9L4
4812011316 Air filter
4812011316A Air filter
4812045500A Air filter
Attaching parts
Attaching parts, rev. A
Exhaust system
Fuel system
Service parts TD 2.9 L04 TIER4
4812007864A Combined cooler
4812045668A Frame
Combined cooler
Water oil cooler
Combined cooler, cpl.
4812045503 Gr.08 Split gear box 4700689888
4812017118 Pump distributor gear
4812233870 Gearbox
4812045884 Gr.08 Split gear box
4812011208 Pump distributor gear
4812008305 Vibration damper
4812233239 Pump distributor gear, with generator - from S/N 1797, 1812, 1822-45, 1863 ff
4812016113 Pump distributor gear
4812233419 Pump distributor gear, without generator - from S/N 1797, 1812, 1822-45, 1863 ff.
4812045327 Gr.02 Track group
4812044132 Gearbox
D450163400 Reversing roller
4812008943 Chain with rubber plates
4812045327A Track group
4812045327B Track group
4812044161 Gr.04 Conveyor
4720006544 Conveyor turn
D455021000 Conveyor drive
Conveyor limit switch, r.h.
Conceyor limit switch, l.h.
4812044161A Conveyor
4812044161B Conveyor
Conveyor chain
4812046098 Gr.13 Auger O320mm, 1,2m
4812045937 Basic operation width
4812003329 Auger box
4812046072 Material chute
4812046099 Gr.13 Auger O320mm, 1,6m
4812045328 Auger
4720004837 Shaft plate, l.h.
4720004836 Shaft plate, r.h.
4812045478 Gr.09 Hydraulic
4812044832 Hydraulic, vibration
4812045481 Hydraulic, without tamper
4812045480 Hydraulic, Tamper
4812044830 Hydraulic, drive system
4812008897 Pump
D963155267 Valve block
4812044831 Hydraulik, auger/conveyor
4812008674 Valve block
4812044858 Control block
4812046046 Control block
4812044834 Hydraulic, fan
4812009044 Gear motor
4812044833 Work hydraulic
4812044856 Valve block
4812010274 Control block
4812010310 Control block
4812044835 Hydraulic tank, collector
4812202040 Return/succion filter
4812044835A Hydraulic tank, collector
4812007160 Hose package
4812007135 Screed in / out
4812007136 Vibration
4812007138 Tamper
4812046468 Gr.10 Electric
4812046469 Electric
4812046471 Control unit
4812045687 Steering unit
4812046471A Control unit
4812024186 Control unit
4812024181 Cable W21
4812024199 Retrofit kit display motometer
4812046470 Junction box
4812046894 Terminal box
4812009557 Cable W30
4812046472 Wiring
4812012513 Cable W22
D977436121 Ground strap
4812047535 Cable W21
4812047519 Cable W1
4812047521 Cable W3
4812047522 Cable W4
4812047523 Cable W5
4812047524 Cable W6
4812009741 Cable W40
4812047528 Cable W10
4812047530 Cable W12
4812047531 Cable W13
4812047532 Cable W14
4812047533 Cable W15
4812047534 Cable W16
4812047536 Cable W22
4812047537 Cable W25
4812047538 Cable W26
4812047539 Cable W27
4812047540 Cable W28
4812047541 Cable W29
4812006294 Cable W31
4812233536 Cable W34
4812019971 Data storage device
4812009469 Fire extinguisher
4812008768 Option LED working light
4812046197 Back-up alarm
4812046475 Back-up alarm
4812009359 Gloria spraying device
4812046543 Gas bottle support
4812009244 Tools and accessories
4812005188 Rotaflare light
4812046474 Electric rotaflare light
4812010352 Slip-on pipe
4812004752 Cable harness W13
4812007318 Remote control
4812004409 Remote control
4812046479 El. option
4812046480 Remote control
4812047544 Cable W33
4812005195 Spot light for auger
4812046478 El. option
4812025686 Spot light
4812006793 Spot light, LED
4812006791 Spot light, LED
4812006792 Cable
4812046200 Emulsion spray system
4812046476 Electric emulsion spray system
4812230801 Add on Emusion tank
4812229529 Tank
4812229722 Emulsion spray system
4812216031 Spray arm
4812002731 First-aid kit
D930520150 First-aid kit
4812237477 Option Generator
4812202288 Generator cable
4812024541 Turnbuckle
4812008720 Air intake
4812202404 Electric / heating
4812202327 Control box 10 KVA
4812230521 Vandalism protection
4812011888 Panolin package
4812045497 Hydrl.partial flow filter
4812215421 GPS installation
4812013038 GPS module
4812234451 Service kit, remote control
4812234669 Remote control
4812234668 Electrical, remote control
4812004015 MOBA MATIC 2+1
4812004016A MOBA MATIC 1+1
4812004013 Moba gradline 2+1
D900624870 Tool box
D900624801 Altitude control
D900624754 Inclination regulator
4812004014 Moba gradline 1+1
4812011781 Box MOBA-Matic
4812010934 Decals tracked paver
4812202979 Labeling
4812202981 Labeling
4812202980 Labeling
4812202982 Labeling
4812009821 Tools and accessories
Spare key
Frequency tension tester
Tension tester
Welding protection
Infrared thermometer
Color Dynapac
Dismantling tool (big pins)
Dismantling tool (smal pins)
Service tool bodas
Magnet tester
Digital pressure gauge kit
Frequency and amplitude meter
1
2
3
4
5
6
7
9
10
12
12
13
14
15
15

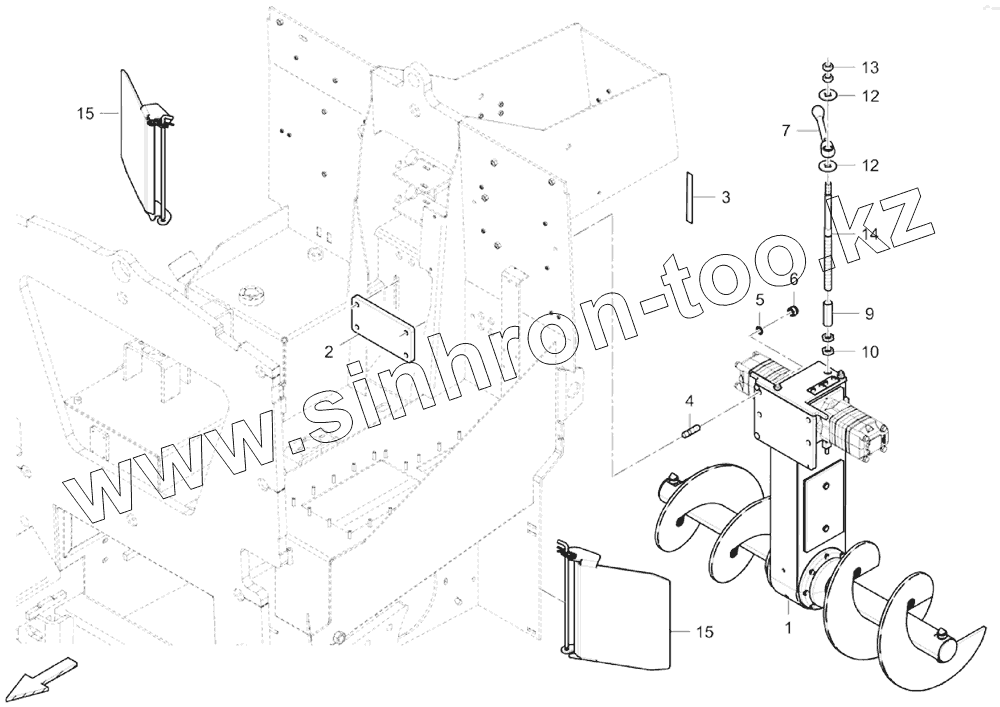

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812003329
Auger box
2
D455080905
Mounting plate
3
4812009719
Scale
4
0246113131
Stud
5
0333310042
Schnorr-lock washer
6
5730007656
Hexagon nut
7
4812003357
Ratchet
9
4812003355
Distance pipe
10
0261109165
Hexagon nut
12
4812003354
Washer
13
0266211400
Hexagon nut
14
4812005239
Threaded rod
15
4812046072
Material chute
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
