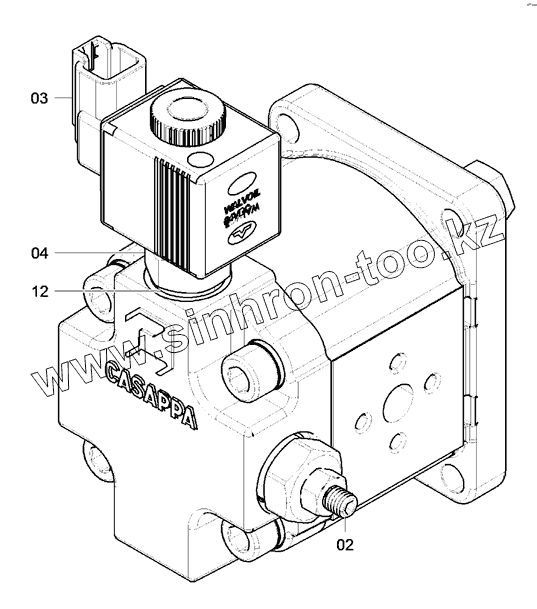

5. 4812009044 Gear motor

Каталог запасных частей к технике: DYNAPAC Dynapac F1200CS/CS. 4812009044 Gear motor

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Wear part and Inspection kits 4812013128 Rubber KIT, hopper with frontflap 4812013164 Rubber KIT, standard hopper 4812009770 Wear part kit conveyor chain D299000828 Wear part kit reversing roller D299000827 Wear part kit conveyor drive 4812009766 Wear part kit supporting surface 4812009758 Wear part kit conveyor plates 4812215802 Wear part kit conveyor plates 4812009764 Wear part kit roof profile 4812009691 Wear part kit rubber plates 4812009772 Service kit 500 h 4812017346 Service kit 500 h plus 4812009686 Service kit 1000 h 4812018819 Service kit 1000 h plus 4812023896 Filter kit 1000h L180000010 Lubricants and operating substances 4812010134 Gr.01 Main frame 4812229106 Main frame 4812045586A Main frame 4812009351 Mounting parts Dip stick 4812045322 Gr.03 Push roller 4812045325A Gr.05 Hopper 4812229665 Hopper, l.h. 4812229659 Hopper, r.h. 4812005821A Gr.05 Hopper, front hopper flap 4812045482 Hydraulic, front flap Control block 4812045323 Gr.06 Side Screed arms, mech. locked 4812001196A Level 4720005467B Leveling D455143900A Fuse 4812045326 Gr.12 Covering 4812005326 Vandalism protection 4812005326A Vandalism protection 4812046738 Engine hood 4812004093 Battery bracket 4812005468 Engine hood 4812046504 Door, l.h. Support rod 4812046508 Door, r. h. 4812046738A Engine hood 4812005468A Engine hood 4812228353 Door, r.h. 4812228459 Cover 4812046738B Engine hood 4812045329A Gr.12 Ascension 4812046034A Foot step extension 4812231868 Ascent 4812045330 Gr.07 Drive Tier4f Motor TD2.9L4 4812011316 Air filter 4812011316A Air filter 4812045500A Air filter Attaching parts Attaching parts, rev. A Exhaust system Fuel system Service parts TD 2.9 L04 TIER4 4812007864A Combined cooler 4812045668A Frame Combined cooler Water oil cooler Combined cooler, cpl. 4812045503 Gr.08 Split gear box 4700689888 4812017118 Pump distributor gear 4812233870 Gearbox 4812045884 Gr.08 Split gear box 4812011208 Pump distributor gear 4812008305 Vibration damper 4812233239 Pump distributor gear, with generator - from S/N 1797, 1812, 1822-45, 1863 ff 4812016113 Pump distributor gear 4812233419 Pump distributor gear, without generator - from S/N 1797, 1812, 1822-45, 1863 ff. 4812045327 Gr.02 Track group 4812044132 Gearbox D450163400 Reversing roller 4812008943 Chain with rubber plates 4812045327A Track group 4812045327B Track group 4812044161 Gr.04 Conveyor 4720006544 Conveyor turn D455021000 Conveyor drive Conveyor limit switch, r.h. Conceyor limit switch, l.h. 4812044161A Conveyor 4812044161B Conveyor Conveyor chain 4812046098 Gr.13 Auger O320mm, 1,2m 4812045937 Basic operation width 4812003329 Auger box 4812046072 Material chute 4812046099 Gr.13 Auger O320mm, 1,6m 4812045328 Auger 4720004837 Shaft plate, l.h. 4720004836 Shaft plate, r.h. 4812045478 Gr.09 Hydraulic 4812044832 Hydraulic, vibration 4812045481 Hydraulic, without tamper 4812045480 Hydraulic, Tamper 4812044830 Hydraulic, drive system 4812008897 Pump D963155267 Valve block 4812044831 Hydraulik, auger/conveyor 4812008674 Valve block 4812044858 Control block 4812046046 Control block 4812044834 Hydraulic, fan 4812009044 Gear motor 4812044833 Work hydraulic 4812044856 Valve block 4812010274 Control block 4812010310 Control block 4812044835 Hydraulic tank, collector 4812202040 Return/succion filter 4812044835A Hydraulic tank, collector 4812007160 Hose package 4812007135 Screed in / out 4812007136 Vibration 4812007138 Tamper 4812046468 Gr.10 Electric 4812046469 Electric 4812046471 Control unit 4812045687 Steering unit 4812046471A Control unit 4812024186 Control unit 4812024181 Cable W21 4812024199 Retrofit kit display motometer 4812046470 Junction box 4812046894 Terminal box 4812009557 Cable W30 4812046472 Wiring 4812012513 Cable W22 D977436121 Ground strap 4812047535 Cable W21 4812047519 Cable W1 4812047521 Cable W3 4812047522 Cable W4 4812047523 Cable W5 4812047524 Cable W6 4812009741 Cable W40 4812047528 Cable W10 4812047530 Cable W12 4812047531 Cable W13 4812047532 Cable W14 4812047533 Cable W15 4812047534 Cable W16 4812047536 Cable W22 4812047537 Cable W25 4812047538 Cable W26 4812047539 Cable W27 4812047540 Cable W28 4812047541 Cable W29 4812006294 Cable W31 4812233536 Cable W34 4812019971 Data storage device 4812009469 Fire extinguisher 4812008768 Option LED working light 4812046197 Back-up alarm 4812046475 Back-up alarm 4812009359 Gloria spraying device 4812046543 Gas bottle support 4812009244 Tools and accessories 4812005188 Rotaflare light 4812046474 Electric rotaflare light 4812010352 Slip-on pipe 4812004752 Cable harness W13 4812007318 Remote control 4812004409 Remote control 4812046479 El. option 4812046480 Remote control 4812047544 Cable W33 4812005195 Spot light for auger 4812046478 El. option 4812025686 Spot light 4812006793 Spot light, LED 4812006791 Spot light, LED 4812006792 Cable 4812046200 Emulsion spray system 4812046476 Electric emulsion spray system 4812230801 Add on Emusion tank 4812229529 Tank 4812229722 Emulsion spray system 4812216031 Spray arm 4812002731 First-aid kit D930520150 First-aid kit 4812237477 Option Generator 4812202288 Generator cable 4812024541 Turnbuckle 4812008720 Air intake 4812202404 Electric / heating 4812202327 Control box 10 KVA 4812230521 Vandalism protection 4812011888 Panolin package 4812045497 Hydrl.partial flow filter 4812215421 GPS installation 4812013038 GPS module 4812234451 Service kit, remote control 4812234669 Remote control 4812234668 Electrical, remote control 4812004015 MOBA MATIC 2+1 4812004016A MOBA MATIC 1+1 4812004013 Moba gradline 2+1 D900624870 Tool box D900624801 Altitude control D900624754 Inclination regulator 4812004014 Moba gradline 1+1 4812011781 Box MOBA-Matic 4812010934 Decals tracked paver 4812202979 Labeling 4812202981 Labeling 4812202980 Labeling 4812202982 Labeling 4812009821 Tools and accessories Spare key Frequency tension tester Tension tester Welding protection Infrared thermometer Color Dynapac Dismantling tool (big pins) Dismantling tool (smal pins) Service tool bodas Magnet tester Digital pressure gauge kit Frequency and amplitude meter

2

3

4

12

Позиция на иллюстрации	Заводской номер детали		Название детали
2	4812009332		Pressure relief valve
3	4812009331		Coil
4	4812009313		2/2 way valve
12	4812009333		Orifice

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
