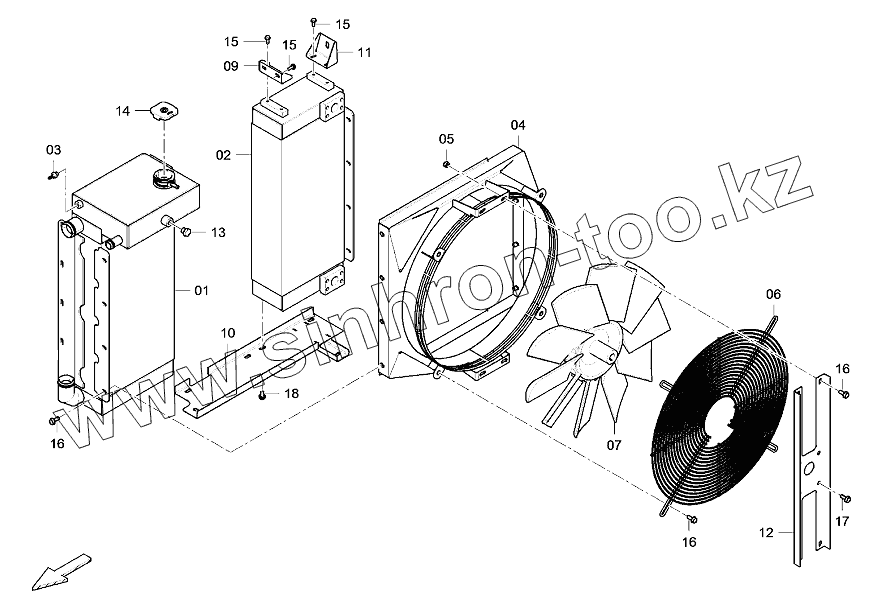

1
2
3
4
5
6
7
9
10
11
12
13
14
15
15
15
16
16
16
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812007923
Cooling element water
2
4812007924
Cooling element oil
3
4812007925
Flat hose nipple
4
4812007926
Hood
5
4812007927
Nut
6
4812007928
Protective grating
7
4812007929
Fan
9
4812007931
Connection piece
10
4812007932
Connection plate
11
4812007933
Connection plate
12
4812007934
Bracket
13
4812007935
Plug screw
14
4812007936
Tube pole cap
15
4812007937
Screw
16
4812007938
Screw
17
4812007939
Screw
18
4812007940
Screw
