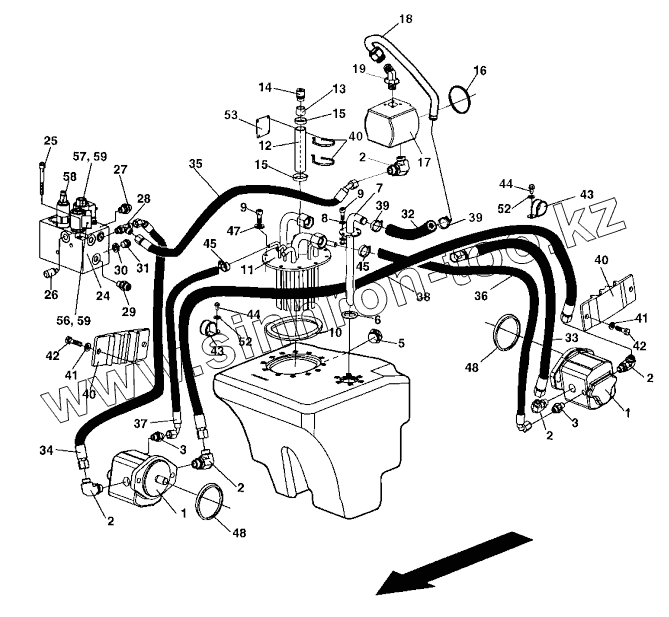

Каталог запасных частей к технике: DYNAPAC Dynapac CC800. Hydraulic vibration
/25.gif)
1
1
2
2
2
2
2
3
3
5
6
7
8
9
9
10
11
12
13
14
15
15
16
17
18
19
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
40
40
41
41
42
42
43
43
44
44
45
45
47
48
48
52
52
53
53
56
57
58
59
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700945340 | 4700945340 | Seal kit | |
| 1 | 4700390316 | Hydraulic motor | |
| 2 | 4700791699 | Elbow 90° | |
| 3 | 4700791541 | Straight connector | |
| 4 | 4700387278 | Hydraulic oil tank | |
| 5 | 4700791395 | Sight plug | |
| 6 | 4700791794 | O-ring | |
| 7 | 4700387758 | Suction pipe | |
| 8 | 4700904228 | Steel plain washer | |
| 9 | 4700508002 | Screw | |
| 10 | 4700792070 | O-ring | |
| 11 | 4700387713 | Return filler pipe | |
| 12 | 4700205067 | Rubber hose | |
| 13 | 4700357139 | Connector | |
| 14 | 4700357138 | Ventilating filter | |
| 15 | 4700313008 | Hose clamp | |
| 16 | 4700160101 | O-ring | |
| 17 | 4700395520 | Hydraulic pump | |
| 18 | 4700395497 | Suction pipe | |
| 19 | 4700792707 | Elbow 45° | |
| 24 | 4700388194 | Combination valve | |
| 25 | 4700508094 | Screw | |
| 26 | 4700901157 | Measuring nipple | |
| 27 | O-ringconnector | Straight o-ring connector | |
| 28 | 4700791700 | Tee-connector | |
| 29 | 4700791538 | Straight connector | |
| 30 | 4700162015 | Seal ring | |
| 31 | 4700232160 | Plug screw | |
| 32 | 4700791941 | Hydraulic hose | |
| 33 | 4700483649 | Hydraulic hose | |
| 34 | 4700483651 | Hydraulic hose | |
| 35 | 4700484257 | Hydraulic hose | |
| 36 | 4700389401 | Hydraulic hose | |
| 37 | 4700389402 | Hydraulic hose | |
| 38 | 4700483691 | Hydraulic hose | |
| 39 | 4700313035 | Hose clamp | |
| 40 | 4700388653 | Hose clamp | |
| 41 | 4700904229 | Washer | |
| 42 | 4700500053 | Hex. screw | |
| 43 | 4700283711 | Hose clamp | |
| 44 | 4700508092 | Screw | |
| 45 | 4700313108 | Hose clamp | |
| 47 | 4700904735 | Steel plain washer | |
| 48 | 4700160032 | O-ring | |
| 52 | 4700904556 | Steel plain washer | |
| 53 | 4700380343 | Sign BIO HYDRAULIC OIL | |
| 53 | 4700792773 | Sign BIO HYDRAULIC OIL PANOLIN | |
| 54 | 4700925802 | Cable ties | |
| 56 | 4700940885 | Solenoid valve | |
| 57 | 4700940886 | Solenoid valve | |
| 58 | 4700940888 | Valve | |
| 59 | 4700940887 | Coil |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
