Каталог запасных частей к технике: DYNAPAC Dynapac CC5200 VI. Seat comfort, galon suspensioned

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано DYNAPAC CC5200 VI (IIIA/T3) SN 10000407xxA020703- 4812160752 Service kit, 50h 4812161781 Service kit, 500h 4812161782 Service kit, 1000h 4812161783 Service kit, 2000h 4812155792 Eccentric shaft kit 4700938891 Drum rotation kit 4812161597 Shock absorber kit, drum 4812161595 Scraper blade kit Frame and hitch Front frame module Cover assembly Drum cover module Hitch module 4812117737 Articulated joint Ballast module Rear frame module Ballast module Front ending module Rear ending module Scrapers Scraper module 4700394340 Scraper bracket, cpl Bracket module Bracket module Bracket module Grab handle, lift Grab handle module Grab handle, release Sprinkler system Sprinkler pump module Water tank module Filling pipe module Scraper module, with nozzles Drum Drum drive Drum bearing Drum suspension Engine assembly Engine bracket module Belt guard module 4812126793 Engine Cummins QSF 3.8 T3 Air filter module Exhaust system module Cooling system Cooler stand module Cooling air casing Cover module Charge air cooler mounted Water cooler system Expansion tank module Fuel system std Fuel tank module Bracket kit Fuel hose assembly Draining module Engine hoods Engine hood module right Engine hood module left Engine hood module center Expansion tank cover module Rear frame cover module, left Rear frame cover module, right Noise absorbing kit Hydraulic system, filter, oil and leak_cc5200 Main hydraulic valve, cpl Hydraulic tank mounted Propulsion system Hydraulic pump & connectors 4700390602 Hydraulic pump 4812155785 Hydraulic pump Rotating group, cpl Valve block, cpl Control module Flushing valve 4812155786 Hydraulic pump Rotary group, cpl Valve block, cpl 4812155787 Hydraulic pump Rotary group, cpl Valve block, cpl Vibration system 4700395915 Hydraulic motor Vibration Hydraulic system, fan & steering Fan module Hose bracket, cross sliding Brake system Electric system, main harness Fuse and relay central module Power supply, std Battery shelf module Battery holder Power supply, cab Driving-, direction- & Licence plate lights_CC4200 Driving lights module Reversing light module Back-up alarm module Turn signals Registration plate light Steering column switch module 4812122868 Cab asymmetric comfort Roof edges Windscreen and wipers, front Ceiling, lower panels Screens, wipers and switches, cab right side 4812125328 Sliding window Interior, celing (lights, nozzles, hammer, hook, switch 2&3) Ventilation hoses, rear washer/wiper, power sockets Interior, front (air channel, loud speakers, antenna, relays, switch 1) AC Box Air condition installation (ACC) Door, left 4812122883 Door 4812125321 Sliding window, left Horn, power converter, protections Rear screen 4812122869 Cab asymmetric std Heater installation Rear screen ROPS module 4812122870 ROPS Handrails, harness, power sockets Handrail assembly Roof edges Rear covers, storage Mirrors Seat frame module Control module, sliding/turning Floor cassette module Seat, galon suspensioned Seat comfort, fabric suspensioned Seat comfort, galon suspensioned Control module, 4 buttons Forward-reverse control module Display module Instrument panel cover module SMV sign Fire extinguisher Air conditioning Condensor module Drying filter module 4812114257 Drying filter assy Compressor module Refrigerant hose kit

1

2

3

3

4

4

4

5

6

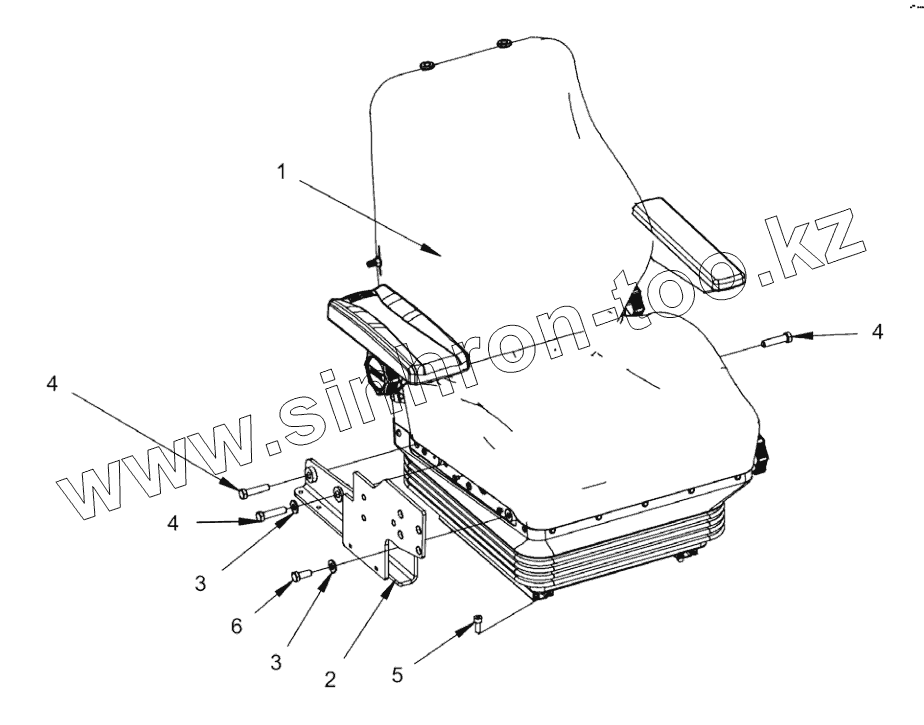

Позиция на иллюстрации	Заводской номер детали		Название детали
4700937892	4700937892		Seat switch
4700937620	4700937620		Arm rest, right
4812158367	4812158367		Arm rest wide, right
4700937621	4700937621		Arm rest, left
1	4812125361		Seat, galon suspensioned
2	4812124339		Control bracket
3	4700904230		Washer
4	4700792527		Screw
5	4700508092		Screw
6	4700500028		Screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
