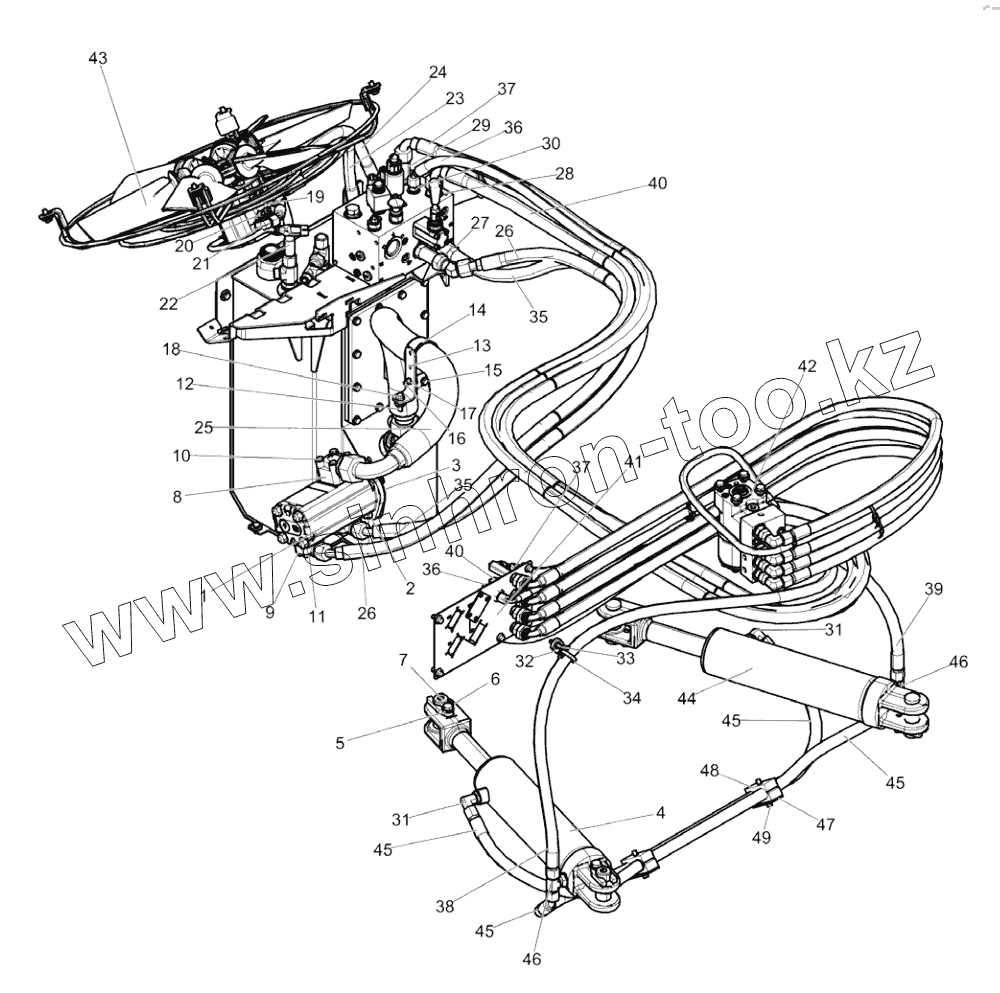

Каталог запасных частей к технике: DYNAPAC Dynapac CC5200 VI. Hydraulic system, fan & steering
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
31
32
33
34
35
35
36
36
37
37
38
39
40
40
41
42
42
42
43
44
45
45
45
45
46
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812121938 | Hydraulic pump | |
| 2 | 4812115511 | Gasket | |
| 3 | 4700791343 | Screw | |
| 4 | 4812123051 | Hydraulic cylinder | |
| 5 | 4700904231 | Washer | |
| 6 | 4700500051 | Hex. screw | |
| 7 | 4700792083 | Plug | |
| 8 | 4812119629 | Flange connector 90 | |
| 9 | 4812113633 | Flange connector | |
| 10 | 4700500067 | Screw | |
| 11 | 4700508048 | Hexagon socket head cap screw | |
| 12 | 4700388446 | Spacer | |
| 13 | 4812112530 | Bracket | |
| 14 | 4700904352 | Clamp | |
| 15 | 4700904735 | Steel plain washer | |
| 16 | 4700500075 | Screw, | |
| 17 | 4700902285 | Nut | |
| 18 | 4700500506 | Screw | |
| 19 | 4812113633 | Flange connector | |
| 20 | 4700508048 | Hexagon socket head cap screw | |
| 21 | 0570704101 | Connector Elbow 90 | |
| 22 | 4812123932 | Hydraulic hose | |
| 23 | 4812123933 | Hydraulic hose | |
| 24 | 4812123934 | Hydraulic hose | |
| 25 | 4812123935 | Hydraulic hose | |
| 26 | 4812123936 | Hydraulic hose | |
| 27 | 4700791823 | Adapter | |
| 28 | 4700791743 | Straight connector orfs | |
| 29 | 4700791821 | Straight connector orfs | |
| 30 | 4700791409 | Straight connector orfs | |
| 31 | 4700791841 | Elbow 90 orfs | |
| 32 | 4812117326 | Cable tie holder | |
| 33 | 4700500501 | Screw | |
| 34 | 4700313102 | Cable ties | |
| 35 | 4812123947 | Hydraulic hose | |
| 36 | 4812123948 | Hydraulic hose | |
| 37 | 4812123949 | Hydraulic hose | |
| 38 | 4812123950 | Hydraulic hose | |
| 39 | 4812123951 | Hydraulic hose | |
| 40 | 4812123953 | Hydraulic hose | |
| 41 | Hosebracket | Hose bracket | |
| 42 | 4812123056 | Pilot valve, steering | |
| 42 | 4700500028 | Screw | |
| 42 | 4700904557 | Washer | |
| 43 | Fan | Fan assembly | |
| 44 | 4812123051 | Hydraulic cylinder | |
| 45 | 4812124209 | Hydraulic hose | |
| 46 | 4700792586 | T-connector ORFS | |
| 47 | 4700287294 | Cover plate | |
| 48 | 4700903456 | Pipe clamp | |
| 49 | 4700500508 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
