Каталог запасных частей к технике: DYNAPAC Dynapac CC5200. Process mirrors

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано CC5200 (IIIB/T4i) SN 10000347xxA012727- 4812159352 Service kit, 50h Plus 4812159353 Service kit, 500h Cummins QSB 4.5 4812159354 Service kit, 500h Plus Cummins QSB 4.5 4812159355 Service kit, 1000h Cummins QSB 4.5 4812159356 Service kit, 1000h Plus Cummins QSB 4.5 4812159359 Service kit, 2000h Plus Cummins QSB 4.5 4812159669 Start up kit 4700950151 Scraper kit 4700945903 Eccentric shaft kit 4700938891 Drum rotation kit 4700945904 Shock absorber kit, drum 4812155698 Sprinkler kit Keys Fuses Front frame Front frame 4700391023 Steering cylinder Tank structure module Tank structure module 4700391307 Cover Hose support Hitch module 4812117737 Articulated joint Filling pipe Locking device module Grab handle module Rear frame Frame, rear Engine structure, module Engine structure Oil cooler Fan module Noise suppression plates Noise suppression, covers Grab handle module Sprinkler system Sprinkler pump module Sprinkler pump Sprinkler pump module Sprinkler pump Water hoses Sprinkler pump, backup Sprinkler pump, backup Sprinkler pump, additonal sprinkler/cocoa mat Sprinkler pumps Sprinkler pump module (2 pumps) Sprinkler pump mounted (2 pumps) Extra sprinkler tank/s Sprinkler tank Water hoses Filling pipe End frame, front End frame, front Frame End frame, extra tank Frame assy Fork, vibration side Fork, propulsion side Cover plate Hose clamp, propulsion side Hose clamp, vibration side Step, vibration side Step, propulsion side Scraper module, without nozzles Scraper module, with nozzles Scraper assy with nozzles Scraper assy 4700394340 Scraper bracket, cpl Grab handle, release Grab handle, release Grab handle, release Grab handle, lift Grab handle, lift offset/cocoa mat Cocoa mat module Cocoa mat assembly Cocoa mat bracket module Cocoa mat bracket Cocoa mat bracket module Cocoa mat bracket Process mirrors End frame, rear End frame, rear End frame, rear offset Frame Connection block Micro switch 4700391024 Steering cylinder Eyelet module SMV-sign Drum Drum bearing Drive unit 4700390604 Drum gear 4700390603 Hydraulic motor Engine hydraulic part End plate Drive unit 4812269526 Gear 4812120567 Hydraulic motor Housing, cpl Rotary group Connection plate, cpl Sensor 4812120568 Hydraulic motor Housing, cpl Rotary group Connection plate, cpl Vibrating unit Sauer 4700395915 Hydraulic motor Vibration Engine room Engine module 4812114023 Diesel engine Cummins QSB4.5 IIIB/T4i -97kW Air cooler hoses Water cooler hoses Air cleaner module Air cleaner hoses Exhaust system module Fuel hoses Charge air cooler Water cooler Expansion tank assembly Coolant hoses Belt guard Bracket kit Hydraulic system, front drum Hydraulic system, rear drum std Hydraulic system, rear drum offset Hydraulic valve module, offset/combi Hydraulic valve 4700391017 Hydraulic valve Hydraulic hoses, frame Hydraulic hoses, engine room Hydraulic pump module Hydraulic valve module Hydraulic valve 4700395924 Hydraulic valve Hydraulic pump module Hydraulic pump 4700390602 Hydraulic pump 4812155785 Hydraulic pump Rotating group, cpl Valve block, cpl Control module Flushing valve 4812155786 Hydraulic pump Rotary group, cpl Valve block, cpl 4812155787 Hydraulic pump Rotary group, cpl Valve block, cpl Hydraulic system, steering Std Hose bracket Hydraulic steering, sliding seat Carrier Steering, slideable 4700372424 Pilot valve, steering Electric cables, power supply Battery disconnector Battery disconnector Electric cables, power supply cab Electric cables, engine - ECU Standard ECU module Standard ECU assembly Electric cables, sensors/ horn/ back-up alarm Back-up alarm module Back-up alarm Horn module Horn Driving & side direction lights Driving lights, front Steering column switch module Cable harness and switch module Registration plate light module Registration plate light Driving lights, rear Turn signals Rotating beacon, working light Rotating beacon module Working light module H3 Drum edge lights Bracket Bracket GPS/DCA, Asphalt temp meter Cable harness kit, GPS Cable and Gateway GPS/DCA equipment assy Temp sensor module Temp sensor module Computer with holder Platform, no cab Platform with 4-post ROPS Decals basic kit 4812119369 Platform with 4-post ROPS Roof ROPS interior Manual box Hand rail, left Hand rail Hand rail, right Hand rail Hand rail Lunch box module Cab, asymmetric 4812119361 Cab, cpl Screens front/rear and ceiling Corner screens left and AC hood 24V socket and air nozzels Wipers front/rear and front ceiling Cab frame harness Heating installation Heater cover plate AC-kit Switch kit Door sliding screens Door complete Screens asymmetric right Lower screens front/rear and rear cover Lower screen and water system, left Lower screens and water system, right 4812119360 Cab comfort, cpl Interior Cab Evaporator kit 4812113623 Evaporator, cpl ACC kit 4812113624 ACC kit Decals basic kit Cab noise cover Rear view mirror Drivers seat Seat frame structure 4700391163 Steering column Seat, galon suspensioned Seat comfort, galon suspensioned Seat comfort, fabric suspensioned Seat belt 2dm Seat belt 2dm with reminder Seat belt 3dm Seat belt 3dm with reminder Controls, slidable and turning Cross sliding Carrier Drive control, cpl Drive control Drive control module Drive control Control handle Display unit Control panel cover Seat frame adapter module, rotating Decals Air conditioning Compressor module Condensor module Condensor Hose kit Compressor Hose kit AC Radio and cd player Radio and cd player module Power supply module Tachograph, Car stereo Tachograph with holder Car stereo module 12V Edge cutter Edge cutter, module 4700390998 Edge cutter, cpl 4700390999 Holder 4700391009 Bearing unit 4700387275 Hydraulic cylinder Cutting disc module Pressing roller, module Hydraulic valve module Hydraulic valve 4700391018 Hydraulic valve Disc/Roller holder Fire extinguisher/First Aid Cushion Fire extinguisher assembly Asphalt temperature meter Dyn@lyzer FleetLink module DCM Compaction meter with Evib

1

2

3

4

5

6

6

7

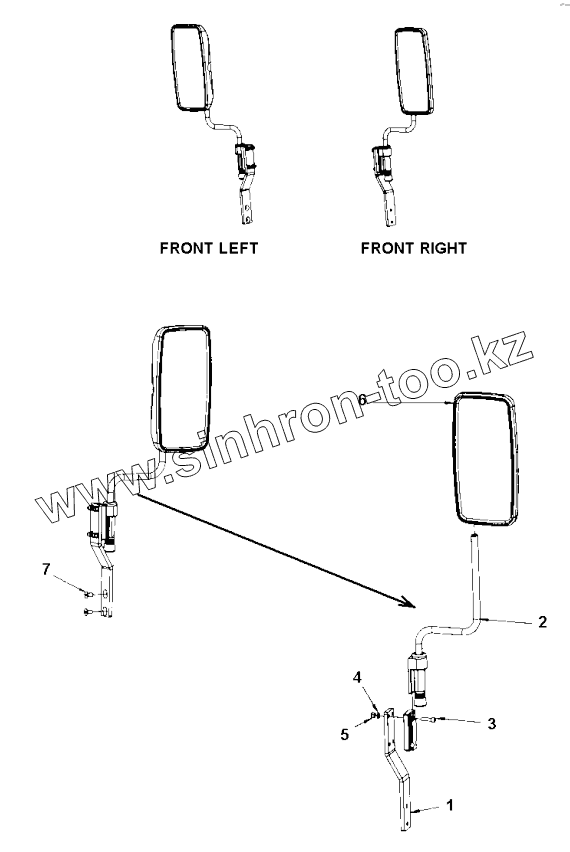

Позиция на иллюстрации	Заводской номер детали		Название детали
Mirror	Mirror		Mirror assy
1	4812110334		Bracket
2	4700381944		Holder
3	4700508048		Hexagon socket head cap screw
4	4700904229		Washer
5	4700586003		Hexagon lock nut
6	4700381943		Mirror
6	4812161276		Mirror glass
7	4811000096		Hex. socket countersunk screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
