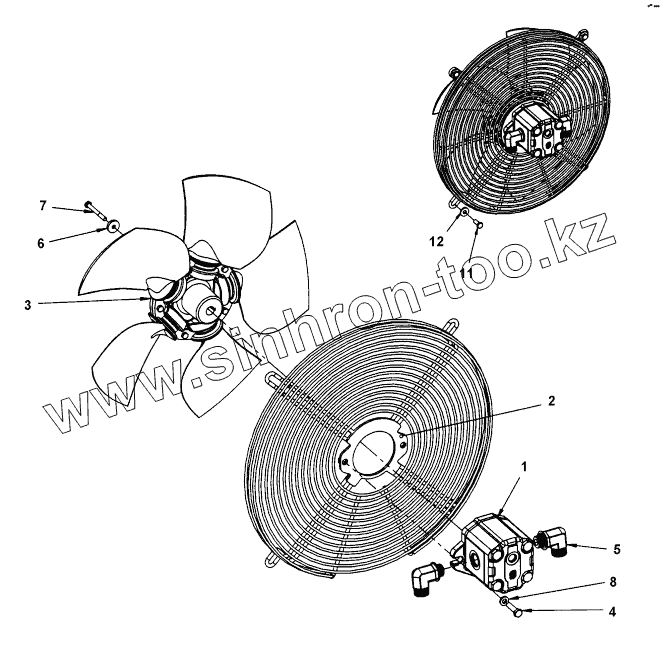

1
2
3
4
5
6
7
8
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700390609
Hydraulic motor
2
4700390608
Fan guard
3
4700390607
Fan
4
4700500022
Hex. screw
5
4700792332
Elbow 90 orfs
6
4700904735
Steel plain washer
7
4700500016
Screw
8
4700904640
Washer
11
4700500053
Hex. screw
12
4700904640
Washer
