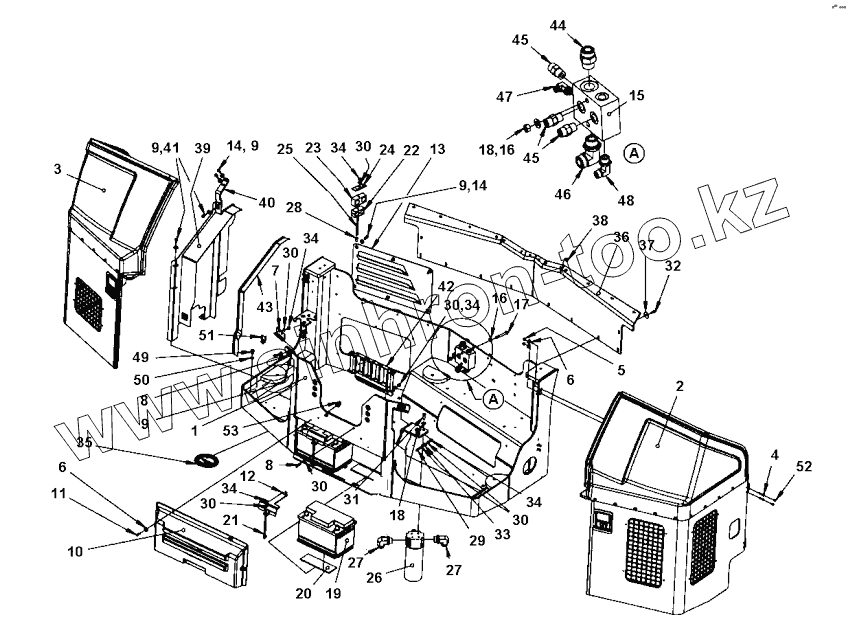

Каталог запасных частей к технике: DYNAPAC Dynapac CC5200. Engine structure
1
2
3
4
5
6
6
7
8
8
9
9
9
9
10
11
12
13
14
14
15
16
16
17
18
18
19
20
21
22
23
24
25
26
26
26
26
27
27
28
29
30
30
30
30
30
30
31
32
33
34
34
34
34
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
52
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700394514 | Engine structure | |
| 2 | Enginecover | Engine cover | |
| 3 | Enginecover | Engine cover | |
| 4 | 4700513017 | Screw | |
| 5 | 4700586002 | Lock nut | |
| 6 | 4700904735 | Steel plain washer | |
| 7 | 4700396542 | Lock bracket | |
| 8 | 4700500022 | Hex. screw | |
| 9 | 4700904640 | Washer | |
| 10 | 4700390884 | Cover | |
| 11 | 4700500040 | Screw | |
| 12 | 4700396634 | Battery holder | |
| 13 | 4700392799 | Grid | |
| 14 | 4700500021 | Hex. screw | |
| 15 | 4700391157 | Connection block | |
| 16 | 4700904230 | Washer | |
| 17 | 4700500092 | Screw | |
| 18 | 4700570006 | Hex. nut | |
| 19 | Battery | Battery module | |
| 20 | 4700357459 | Rubber cloth | |
| 21 | 4700396635 | Battery screw | |
| 22 | 4700903456 | Pipe clamp | |
| 23 | 4700791711 | Pipe clamp | |
| 24 | 4700791712 | Cover plate | |
| 25 | 4700792326 | Stud | |
| 26 | 4700391432 | Cleaning filter element | |
| 26 | 4812158269 | Filter switch | |
| 26 | 4812110667 | Hydraulic oil filter | |
| 26 | 4700391433 | Filter element | |
| 27 | 4700791844 | Elbow adapter 90 | |
| 28 | 4700792825 | Blind insert nut | |
| 29 | 4700903768 | Threaded stud | |
| 30 | 4700904229 | Washer | |
| 31 | 4700500028 | Screw | |
| 32 | 4700500053 | Hex. screw | |
| 33 | 4700570005 | Hex. nut | |
| 34 | 4700586003 | Hexagon lock nut | |
| 35 | 4700379992 | Plug | |
| 36 | 4700379974 | Rubber cloth | |
| 37 | 4700615050 | Washer | |
| 38 | 4700792325 | Blind rivet | |
| 39 | 4700391769 | Belt guard | |
| 40 | 4700391768 | Bracket | |
| 41 | 4700500019 | Hex. screw | |
| 42 | Hosesupport | Hose support | |
| 43 | 4700792258 | Edge trim | |
| 44 | 4700791823 | Adapter | |
| 45 | 4700791799 | Straight connector orfs | |
| 46 | 4700791231 | Adapter | |
| 47 | 4700792334 | Elbow 90 orfs | |
| 48 | 4700791840 | Adapter | |
| 49 | 4700500043 | Hex. screw | |
| 50 | 4700904637 | Washer | |
| 51 | 4700394701 | Wiring clip | |
| 52 | 4700926215 | Protective plug | |
| 53 | 4700792441 | Cable tie with holder |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
