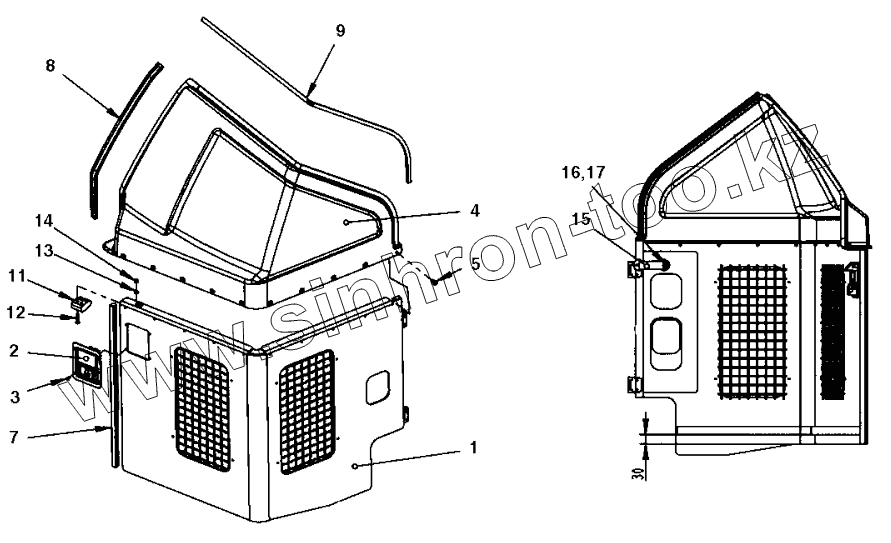

Позиция на иллюстрации
Заводской номер детали
Название детали
4700396684
4700396684
Engine cover, cpl
1
Cover
Cover
1
4700903907
Hinge
2
4700396607
Lock
2
4700902866
Key Marked 455
3
4700624020
Blind rivet
4
4700379976
Cover
5
4700792325
Blind rivet
7
4700202057
Rubber edge trim
8
4700902166
Edge trim
9
4700903953
Edge trim
11
4700390365
Spacer
12
4700924875
Screw
13
4700904228
Steel plain washer
14
4700586002
Lock nut
15
4812114393
Hood latch
16
4700904735
Steel plain washer
17
4700500059
Hex. screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
