Каталог запасных частей к технике: DYNAPAC Dynapac CC5200. Air cleaner module

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано DYNAPAC CC5200 (IIIA/T3) SN 10000322x0C002052 4700945805 Service kit 50 h, Cummins QSB 4.5 T3 4812274593 Service kit 250 h/750 h, Cummins QSB 4.5 T3 4700945806 Service kit 500 h, Cummins QSB 4.5 T3 4700945807 Service kit 1000 h, Cummins QSB 4.5 T3 1000 Hours start up kit (except China market) Service kit, 50H PLUS (Except China market) Service kit, 250H/750H PLUS (Except China market) Service kit, 500H PLUS (Except China market) Service kit, 1000H PLUS (Except China market) 4700950151 Scraper kit 4700945903 Eccentric shaft kit 4700938891 Drum rotation kit 4700945904 Shock absorber kit, drum Steering hitch kits 4812155698 Sprinkler kit Front frame Front frame 4700391023 Steering cylinder Tank structure module Tank structure module 4700391307 Cover Hose support Hitch module 4812113153 Steering hitch To 0C004314 4812117737 Steering hitch From 0C004315 Filling pipe Grab handle module Rear frame Rear frame Cover, cpl Engine structure, module Engine structure Engine cover, left Engine cover, right Oil cooler Fan Noise suppression plates Noise suppression, covers Sprinkler system Sprinkler pump module Sprinkler pump Sprinkler pump Sprinkler pump, backup Sprinkler pump, additonal sprinkler/cocoa mat Sprinkler pumps Sprinkler pumps Sprinkler pumps From 0C003678 Locking device module Water hoses Scraper assy with nozzles Filling pipe Extra sprinkler tank/s Sprinkler tank Water hoses Filling pipe End frame, front End frame, front Frame End frame, extra tank Frame assy Fork, vibration side Fork, propulsion side Cover plate Hose clamp, propulsion side Hose clamp, vibration side Step, vibration side Step, propulsion side Scraper module, without nozzles Scraper assy Scraper module, with nozzles Scraper assy with nozzles 4700394340 Scraper bracket, cpl Grab handle, release Grab handle, release Grab handle, release Grab handle, lift Grab handle, lift offset/cocoa mat Cocoa mat module Cocoa mat assembly Cocoa mat bracket module Cocoa mat bracket Cocoa mat bracket module Cocoa mat bracket Process mirrors End frame, rear End frame, rear End frame, rear offset Frame Connection block Micro switch 4700391024 Steering cylinder Eyelet module SMV-sign Platform, no cab Platform with 4-post ROPS Rear covers Platform no ROPS Cover module Manual box Hand rail, left Hand rail Hand rail, right Hand rail Hand rail Lunch box module Canopy option Canopy assy Bracket Cab asymmetric 4812265241 Cab, asymmetric Screens Rear view mirror Windshield wiper Rops, fire extinguisher support, plates Windshield plate Emergency hammer, hook, door lock 4812265355 Lock assy, left door Interior, roof, air channel Manual box 4812265368 Air channel 4812265439 Switch, cpl Cab, electrical Rotating beacon Working light module, option Cab noise cover Radio and cd player Radio and cd player module Drivers seat Seat frame structure Seat frame 4700391163 Steering column Seat, galon suspensioned Seat, fabric suspensioned (option) Controls, slidable and turning Cross sliding Carrier Drive control, cpl Drive control Display unit Control panel cover Engine room Engine Engine module Diesel engine Cummins QSB4.5 T3 - 93kW Air cooler hoses Water cooler hoses Air cleaner module Air cleaner hose module Muffler Exhaust pipe module Fuel hose module Charge air cooler Water cooler Expansion tank assembly Coolant hoses Drum Drum bearing Drive unit 4812269526 Gear 4700390603 Hydraulic motor Engine hydraulic part End plate Vibrating unit Sauer 4700395915 Hydraulic motor Vibration Hydraulic system, front drum Hydraulic system, rear drum std Hydraulic system, rear drum offset Hydraulic valve module, offset/combi Hydraulic valve Hydraulic valve Hydraulic hoses, frame Hydraulic hoses, engine room Hydraulic valve module Hydraulic valve 4700395924 Hydraulic valve Hydraulic pump module Hydraulic pump 4700390602 Hydraulic pump 4812155785 Hydraulic pump Rotating group, cpl Valve block, cpl Control module Flushing valve 4812155786 Hydraulic pump Rotary group, cpl Valve block, cpl 4812155787 Hydraulic pump Rotary group, cpl Valve block, cpl Hydraulic system, steering Std Hose bracket Hydraulic steering, sliding seat Steering, slideable 4700372424 Pilot valve, steering Electric cables, power supply Battery disconnector Battery disconnector Electric cables, power supply cab Electric cables, engine - ECU Standard ECU module Standard ECU assembly Electric cables, sensors/ horn/ back-up alarm Back-up alarm module Back-up alarm Horn module Horn Tachograph Tachograph holder module Tachograph holder Cable harness kit Power supply module Driving & side direction lights Driving lights, front RH Driving lights, front LH Steering column switch module Cable harness and switch module Registration plate light module Registration plate light Driving lights, rear Turn signals Drum edge lights Bracket Working light module H3 Bracket Reading light Decals Air conditioning Compressor module Hose kit Compressor Hose kit AC Condensor module Evaporator module Hose kit AC 4812269036 Heater model Asphalt temperature meter Fire extinguisher/First Aid Cushion Fire extinguisher assembly Edge cutter Edge cutter, module 4700390998 Edge cutter, cpl 4700390999 Holder 4700391009 Bearing unit 4700387275 Hydraulic cylinder Cutting disc module Pressing roller, module Hydraulic valve module Hydraulic valve 4700391018 Hydraulic valve Disc/Roller holder

1

1

1

1

1

2

3

4

5

6

7

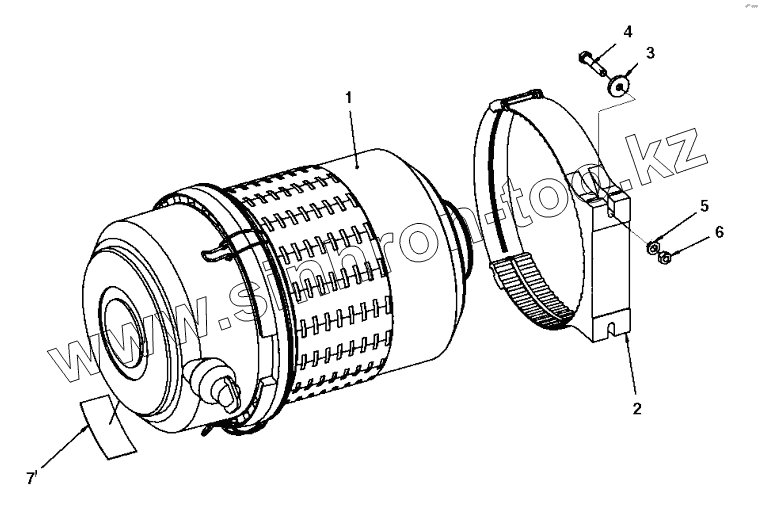

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4700390820		Air cleaner
1	4700390995		Air filter element, outside
1	4700390994		Air filter element, inside
1	4700390992		Cover
1	4700390993		Vacuator valve
2	4700390811		Bracket
3	4700904734		Washer
4	4700500023		Screw
5	4700904229		Washer
6	4700570005		Hex. nut
7	4700791642		Decal WARNING Use of starting fluid prohib.
