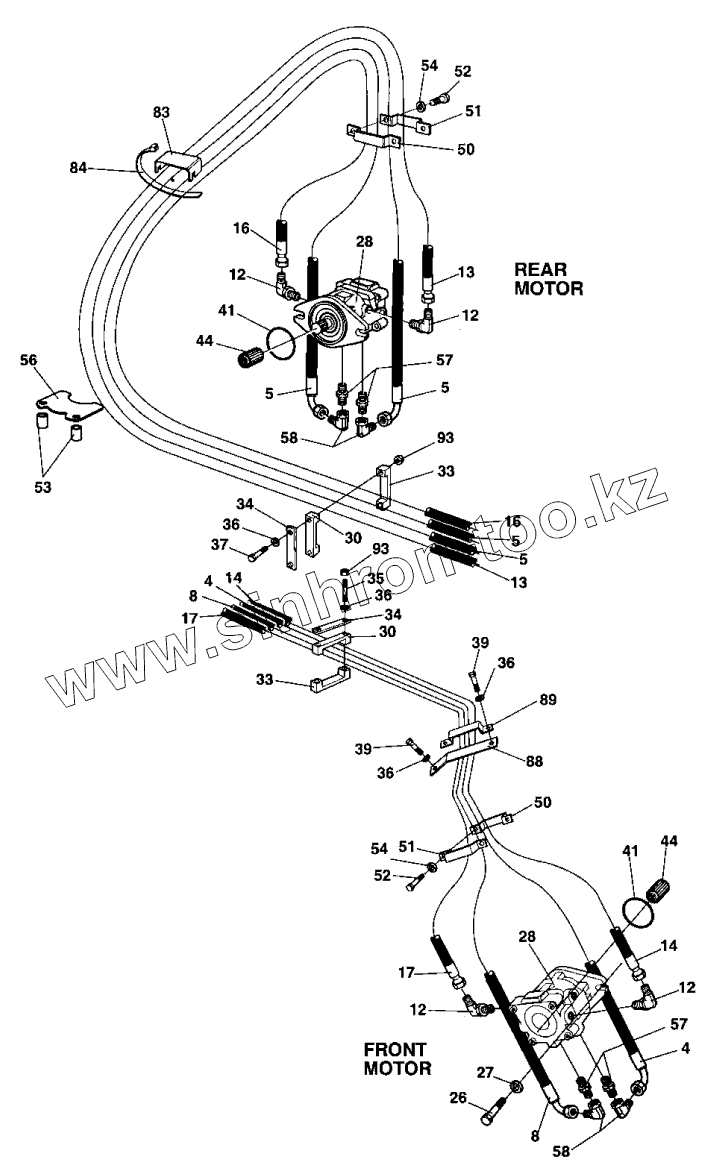

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Vibration system, motors
4
4
5
5
5
5
8
8
12
12
12
12
13
13
14
14
16
16
17
17
26
27
28
28
30
30
33
33
34
34
35
36
36
36
36
37
39
39
41
41
44
44
50
50
51
51
52
52
53
54
54
56
57
57
58
58
83
84
88
89
93
93
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4 | Hydraulichose | Hydraulic hose | |
| 5 | Hydraulichose | Hydraulic hose | |
| 8 | Hydraulichose | Hydraulic hose | |
| 12 | 334558 | Elbow 90G with O-ring | |
| 13 | Hydraulichose | Hydraulic hose | |
| 14 | Hydraulichose | Hydraulic hose | |
| 16 | Hydraulichose | Hydraulic hose | |
| 17 | Hydraulichose | Hydraulic hose | |
| 26 | 500037 | Hex. screw | |
| 27 | 904213 | Washer 13x30x4 | |
| 28 | 370260 | Hydraulic motor, vibration | |
| 30 | 343872 | Hose clamp | |
| 33 | 343732 | Hose clamp | |
| 34 | 335914 | Cover plate | |
| 35 | 904056 | Stud | |
| 36 | 904230 | Washer 10,5x22x2 | |
| 37 | 903524 | Bolt | |
| 39 | 500028 | Screw | |
| 41 | 160279 | O-ring | |
| 44 | 340862 | Splined sleeve | |
| 50 | 383462 | Hose clamp | |
| 51 | 383461 | Hose clamp | |
| 52 | 500030 | Screw | |
| 53 | Notused | Not used on this model | |
| 54 | 904557 | Washer 10,5x22x4 | |
| 56 | 359563 | Hose shields | |
| 57 | 334138 | Adapter | |
| 58 | 334155 | Elbow 90 | |
| 83 | 370641 | Hose shields | |
| 84 | 313102 | Cable ties | |
| 88 | 372112 | Holder plate | |
| 89 | 374763 | Hose clamp | |
| 93 | 570006 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
