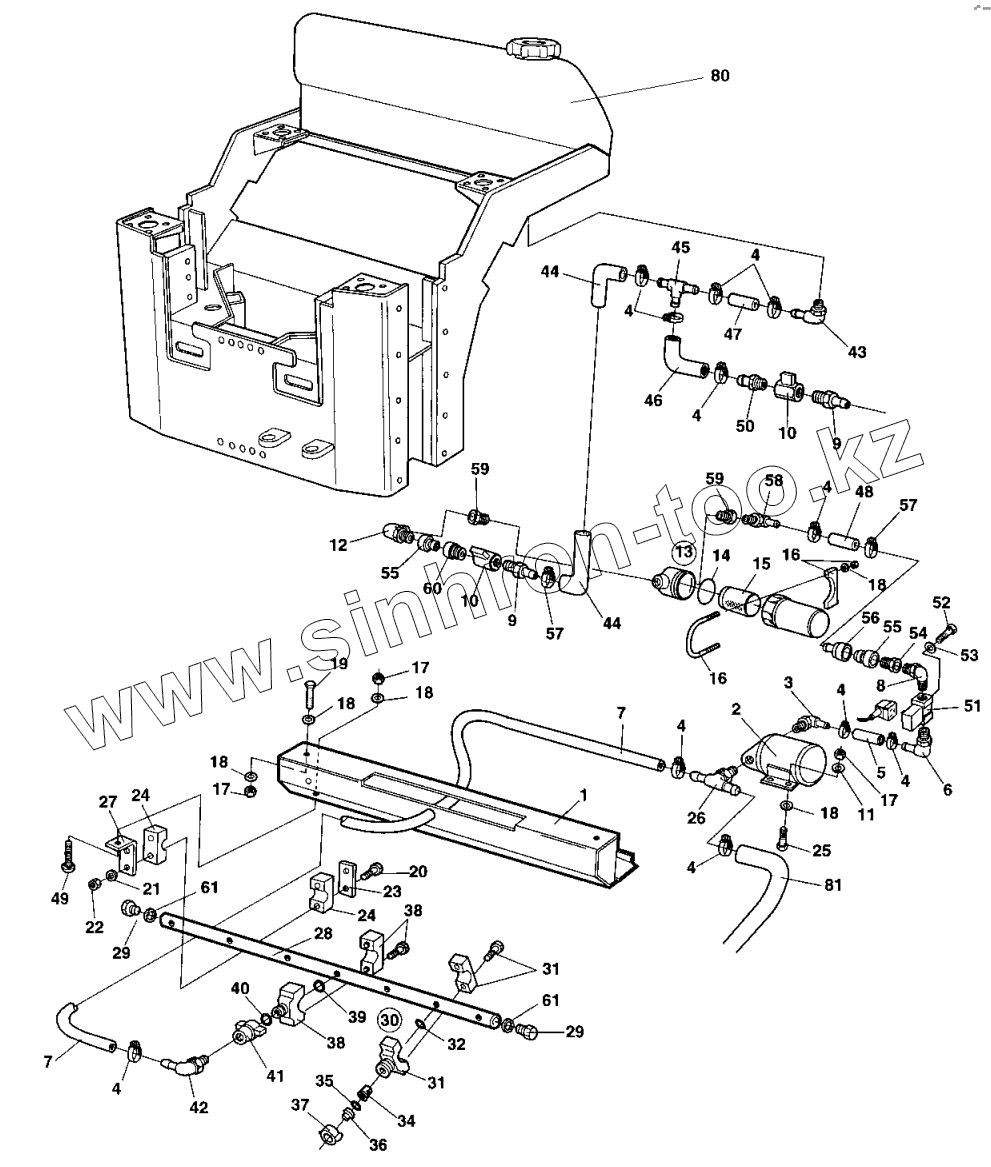

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Sprinkler system, front Up to 42520969
1
2
3
4
4
4
4
4
4
4
4
5
6
7
7
8
9
9
10
10
11
12
13
14
15
16
16
17
17
17
18
18
18
18
18
19
20
21
22
23
24
24
25
26
27
28
29
29
30
31
31
32
34
35
36
37
38
38
39
40
41
42
43
43
43
44
44
44
44
45
46
47
47
47
48
48
48
49
50
51
52
53
54
55
55
56
57
57
58
59
59
60
61
61
80
81
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 382639 | Sprinkler box | |
| 2 | 383697 | Water pump | |
| 3 | 923734 | Hose connection | |
| 4 | 313002 | Hose clamp | |
| 5 | 904878 | Hose reinforced | |
| 6 | 901431 | Hose connection | |
| 7 | 904878 | Hose reinforced | |
| 8 | 791134 | Elbow 90 | |
| 9 | 924544 | Hose connection | |
| 10 | 925599 | Valve | |
| 11 | 904556 | Washer 8,4x16x3,0 | |
| 12 | 901298 | Connector | |
| 13 | 791130 | Strainer cpl | |
| 14 | 938307 | O-ring | |
| 15 | 938306 | Strainer | |
| 16 | 313036 | Clamp | |
| 17 | 570005 | Nut | |
| 18 | 904229 | Washer 8,4x16x1,5 | |
| 19 | 500022 | Screw | |
| 20 | 500016 | Screw | |
| 21 | 904228 | Washer 6,4x12x1,5 | |
| 22 | 586002 | Lock nut M6 | |
| 23 | 923859 | Cover plate | |
| 24 | 923876 | Clamp | |
| 25 | 500020 | Screw | |
| 26 | 792289 | Adapter | |
| 27 | 373518 | Bracket | |
| 28 | 381886 | Sprinkler pipe | |
| 29 | 384775 | Plug | |
| 30 | 382586 | Sprinkler, cpl | |
| 31 | 923680 | Nozzle clamp | |
| 32 | 923962 | O-ring | |
| 34 | 499444 | Strainer | |
| 35 | 904116 | Gasket | |
| 36 | 903540 | Nozzle body | |
| 37 | 923681 | Quick coupling, black | |
| 38 | 923680 | Nozzle clamp | |
| 39 | 923962 | O-ring | |
| 40 | 904116 | Gasket | |
| 41 | 929419 | Coupling | |
| 42 | 901431 | Hose connection | |
| 43 | 924996 | Hose connection | |
| 43 | 924544 | Hose connection | |
| 44 | 904878 | Hose reinforced | |
| 44 | 904878 | Hose reinforced | |
| 45 | 923735 | Hose connection | |
| 46 | 904878 | Hose reinforced | |
| 47 | 904878 | Hose reinforced | |
| 47 | 904878 | Hose reinforced | |
| 48 | 904878 | Hose reinforced | |
| 48 | 904878 | Hose reinforced | |
| 49 | 929191 | Bolt | |
| 50 | 924544 | Hose connection | |
| 51 | 287713 | Solenoid valve | |
| 52 | 500002 | Screw | |
| 53 | 904698 | Washer 4,3x8x0,8 | |
| 54 | 791135 | Connector | |
| 55 | 791128 | Quick coupling | |
| 56 | 791126 | Quick coupling | |
| 57 | 814071 | Hose clamp | |
| 58 | 924996 | Hose connection | |
| 59 | 903886 | Adapter | |
| 60 | 791125 | Quick coupling | |
| 61 | 903769 | Sealing | |
| 80 | Sprinklingtank | Sprinkling tank | |
| 81 | Plastichose | Plastic hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
