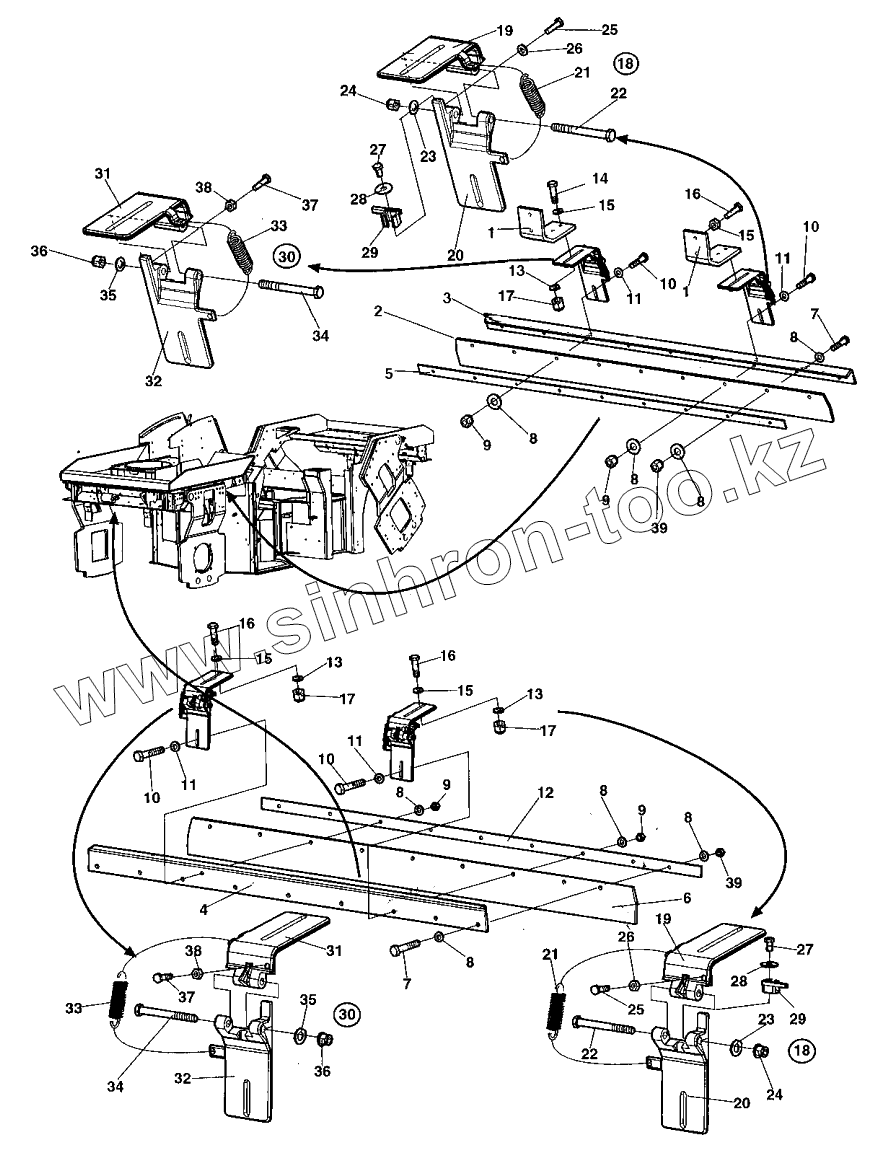

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Scrapers, spring loaded, rear drum From 42520970
1
1
2
3
4
5
6
7
7
8
8
8
8
8
8
8
8
9
9
9
9
10
10
10
10
11
11
11
11
12
13
13
13
14
15
15
15
15
16
16
16
17
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 359455 | Scraper bracket | |
| 2 | 388648 | Scraper | |
| 3 | 392620 | Scraper bracket | |
| 4 | 376736 | Sprinkler pipe | |
| 5 | 391710 | Scraper bracket | |
| 6 | 388648 | Scraper | |
| 7 | 500056 | Hex. screw | |
| 8 | 904231 | Washer 13x24x2 | |
| 9 | 586019 | Lock nut M12 | |
| 10 | 500049 | Hex. screw | |
| 11 | 904703 | Washer 13x24x4 | |
| 12 | 391710 | Scraper bracket | |
| 13 | 904557 | Washer 10,5x22x4 | |
| 14 | 500161 | Screw | |
| 15 | 904230 | Washer 10,5x22x2 | |
| 16 | 500031 | Screw | |
| 17 | 570006 | Nut | |
| 18 | 387690 | Scraper bracket, cpl | |
| 19 | Scraperbracket | Scraper bracket | |
| 20 | Scraperbracket | Scraper bracket | |
| 21 | 390809 | Extension spring | |
| 22 | 500267 | Screw | |
| 23 | 904231 | Washer 13x24x2 | |
| 24 | 586019 | Lock nut M12 | |
| 25 | 500240 | Screw | |
| 26 | 570006 | Nut | |
| 27 | 500003 | Screw | |
| 28 | 928381 | Washer 6,4x18x1,6 | |
| 29 | 388490 | Release device | |
| 30 | 387693 | Scraper bracket, cpl | |
| 31 | Scraperbracket | Scraper bracket | |
| 32 | Scraperbracket | Scraper bracket | |
| 33 | 390809 | Extension spring | |
| 34 | 500267 | Screw | |
| 35 | 904231 | Washer 13x24x2 | |
| 36 | 586019 | Lock nut M12 | |
| 37 | 500240 | Screw | |
| 38 | 570006 | Nut | |
| 39 | 791963 | Lock nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
