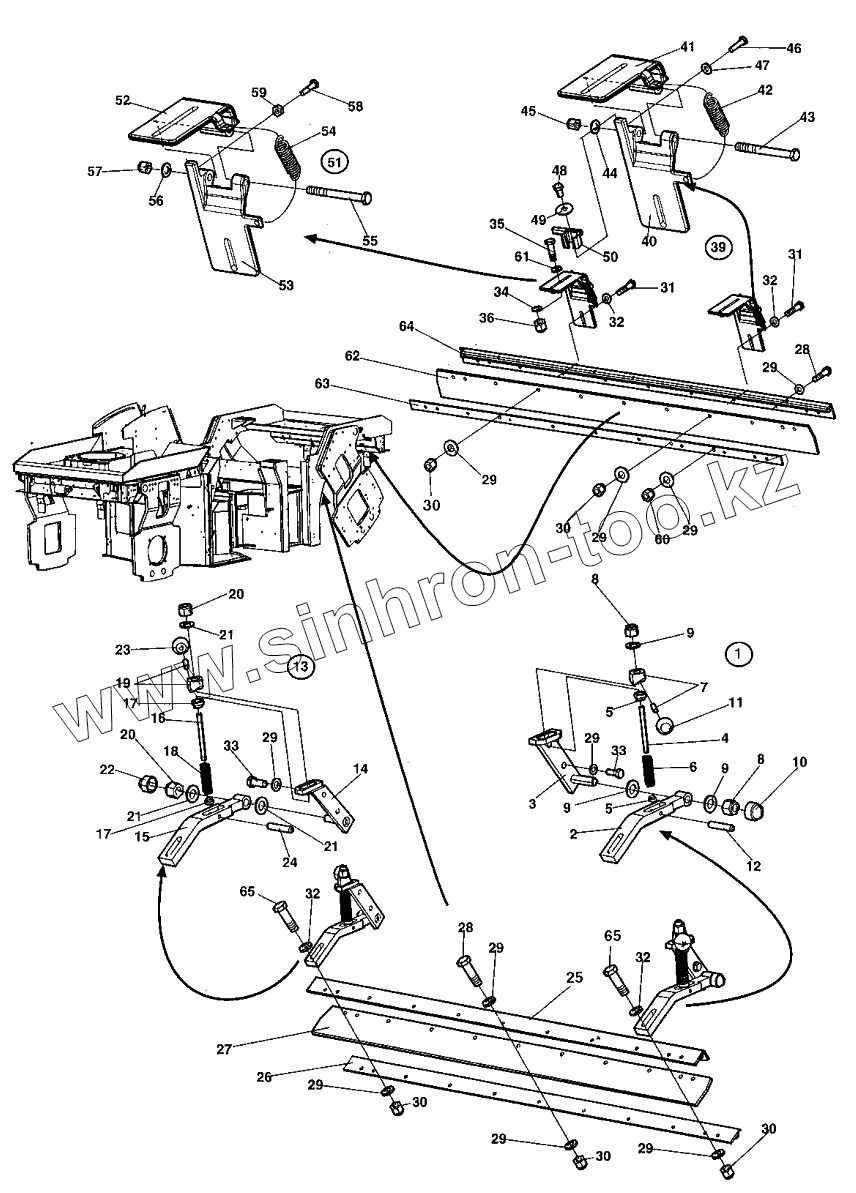

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Scrapers, spring loaded, front drum From 42520970
1
2
3
4
5
5
6
7
8
8
9
9
9
10
11
12
13
14
15
16
17
17
18
19
20
20
21
21
21
22
23
24
25
26
27
28
28
29
29
29
29
29
29
29
29
29
29
30
30
30
30
30
31
31
32
32
32
32
33
33
34
35
36
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 376725 | Scraper bracket | |
| 2 | Bracket | Bracket | |
| 3 | Bracket | Bracket | |
| 4 | 376728 | Shaft | |
| 5 | 388344 | Guide | |
| 6 | 388345 | Spring | |
| 7 | 376729 | Release device | |
| 8 | 586021 | Nut M16 | |
| 9 | 904232 | Washer 17x30x3 | |
| 10 | 791755 | Nut protection | |
| 11 | 312005 | Ball knob | |
| 12 | 792129 | Pin | |
| 13 | 376726 | Scraper bracket | |
| 14 | Scraperbracket | Scraper bracket | |
| 15 | Scraperbracket | Scraper bracket | |
| 16 | 376728 | Shaft | |
| 17 | 388344 | Guide | |
| 18 | 388345 | Spring | |
| 19 | 376729 | Release device | |
| 20 | 586021 | Nut M16 | |
| 21 | 904232 | Washer 17x30x3 | |
| 22 | 791755 | Nut protection | |
| 23 | 312005 | Ball knob | |
| 24 | 792129 | Pin | |
| 25 | 392620 | Scraper bracket | |
| 26 | 391710 | Scraper bracket | |
| 27 | 388648 | Scraper | |
| 28 | 500056 | Hex. screw | |
| 29 | 904231 | Washer 13x24x2 | |
| 30 | 586019 | Lock nut M12 | |
| 31 | 500049 | Hex. screw | |
| 32 | 904703 | Washer 13x24x4 | |
| 33 | 500046 | Screw | |
| 34 | 904557 | Washer 10,5x22x4 | |
| 35 | 500031 | Screw | |
| 36 | 570006 | Nut | |
| 39 | 387690 | Scraper bracket, cpl | |
| 40 | Scraperbracket | Scraper bracket | |
| 41 | Scraperbracket | Scraper bracket | |
| 42 | 390809 | Extension spring | |
| 43 | 500267 | Screw | |
| 44 | 904231 | Washer 13x24x2 | |
| 45 | 586019 | Lock nut M12 | |
| 46 | 500240 | Screw | |
| 47 | 570006 | Nut | |
| 48 | 500003 | Screw | |
| 49 | 928381 | Washer 6,4x18x1,6 | |
| 50 | 388490 | Release device | |
| 51 | 387693 | Scraper bracket, cpl | |
| 52 | Scraperbracket | Scraper bracket | |
| 53 | Scraperbracket | Scraper bracket | |
| 54 | 390809 | Extension spring | |
| 55 | 500267 | Screw | |
| 56 | 904231 | Washer 13x24x2 | |
| 57 | 586019 | Lock nut M12 | |
| 58 | 500240 | Screw | |
| 59 | 570006 | Nut | |
| 60 | 791963 | Lock nut | |
| 61 | 904230 | Washer 10,5x22x2 | |
| 62 | 388648 | Scraper | |
| 63 | 391710 | Scraper bracket | |
| 64 | 376736 | Sprinkler pipe | |
| 65 | 500133 | Hex. screw |
