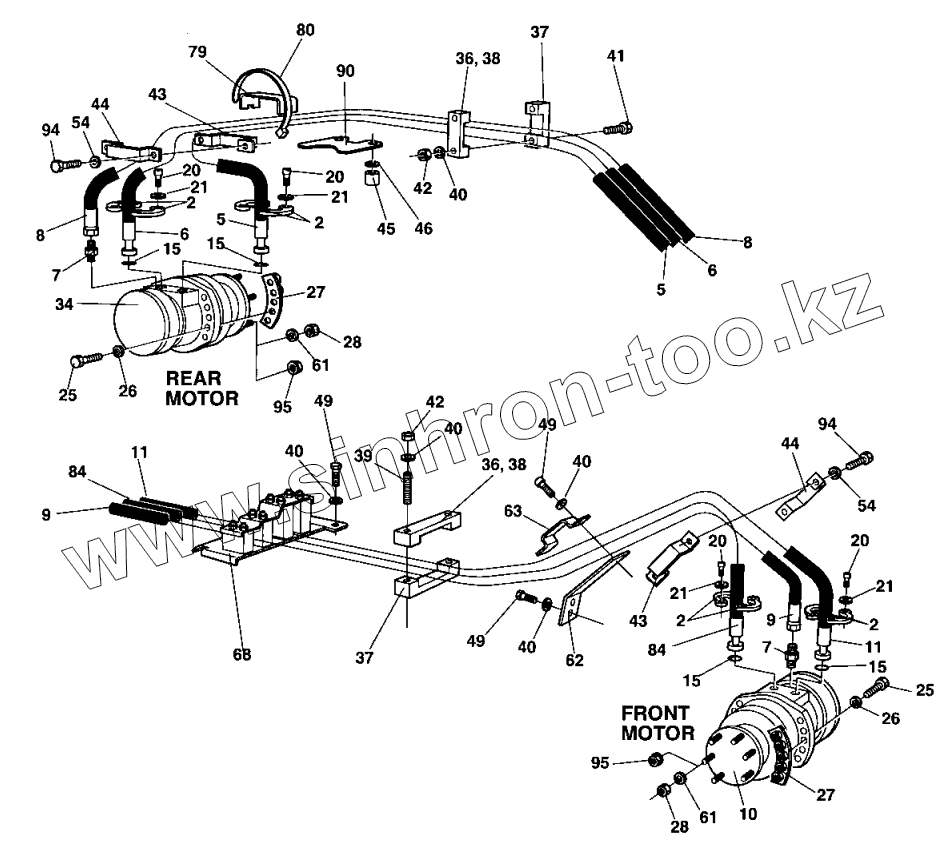

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Propulsion system, motors From 42520697
2
2
2
2
5
5
6
6
7
7
8
8
9
9
10
11
11
15
15
15
15
20
20
20
20
21
21
21
21
25
25
26
26
27
27
28
28
28
34
36
36
37
37
38
38
39
40
40
40
40
40
41
42
42
43
43
44
44
45
46
49
49
49
54
54
61
61
62
63
68
79
80
84
84
90
94
94
95
95
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 929226 | Flange half | |
| 5 | Hydraulichose | Hydraulic hose | |
| 6 | Hydraulichose | Hydraulic hose | |
| 7 | 344134 | Adapter | |
| 8 | Hydraulichose | Hydraulic hose | |
| 9 | Hydraulichose | Hydraulic hose | |
| 10 | 379180 | Hydraulic motor, propulsion | |
| 11 | Hydraulichose | Hydraulic hose | |
| 15 | 904004 | O-ring | |
| 20 | 508053 | Screw | |
| 21 | 904637 | Washer 10x18x2 | |
| 25 | 500208 | Screw | |
| 26 | 904233 | Washer 21x36x3 | |
| 27 | 380202 | Nut | |
| 28 | Notused | Not used on this model | |
| 34 | 379180 | Hydraulic motor, propulsion | |
| 36 | 343872 | Hose clamp | |
| 37 | 343732 | Hose clamp | |
| 38 | 335914 | Cover plate | |
| 39 | 904056 | Stud | |
| 40 | 904230 | Washer 10,5x22x2 | |
| 41 | 903524 | Bolt | |
| 42 | 570006 | Nut | |
| 43 | 383462 | Hose clamp | |
| 44 | 383461 | Hose clamp | |
| 45 | Notused | Not used on this model | |
| 46 | Notused | Not used on this model | |
| 49 | 500028 | Screw | |
| 54 | 904557 | Washer 10,5x22x4 | |
| 61 | Notused | Not used on this model | |
| 62 | 372112 | Holder plate | |
| 63 | 374763 | Hose clamp | |
| 68 | 376270 | Bracket | |
| 79 | 370641 | Hose shields | |
| 80 | 313102 | Cable ties | |
| 84 | Hydraulichose | Hydraulic hose | |
| 90 | 359563 | Hose shields | |
| 94 | 500030 | Screw | |
| 95 | 791481 | Flat collar nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
