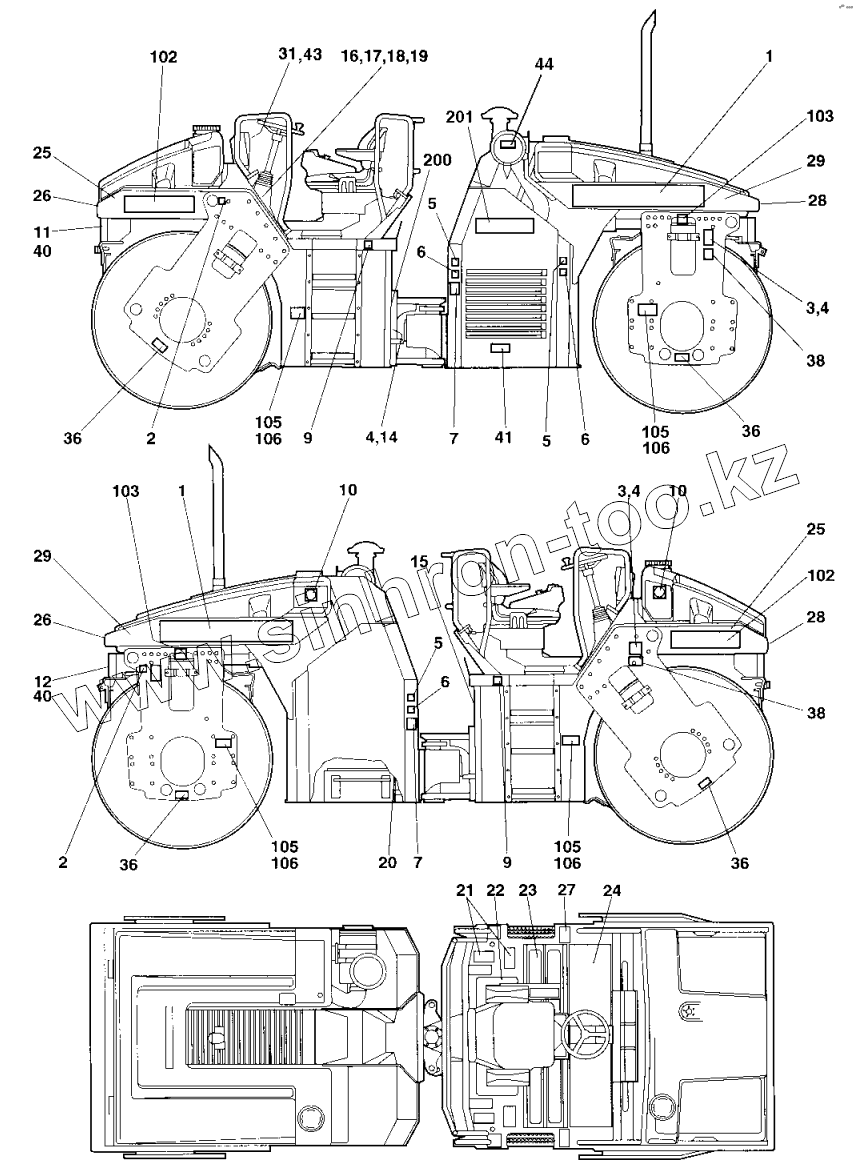

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Plates and decals

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
4
4
5
5
5
6
6
6
7
7
9
9
10
10
11
12
14
14
14
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
28
29
29
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
36
36
36
36
38
38
40
40
41
43
44
102
102
103
103
105
105
105
105
106
106
106
106
200
201
Позиция на иллюстрации Заводской номер детали Название детали
791278 791278 Decal Sound Power Level Option
1 904095 Decal DYNAPAC
2 357587 Decal LIFT POINT
3 904870 Lifting sign
4 624005 Pop rivet
5 903424 Decal SAFETY
6 903423 Decal SAFETY
7 903422 Decal SAFETY
9 903459 Decal SAFETY
10 991657 Decal WATER
11 377743 Reflector, white
12 377742 Reflector, red
14 Identificationplate Product identification plate
14 IdentificationplateCE Product identification plate CE
15 991658 Decal FUEL
16 903425 Decal SAFETY MANUAL
17 357643 Wire
18 904697 Washer
19 358254 Key-ring
20 272373 Decal HYDRAULIC OIL
21 370058 Protection
22 372124 Protection
23 372121 Protection
24 372122 Protection
25 372161 Decal RED
26 357592 Decal RED
27 372123 Protection
28 904092 Decal DYNAPAC
29 370085 Decal RED
31 386084SE Warning plate
31 386084BR Warning plate
31 386084CN Warning plate
31 386084IS Warning plate
31 386084GR Warning plate
31 386084NL Warning plate
31 386084PT Warning plate
31 386084DK Warning plate
31 386084NO Warning plate
31 386084FR Warning plate
31 386084ES Warning plate
31 386084IT Warning plate
31 386084DE Warning plate
31 386084FI Warning plate
31 386084EN Warning plate
36 382751 Decal TIE DOWN POINT
38 908229 Safety decal
40 Notused Not used on this model
41 904835 Decal BATTERY POWER
43 624017 Blind rivet
44 791642 Decal WARNING
102 903609 Decal MODEL CODE
103 355983 Decal TYRE PRESSURE
105 377744 Reflector, yellow
106 Notused Not used on this model
200 791281 Decal Sound power level
201 379319 Decal Asphalt temp meter
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
