Dynapac CC422

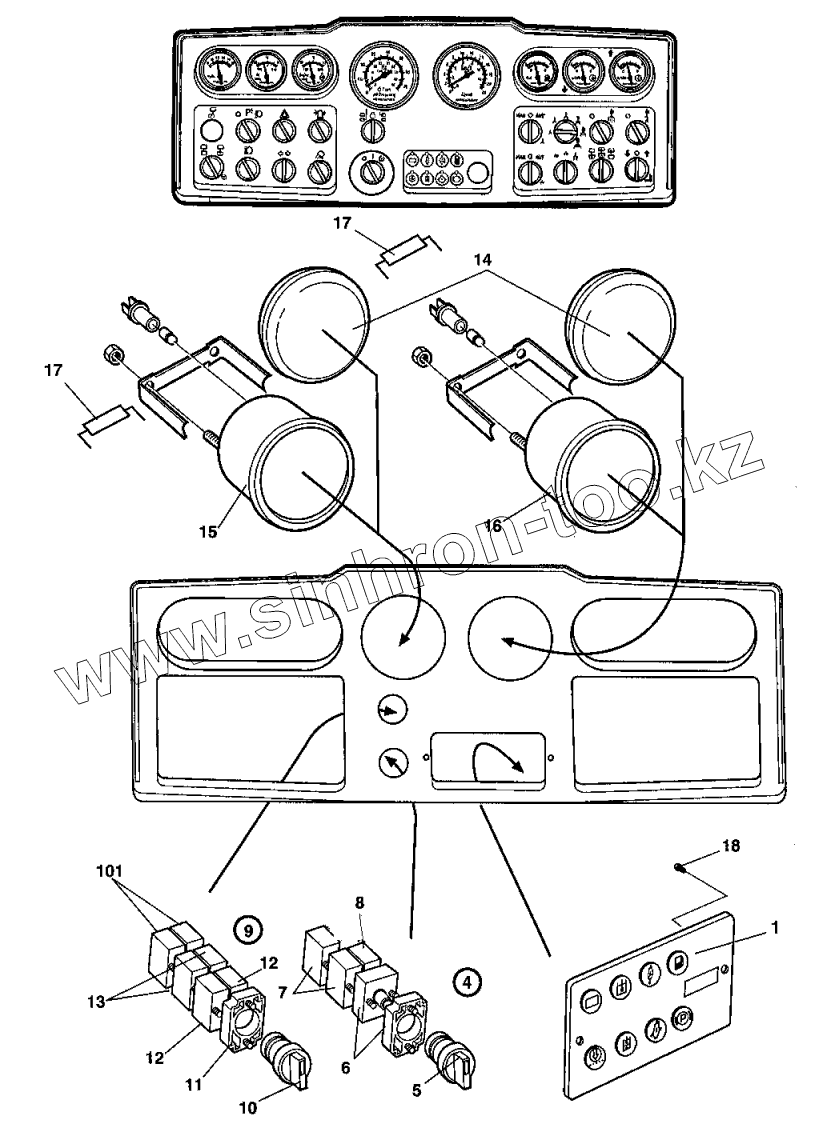

Instrument panel, main
Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Instrument panel, main
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
Dynapac Compaction Equipment AB СС422 SN 42520422, -CC422106
Service kits
Service kits
939563 Service kit 50 h
939564 Service kit 500 h
939565 Service kit 1000 h
Repair kits
Repair kits
938905 Eccentric shaft kit
938891 Drum rotation kit
938917 Scraper kit CC322/422/432
945720 Scraper kit CC322/422/432
938888 Shock absorber kit, drum
938558 Steering hitch kit
Frames
Covers, ladders
Scrapers, standard, front drum Up to 42520969
Scrapers, standard, rear drum Up to 42520969
Scrapers, standard From 42520970
Scrapers, spring loaded Foldable Up to 42520969
Scrapers, spring loaded, front drum From 42520970
Scrapers, spring loaded, rear drum From 42520970
Articulated link
Structure
Noise suppression
Noise reduction hood
Sprinkler systems, tanks
Sprinkler system, front Up to 42520969
Sprinkler system, front From 42520970
Sprinkler system, rear Up to 42520969
Sprinkler system, rear From 42520970
Drum, standard, front/rear
Diesel engine Cummins 4B3.9 TAA Up to 42520716
Diesel engine Cummins 4B3.9 TAA From 42520717
Cooling system
Intake system
Fuel system
Exhaust system
Pumpdrive and coupling
373354 Gear box
Propulsion system, pump Up to 42520696
359142 Hydraulic pump, propulsion
Propulsion system, pump From 42520697
Propulsion system, motors Up to 42520696
Propulsion system, motors From 42520697
Vibration system, pump
359140 Valve Vibration
Vibration system, motors
370260 Hydraulic motor, vibration
Steering system Up to 42520906
359145 Steering valve
375031 Hydraulic cylinder
Hydraulic oil tank
Steering system From 42520907
Offset drum
381217 Direction control valve
380780 Direction control valve
Brake system
Electrical equipment
Electric battery switch
Instrument box
Instrument panel, main
Speed and frequency, sensors
Instrument panel, upper left
Instrument panel, upper right
Instrument panel, lower left
Instrument panel, lower right
Instrument panel, relay, fuses
Emergency stop panel
Driving lights Direction & licenseplate light
Working lights with/without Rops
Working lights, cab
Working lights, Xenon lamp
Protection cover, Head light
Rotating beacon
Tachograph
Drivers platform
Drivers platform, for cab
Drivers seat, turn-over Up to 42520933
Drivers seat, turn-over From 42520934
Drivers seat turn-over in cab Up to 42520933
Drivers seat, turn-over in cab From 42520934
359918 Steering column Up to 42520933
391163 Steering column From 42520934
Cross sliding Controls
Cross sliding Carrier
Forward and reverse control
Speed limiter Option
Engine control
Rear mirror
Rops/fops
Cab, interior
Cab, screens
Cab, inside panels
Cab, wipers, right side
Cab, wipers, front and rear
Cab, door, left side
Cab, door, left side (3-split)
Cab, heater and, fan system
385770 Heater unit
Cab, roof mounted, electrical switches
Cab Interior
Cab Screens
Cab Inside panels
Cab, water tank wipers
Cab, sun curtain, first aid kit, int mirror
Exterior rear mirrors
Radio and cassette/cd player
Plates and decals
Standard equipment
Compaction meter
Edge cutter
Edge cutter Hydraulics without offset
Edge cutter Hydraulics with offset
Edge cutter Sprinkler system
Eyelet
SMV sign
Tool equipment
Air conditioner assembly
Condensor assembly
385587 Heater/AC unit
Compressor assembly
Roof hatch
Asphalt temperature meter
1
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
18
101
Позиция на иллюстрации
Заводской номер детали
Название детали
985012
985012
Bulb
Sensor
Sensor
Sonic sensor conveyor
Bulb
Bulb
Bulb
Bulb
Bulb
Bulb
Sensor
Sensor
Sonic sensor conveyor
1
380660
Display
4
Switch
Limit switch conveyor
5
791489
Switch
6
903875
Flange with light
7
930154
Contact piece
8
930163
Contact piece
9
Switch
Limit switch conveyor
10
932058
Switch
11
903876
Connector
12
930163
Contact piece
13
930154
Contact piece
14
345139
Hole plug
15
371275
Tachometer and frequency meter
16
359347
Speedometer
17
357526
Resistor
18
903657
Screw
101
930163
Contact piece
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
