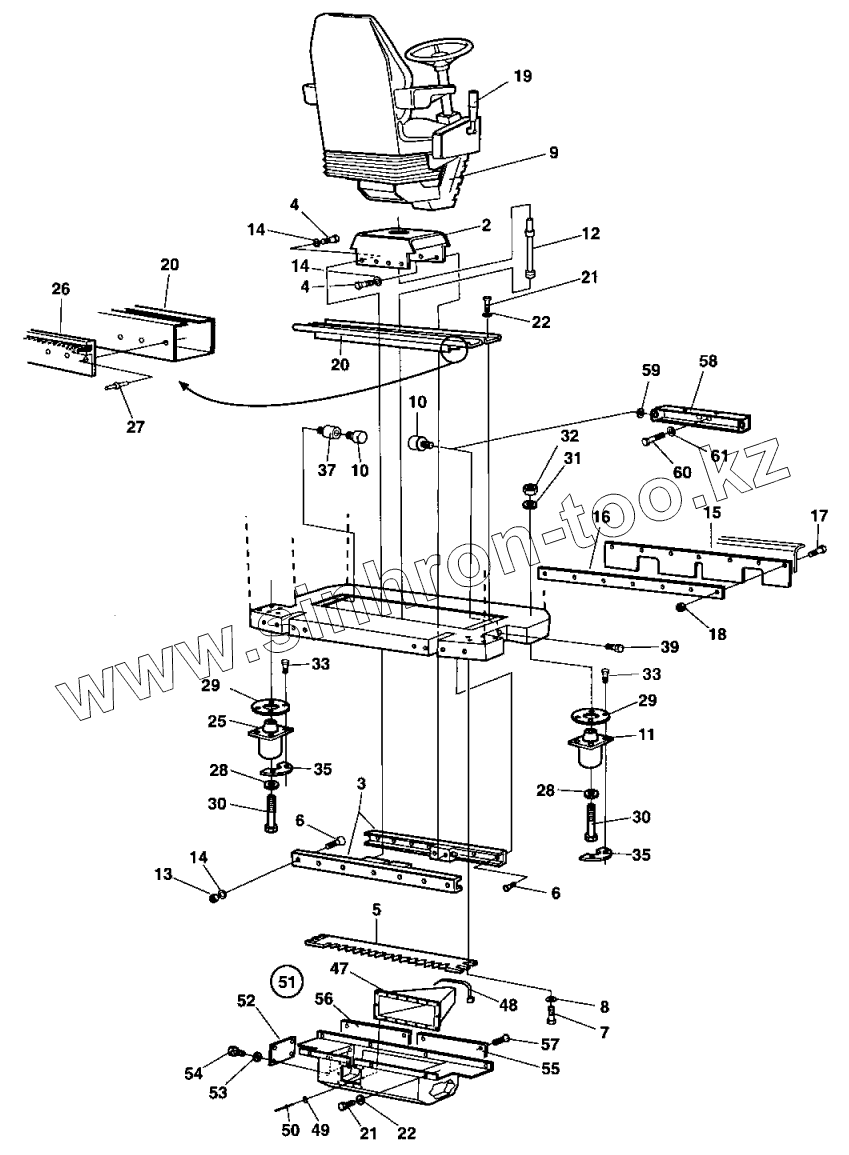

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Drivers platform, for cab

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
2
3
4
4
5
6
6
7
8
9
9
9
10
10
11
12
13
14
14
14
15
16
17
18
19
20
20
21
21
22
22
25
26
27
28
28
29
29
30
30
31
32
33
33
35
35
37
39
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
Позиция на иллюстрации Заводской номер детали Название детали
1 Cab Cab, interior
2 Crosssliding Cross sliding
3 370364 Linear bearing
4 500021 Screw
5 371052 Locking rail
6 513013 Screw
7 500029 Screw
8 904557 Washer 10,5x22x4
9 Driversseat Drivers seat
9 Driversseat Drivers seat
10 359887 Shock absorber
11 373397 Shock absorber
12 359889 Shaft
13 570005 Nut
14 904556 Washer 8,4x16x3,0
15 371056 Rubber protection
16 371057 Holder plate
17 500075 Screw
18 902285 Lock nut M6
19 Forwardcontrol Forward and reverse control
20 371069 Cover
21 500019 Screw
22 904229 Washer 8,4x16x1,5
25 373398 Shock absorber
26 371070 Brush profile
27 903731 Blind rivet
28 928466 Washer
29 359998 Back-up ring
30 928447 Screw
31 904233 Washer 21x36x3
32 901145 Lock nut
33 500194 Screw
34 904231 Washer 13x24x2
35 372704 Holder
37 370662 Spacer
39 500040 Screw
47 936274 Bellows
48 313041 Cable ties
49 904281 Washer 5,3x10x1
50 624021 Pop rivet
51 936273 Noise suppression box, cpl
52 Cover Cover
53 Washer Washer
54 Screw Screw
55 Cover Cover
56 Cover Cover
57 936276 Screw
58 385932 Spacer bracket
59 904228 Washer 6,4x12x1,5
60 500021 Screw
61 904556 Washer 8,4x16x3,0
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
