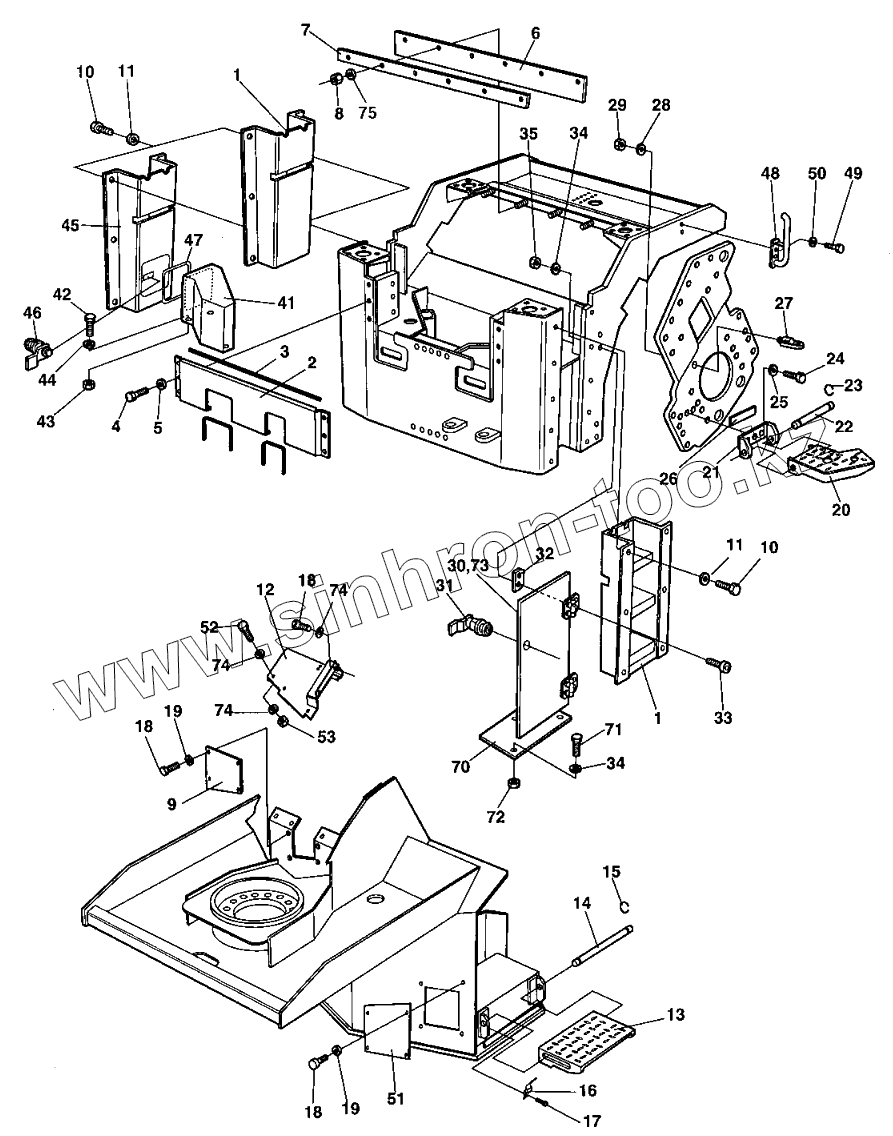

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. Covers, ladders
1
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
34
34
35
41
42
43
44
45
46
47
48
49
50
51
52
53
70
71
72
73
74
74
74
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 902866 | 902866 | Key Marked 455 | |
| 902866 | 902866 | Key Marked 455 | |
| 1 | 359583 | Ladder | |
| 2 | 386054 | Cover | |
| 3 | 902166 | Edge trim | |
| 4 | 500075 | Screw | |
| 5 | 904639 | Washer 6,7x14x1,5 | |
| 6 | 373036 | Rubber protection | |
| 7 | 373035 | Holder plate | |
| 8 | 586002 | Lock nut M6 | |
| 9 | 388011 | Cover | |
| 10 | 500053 | Screw | |
| 11 | 904640 | Washer 8,4x22x3 | |
| 12 | 386692 | Cover | |
| 13 | 371093 | Step | |
| 14 | 371098 | Shaft | |
| 15 | 150003 | Retaining ring | |
| 16 | 371130 | Spring | |
| 17 | 533006 | Screw | |
| 18 | 500053 | Screw | |
| 19 | 904556 | Washer 8,4x16x3,0 | |
| 20 | 380313 | Step | |
| 21 | 380314 | Bracket | |
| 22 | 370685 | Shaft | |
| 23 | 150003 | Retaining ring | |
| 24 | 513025 | Screw | |
| 25 | 603023 | Washer M10 | |
| 26 | 370820 | Rubber cloth | |
| 27 | 475064 | Lock | |
| 28 | 600009 | Washer | |
| 29 | 927233 | .Nut | |
| 30 | 386036 | Door | |
| 30 | 372700 | Door | |
| 31 | 383626 | Lock | |
| 32 | 372699 | Spacer | |
| 33 | 513028 | Screw | |
| 34 | 600004 | Washer | |
| 35 | 586002 | Lock nut M6 | |
| 41 | 370688 | Tool box | |
| 42 | 500015 | Screw | |
| 43 | 586002 | Lock nut M6 | |
| 44 | 615076 | Washer 7,0x25x1,5 | |
| 45 | 373152 | Ladder | |
| 46 | 372658 | Lock | |
| 47 | 202028 | Edge trim | |
| 48 | 370806 | Grab handle | |
| 49 | 500021 | Screw | |
| 50 | 603019 | Washer | |
| 51 | 388011 | Cover | |
| 52 | 500047 | Screw | |
| 53 | 586003 | Lock nut M8 | |
| 70 | 372832 | Cover | |
| 71 | 500040 | Screw | |
| 72 | 570004 | Hex. nut | |
| 73 | 202028 | Edge trim | |
| 74 | 904640 | Washer 8,4x22x3 | |
| 75 | 904228 | Washer 6,4x12x1,5 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
