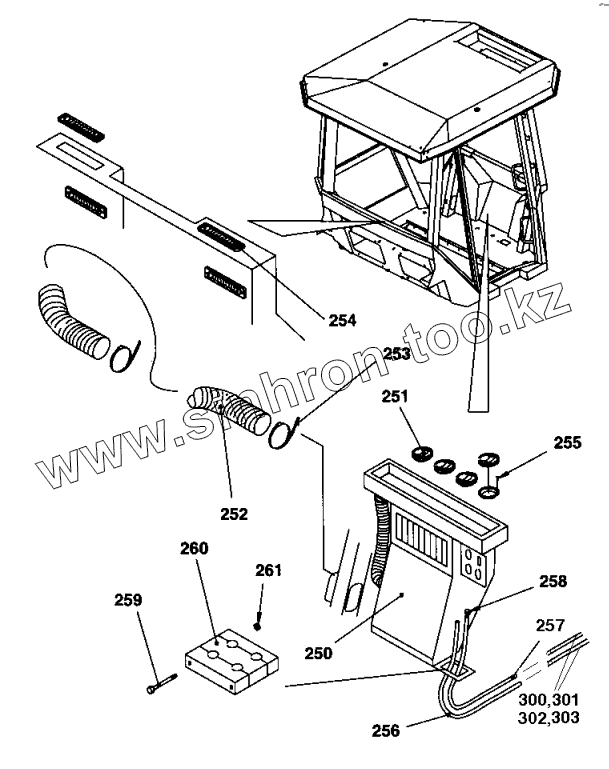

Cab, heater and, fan system
385770 Heater unit
Cab, roof mounted, electrical switches
Cab Interior
Cab Screens
Cab Inside panels
Cab, water tank wipers
Cab, sun curtain, first aid kit, int mirror
Exterior rear mirrors
Radio and cassette/cd player
Plates and decals
Standard equipment
Compaction meter
Edge cutter
Edge cutter Hydraulics without offset
Edge cutter Hydraulics with offset
Edge cutter Sprinkler system
Eyelet
SMV sign
Tool equipment
Air conditioner assembly
Condensor assembly
385587 Heater/AC unit
Compressor assembly
Roof hatch
Asphalt temperature meter
250
251
252
253
254
255
256
257
258
259
260
261
300
301
302
303
Позиция на иллюстрации
Заводской номер детали
Название детали
250
385770
Heater unit
251
385442
Air nozzle
252
908599
Hose
253
908600
Clamp
254
908598
Nozzle
255
938691
Screw
256
938872
Hose
257
938873
Hose
258
938874
Clamp
259
500153
Screw
260
938871
Hose clamp
261
570004
Hex. nut
300
234365
Elbow 90
301
387638
Hose connection
302
Notused
Not used on this model
303
313004
Hose clamp
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
