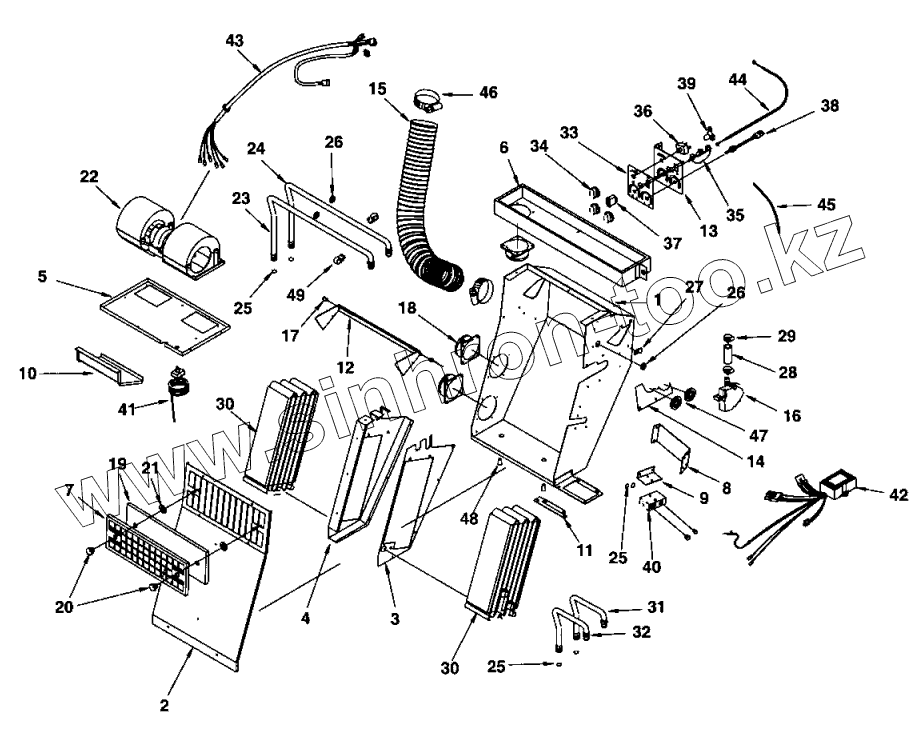

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. 385587 Heater/AC unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
20
21
22
23
24
25
25
25
26
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 938772 | Casing | |
| 2 | 938773 | Cover | |
| 3 | 938774 | Coil bracket | |
| 4 | 938775 | Coil bracket | |
| 5 | 938776 | Blower bracket | |
| 6 | 938777 | Air distributor | |
| 7 | 385590 | Filter grill | |
| 8 | 384836 | Heater valve bracket | |
| 9 | 384835 | Bracket | |
| 10 | 938778 | Air channel | |
| 11 | 938779 | Hose bracket | |
| 12 | 938780 | Flapper | |
| 13 | 938781 | Control panel | |
| 14 | 938782 | Cover plate | |
| 15 | 938783 | Air duct | |
| 16 | 383425 | Electronic valve | |
| 17 | 938784 | Bushing | |
| 18 | 938632 | Hose adapter | |
| 19 | 385589 | Recirculation filter | |
| 20 | 938643 | Plug | |
| 21 | 938611 | Star lock | |
| 22 | 938638 | Fan | |
| 23 | 938785 | Copper tube | |
| 24 | 938786 | Copper tube | |
| 25 | 384878 | O-ring | |
| 26 | 384927 | Grommet | |
| 27 | 384880 | Wire clamp | |
| 28 | 384881 | Hose | |
| 29 | 303003 | Clamp | |
| 30 | 384133 | Coil | |
| 31 | 385576 | Copper tube | |
| 32 | 385577 | Copper tube | |
| 33 | 938787 | Overlay | |
| 34 | 938620 | Knob | |
| 35 | 938788 | Rotary control | |
| 36 | 938622 | Switch | |
| 37 | 938619 | Switch | |
| 38 | 938623 | Potentiometer | |
| 39 | 938624 | Sensor | |
| 40 | 384176 | Valve | |
| 41 | 384897 | Thermostat | |
| 42 | 384187 | Ecc-Box | |
| 43 | 938631 | Cable harness | |
| 44 | 385588 | Bowden cable | |
| 45 | 938637 | Hose | |
| 46 | 938789 | Clamp | |
| 47 | 938608 | Grommet | |
| 48 | 938636 | Drain valve | |
| 49 | 938790 | Clamp |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
