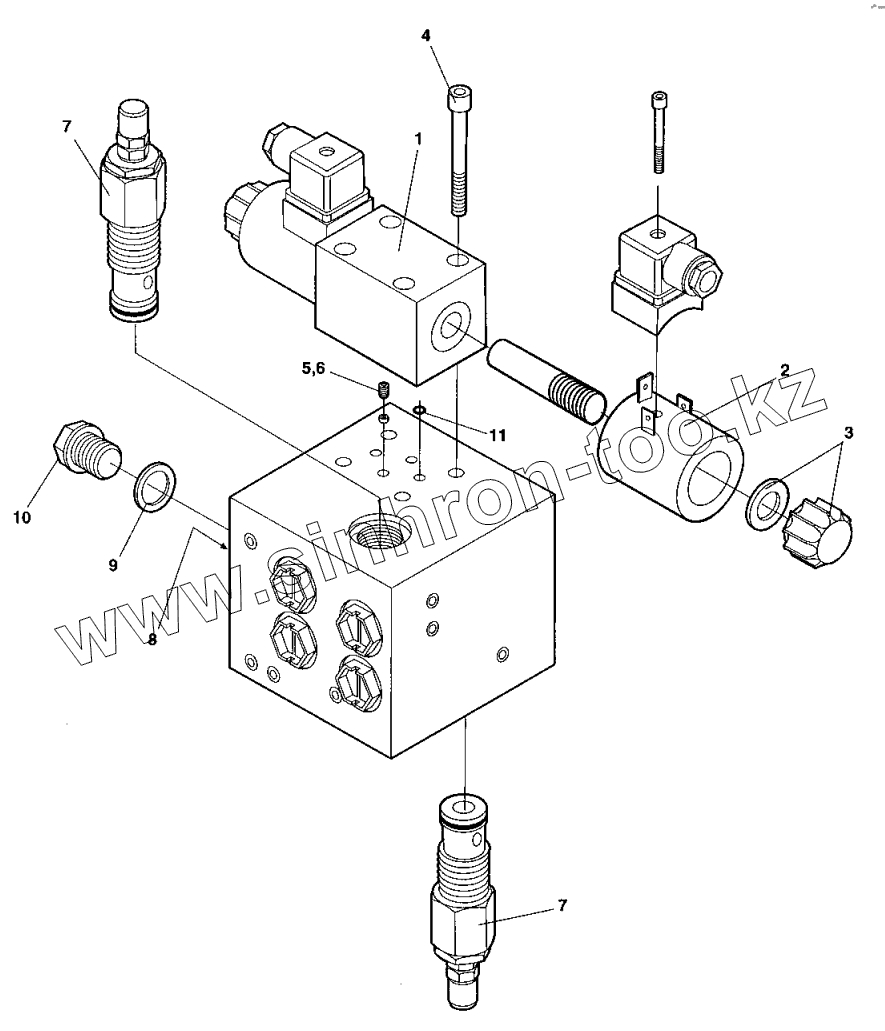

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. 381217 Direction control valve

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано Dynapac Compaction Equipment AB СС422 SN 42520422, -CC422106 Service kits Service kits 939563 Service kit 50 h 939564 Service kit 500 h 939565 Service kit 1000 h Repair kits Repair kits 938905 Eccentric shaft kit 938891 Drum rotation kit 938917 Scraper kit CC322/422/432 945720 Scraper kit CC322/422/432 938888 Shock absorber kit, drum 938558 Steering hitch kit Frames Covers, ladders Scrapers, standard, front drum Up to 42520969 Scrapers, standard, rear drum Up to 42520969 Scrapers, standard From 42520970 Scrapers, spring loaded Foldable Up to 42520969 Scrapers, spring loaded, front drum From 42520970 Scrapers, spring loaded, rear drum From 42520970 Articulated link Structure Noise suppression Noise reduction hood Sprinkler systems, tanks Sprinkler system, front Up to 42520969 Sprinkler system, front From 42520970 Sprinkler system, rear Up to 42520969 Sprinkler system, rear From 42520970 Drum, standard, front/rear Diesel engine Cummins 4B3.9 TAA Up to 42520716 Diesel engine Cummins 4B3.9 TAA From 42520717 Cooling system Intake system Fuel system Exhaust system Pumpdrive and coupling 373354 Gear box Propulsion system, pump Up to 42520696 359142 Hydraulic pump, propulsion Propulsion system, pump From 42520697 Propulsion system, motors Up to 42520696 Propulsion system, motors From 42520697 Vibration system, pump 359140 Valve Vibration Vibration system, motors 370260 Hydraulic motor, vibration Steering system Up to 42520906 359145 Steering valve 375031 Hydraulic cylinder Hydraulic oil tank Steering system From 42520907 Offset drum 381217 Direction control valve 380780 Direction control valve Brake system Electrical equipment Electric battery switch Instrument box Instrument panel, main Speed and frequency, sensors Instrument panel, upper left Instrument panel, upper right Instrument panel, lower left Instrument panel, lower right Instrument panel, relay, fuses Emergency stop panel Driving lights Direction & licenseplate light Working lights with/without Rops Working lights, cab Working lights, Xenon lamp Protection cover, Head light Rotating beacon Tachograph Drivers platform Drivers platform, for cab Drivers seat, turn-over Up to 42520933 Drivers seat, turn-over From 42520934 Drivers seat turn-over in cab Up to 42520933 Drivers seat, turn-over in cab From 42520934 359918 Steering column Up to 42520933 391163 Steering column From 42520934 Cross sliding Controls Cross sliding Carrier Forward and reverse control Speed limiter Option Engine control Rear mirror Rops/fops Cab, interior Cab, screens Cab, inside panels Cab, wipers, right side Cab, wipers, front and rear Cab, door, left side Cab, door, left side (3-split) Cab, heater and, fan system 385770 Heater unit Cab, roof mounted, electrical switches Cab Interior Cab Screens Cab Inside panels Cab, water tank wipers Cab, sun curtain, first aid kit, int mirror Exterior rear mirrors Radio and cassette/cd player Plates and decals Standard equipment Compaction meter Edge cutter Edge cutter Hydraulics without offset Edge cutter Hydraulics with offset Edge cutter Sprinkler system Eyelet SMV sign Tool equipment Air conditioner assembly Condensor assembly 385587 Heater/AC unit Compressor assembly Roof hatch Asphalt temperature meter

1

2

3

4

5

6

7

7

8

9

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
1	937800		Valve
2	937801		Coil
3	937802		Nut incl seal
4	937803		Screw
5	Notused		Not used on this model
6	937805		Orifice
7	937806		Overcenter valve
8	937807		Shuttle valve
9	937808		Copper washer
10	937809		Plug
11	937810		O-ring

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
