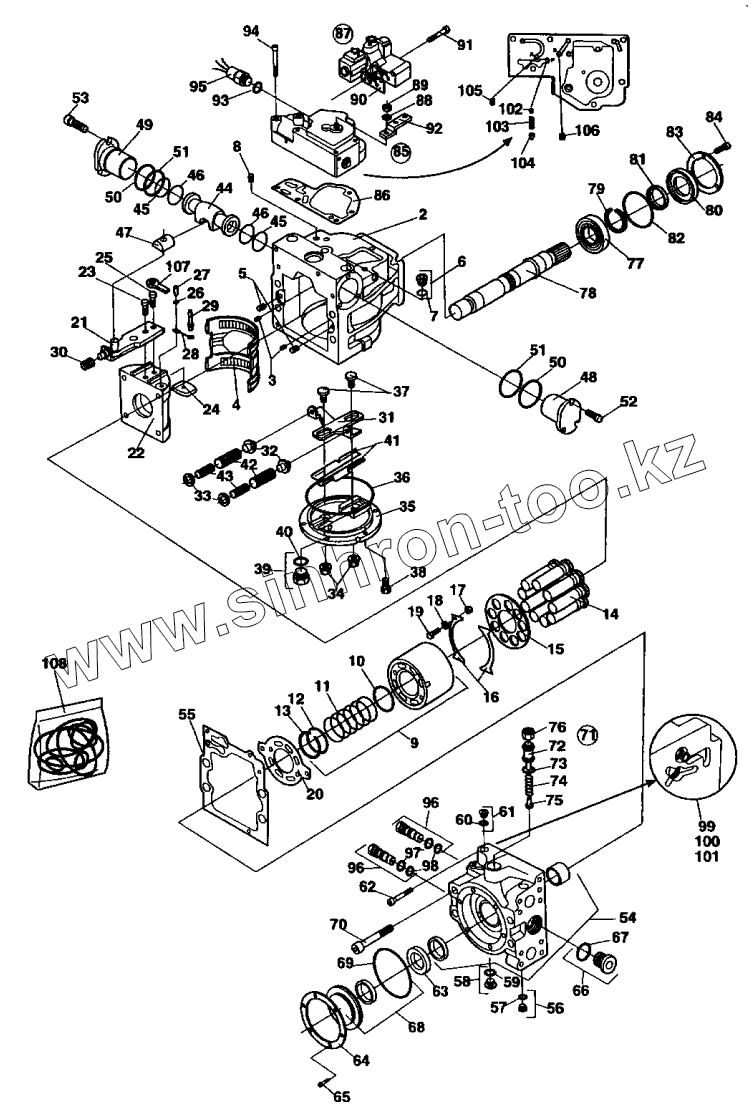

Каталог запасных частей к технике: DYNAPAC Dynapac CC422. 359142 Hydraulic pump, propulsion
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
46
47
48
49
50
50
51
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
87
87
88
89
90
91
92
93
94
95
96
96
97
98
99
100
101
102
103
104
105
106
107
108
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 936546 | Housing | |
| 3 | 909374 | Pin | |
| 4 | 901452 | Bearing | |
| 5 | 813822 | Pin | |
| 6 | 908432 | Plug | |
| 7 | 923087 | O-ring | |
| 8 | 901454 | Filter element | |
| 9 | 901455 | Cylinder block, cpl | |
| 10 | 935619 | Spacer | |
| 11 | 935620 | Spring | |
| 12 | 935621 | Spring retainer | |
| 13 | 935622 | Ring retainer | |
| 14 | 903570 | Piston | |
| 15 | 903571 | Pressure plate | |
| 16 | 901458 | Retainer guide | |
| 17 | 935856 | Spacer | |
| 18 | 909381 | Washer | |
| 19 | 935855 | Screw | |
| 20 | 936547 | Valve plate | |
| 21 | 909727 | Servo arm, cpl | |
| 22 | 903579 | Swash plate | |
| 23 | 909386 | Screw | |
| 24 | 909387 | Guide | |
| 25 | 909388 | Screw | |
| 26 | 909389 | Washer | |
| 27 | 909390 | Pin | |
| 28 | 909391 | Link | |
| 29 | 909392 | Pin | |
| 30 | 909393 | Spring | |
| 31 | 936549 | Lever | |
| 32 | 908377 | Spring support | |
| 33 | 908378 | Washer | |
| 34 | 909398 | Seal lock nut | |
| 35 | 936550 | Cover | |
| 36 | 936551 | O-ring | |
| 37 | 936552 | Guide post | |
| 38 | 936553 | Screw | |
| 39 | 902928 | Plug | |
| 40 | 901453 | O-ring | |
| 41 | 936554 | Guide assy, 1pair | |
| 42 | 908352 | Spring | |
| 43 | 937814 | Spring | |
| 44 | 937815 | Servo piston, cpl | |
| 45 | 936555 | O-ring | |
| 46 | 936556 | Seal ring | |
| 47 | 909407 | Guide | |
| 48 | 903580 | Servo | |
| 49 | 903580 | Servo | |
| 50 | 936557 | O-ring | |
| 51 | 936558 | O-ring | |
| 52 | 936559 | Screw | |
| 53 | 936559 | Screw | |
| 54 | 937816 | End cap, cpl | |
| 55 | 936561 | Gasket | |
| 56 | 358388 | Plug | |
| 57 | 923087 | O-ring | |
| 58 | 908432 | Plug | |
| 59 | 923087 | O-ring | |
| 60 | 908432 | Plug | |
| 61 | 923087 | O-ring | |
| 62 | 936562 | Screw | |
| 63 | 936565 | Spacer | |
| 64 | 935857 | Retaining plate | |
| 65 | 936566 | Screw | |
| 66 | 936567 | Plug, cpl | |
| 67 | 936568 | O-ring | |
| 68 | 909648 | Cover, cpl | |
| 69 | 937150 | O-ring | |
| 70 | 937817 | Screw | |
| 71 | 936583 | Pressure relief valve, cpl | |
| 72 | 903574 | Screw | |
| 73 | 813618 | O-ring | |
| 74 | 901463 | Spring | |
| 75 | 901464 | Valve cone | |
| 76 | 902959 | Nut | |
| 77 | 901465 | Bearing | |
| 78 | 901466 | Shaft | |
| 79 | 901467 | Ring | |
| 80 | 903575 | Seal carrier | |
| 81 | 935632 | Seal | |
| 82 | 935633 | O-ring | |
| 83 | 935634 | Retainer plate | |
| 84 | 908773 | Screw | |
| 85 | 936288 | Control valve, cpl | |
| 86 | 936576 | Gasket | |
| 87 | 936577 | Solenoid valve, cpl | |
| 87 | 909641 | Solenoid valve | |
| 87 | 909642 | Solenoid | |
| 87 | 909643 | Seal kit | |
| 88 | 909428 | Washer | |
| 89 | 909429 | Nut | |
| 90 | 909430 | Gasket | |
| 91 | 909431 | Screw | |
| 92 | 909432 | Control lever | |
| 93 | 909433 | O-ring | |
| 94 | 909434 | Screw | |
| 95 | 909367 | Neutral start switch | |
| 96 | 212339 | Valve | |
| 97 | 813611 | O-ring | |
| 98 | 936579 | O-ring | |
| 99 | 901475 | Valve | |
| 100 | 909349 | O-ring | |
| 101 | 901476 | Plug | |
| 102 | 909435 | Orifice | |
| 103 | 909436 | Spring | |
| 104 | 908448 | Spring retainer | |
| 105 | 908439 | Orifice | |
| 106 | 908439 | Orifice | |
| 107 | 936580 | Link | |
| 108 | 935605 | Seal kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
